960
7. Draw back the slide part of the hammer swiftly to facilitate the removal of the
swinging arm to rocker sleeve.
8. Manoeuvre the drag link and rocker assembly out of the swinging arm.
The drag link will only fit to one end of the rocker.
Note that the drag link is fitted to the rocker with the letter L, on one side of the drag
link, facing the left hand side of the motorcycle for installation.
9. If required, remove the fixing securing the drag link to the rocker and remove the
drag link. Discard the flanged lock nut.
10. Fit service tool T3880513 to the drag link, fully engaging the threads.
11. Fit service tool T3880208 to service tool T3880513, fully engaging the threads.
12. Draw back the slide part of the hammer swiftly to facilitate the removal of the rocker
to drag link sleeve.

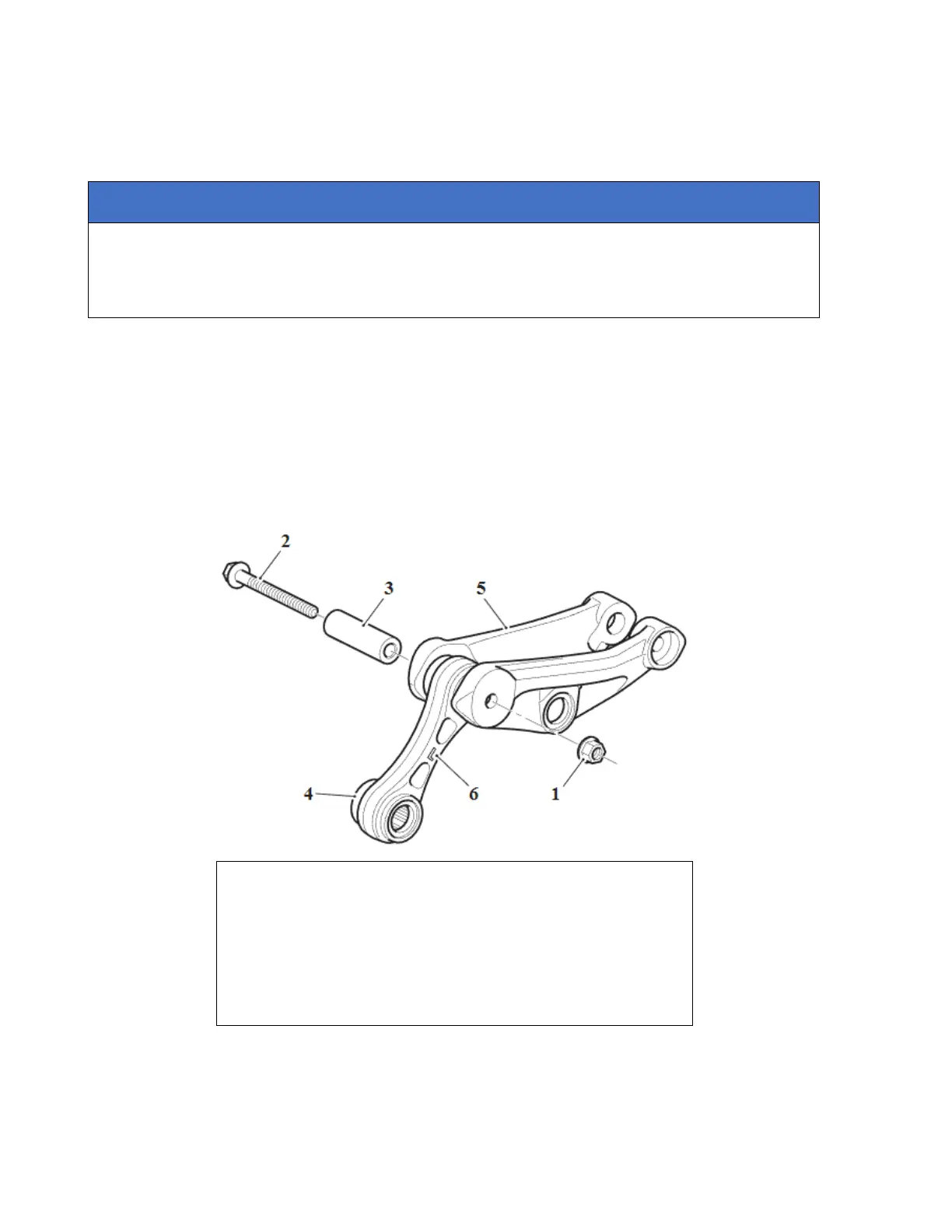

1. Flanged locknut
2. Bolt
3. Sleeve
4. Drag link
5. Rocker
6. Letter L
