Drag Link Brackets
1. Remove the swinging arm (see Swinging Arm - Removal).
2. Remove the fixing securing the drag link brackets to the upper crankcase. Discard the
flanged lock nut.
3. Remove the fixings securing the drag link brackets to the lower crankcase and
remove the brackets.

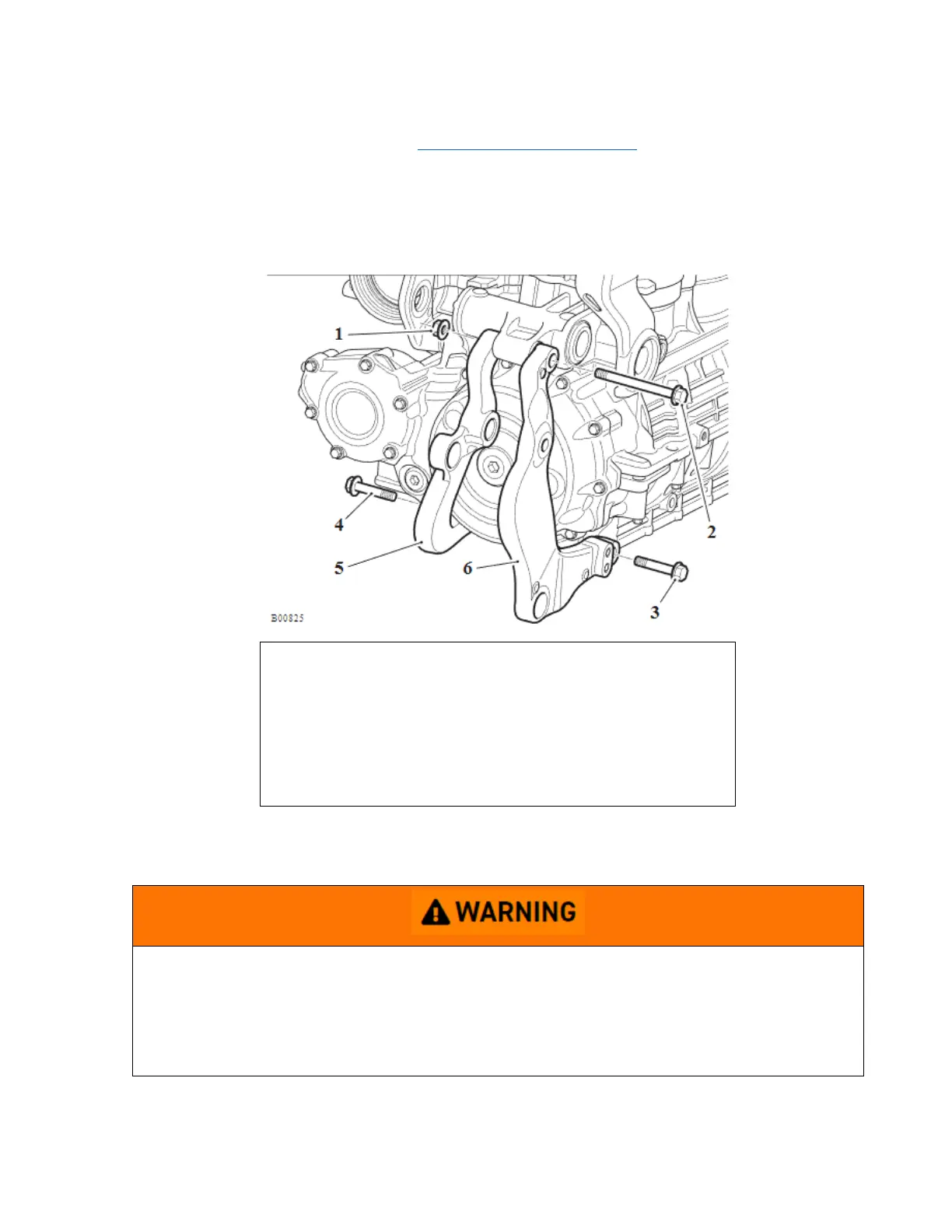

1. Flanged locknut
2. Bolt
3. Fixing (right hand bracket)
4. Fixing (left hand bracket)
5. Drag link left hand bracket
6. Drag link right hand bracket
Rear Suspension Linkage Bearings – Removal
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
