General Information
25

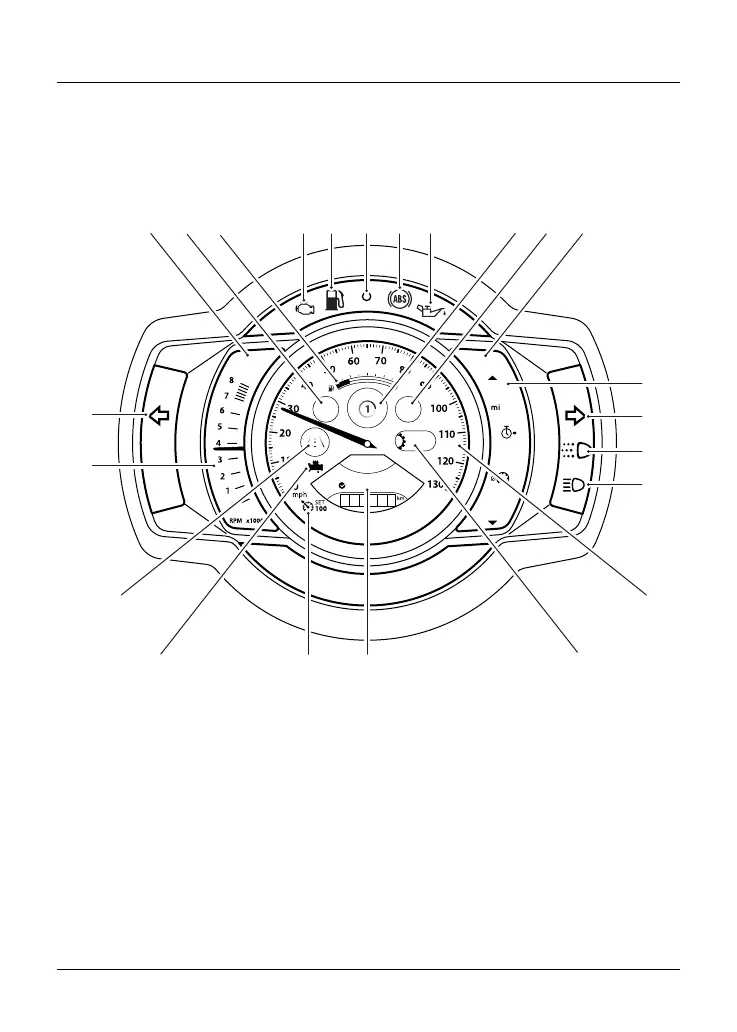

Instruments Panel Layout
There are two different themes available on the instrument display. Not all
instrument features are available on all models.
Quartz Theme
25:20
hh:mm
02:55
9999
15:53
mph
997 4 82
Trip 1
HOLD TO RESET
N
12.4
°
C
13
14
15
4 56
78
23
3
9
12
10
1819
22
21
20
16
12
17
11
1. Ambient air temperature
2. Warning light
3. Fuel gauge
4. Engine management Malfunction Indicator
Light (MIL)
5. Fuel level low warning light
6. Alarm/immobiliser status indicator light
(alarm is an accessory kit)
7. ABS warning light
8. Oil pressure warning light
9. Information tray symbol/Riding mode
symbol
10. Warning light
11. Clock
12. Right hand side display panel
13. Right hand indicator
14. Daytime Running Light (DRL) (if fitted)
15. High beam warning light
16. Speedometer
17. Gear position symbol
18. Information tray
19. Cruise control SET indicator
20. Heated grips status
21. Current riding mode
22. Tachometer/Left hand side display panel
23. Left hand indicator
