Triumph Scrambler 1200 XE User Manual

Maintenance and Adjustment
127
Clutch
The motorcycle is equipped with a
cable-operated clutch.
If the clutch lever has excessive free
play, the clutch may not disengage
fully. This will cause difficulty in shifting
gear and selecting neutral. This may
cause the engine to stall and make the
motorcycle difficult to control.
Conversely, if the clutch lever has
insufficient free play the clutch may
not engage fully, causing the clutch to
slip, which will reduce performance and
cause premature clutch wear.
Clutch lever free play must be
checked in accordance with scheduled
maintenance requirements.
Clutch Inspection
Check that there is 0.08 - 0.12 in (2 -
3 mm) clutch lever free play at the lever.
If there is an incorrect amount of free
play, adjustments must be made.
Clutch Adjustment
To adjust the clutch:
• Turn the adjuster sleeve until the
correct amount of clutch lever free
play is achieved.
• Check that there is 0.08 - 0.12 in (2
- 3 mm) clutch lever free play at the
lever.
• If there is an incorrect amount of
free play, adjustments must be
made.

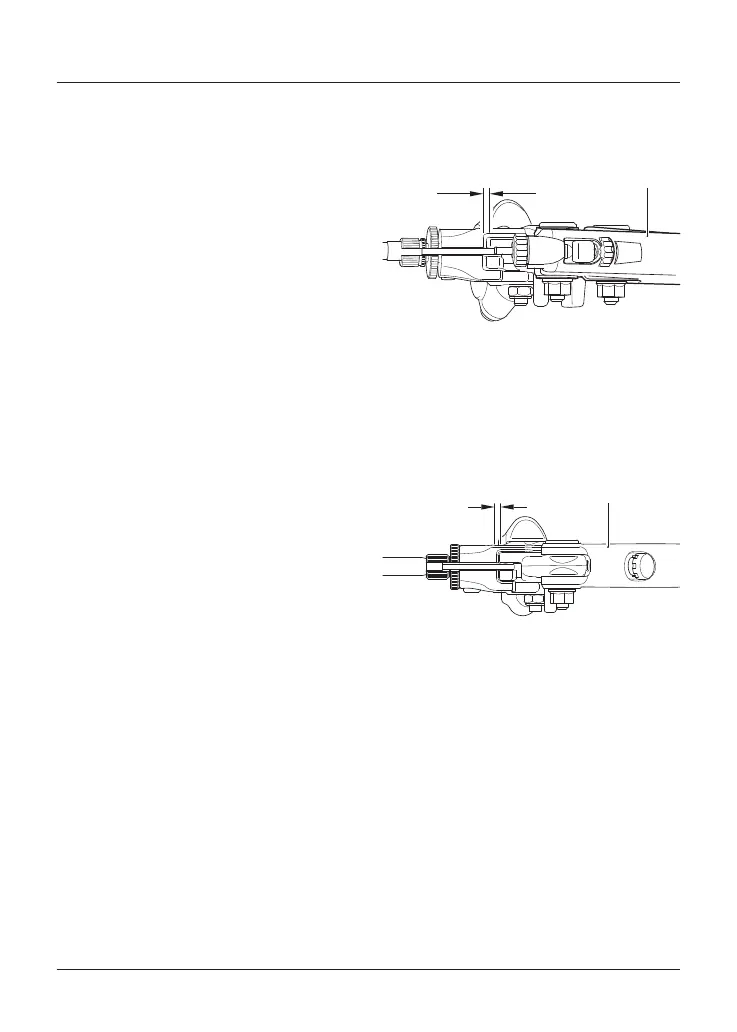

Scrambler 1200 Steve McQueen Edition
and Scrambler 1200 XE
1
2
1. Correct clearance 0.08 - 0.12 in (2 - 3 mm)
2. Clutch lever
Scrambler 1200 XC
12
1. Correct clearance 0.08 - 0.12 in (2 - 3 mm)
2. Clutch lever
• If correct adjustment cannot be
made using the lever adjuster, use
the cable adjuster at the lower end
of the cable.
• Loosen the adjuster lock nut.
• Turn the outer cable adjuster to give
0.08 - 0.12 in (2 - 3 mm) of free play
at the clutch lever.

Triumph Scrambler 1200 XE Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	11.0:1
Transmission	6-speed
Front Tyre	90/90-21
Rear Tyre	150/70 R17
Seat Height	870 mm
Fuel Capacity	16 L
Dry Weight	207 kg
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	89bhp (66.2kW) @ 7, 400rpm
Max Torque	110 Nm
Final Drive	Chain
Frame	Tubular steel
Front Suspension	250mm travel
Rear Suspension	250mm rear wheel travel
Front Brakes	Brembo 4-piston radial monobloc calipers, ABS
Rear Brakes	Single 255 mm disc, Brembo 2-piston
Front Wheel	21 x 2.15 in
Rear Wheel	17 x 4.25 in
