Triumph Street Twin User Manual

Maintenance and Adjustment
112

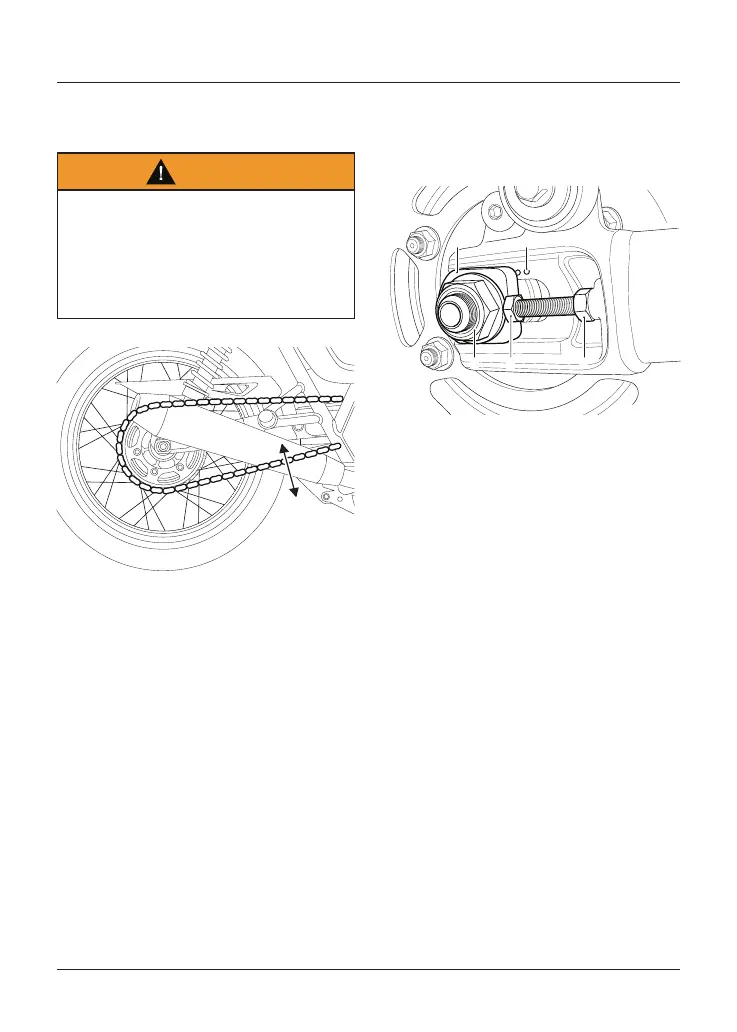

Drive Chain Free Movement
Inspection
Warning
Before starting work, make sure
the motorcycle is stabilised and
adequately supported.
This will help prevent it from falling
and causing personal injury and/or
damage to the motorcycle.
1
1. Maximum movement position
To inspect the drive chain free
movement:
• Place the motorcycle on a level
surface and hold it in an upright
position with no weight on it.
• Rotate the rear wheel by pushing
the motorcycle to find the position
where the drive chain is tightest,
and measure the vertical movement
of the drive chain midway between
the sprockets.
Drive Chain Free Movement
Adjustment
The vertical movement of the drive
chain must be in the range 20 - 30 mm.
45
1 2 3
1. Rear wheel spindle nut
2. Adjuster bolt
3. Adjuster bolt lock nut
4. Adjuster markings
5. Spindle adjuster
If the drive chain free movement
measurement is incorrect, adjustments
must be made as follows:
• Loosen the wheel spindle nut.
• Loosen the lock nuts on both the
left hand and right hand drive chain
adjuster bolts.
• Move both adjusters by an equal
amount using the adjuster markings
as a guideline.
• Turn the adjuster bolts clockwise to
increase drive chain free movement
and anticlockwise to reduce drive
chain free movement.
• When the correct amount of drive
chain free movement has been set,
push the wheel into firm contact
with the adjusters.

Triumph Street Twin Specifications

General

Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Displacement	900 cc
Bore x Stroke	84.6 x 80 mm
Compression Ratio	11.0:1
Max Torque	80 Nm @ 3, 800 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Gearbox	5-speed
Frame	Tubular steel, twin cradle
Front Tire	100/90-18
Rear Tire	150/70 R17
Dry Weight	198 kg
Wet Weight	216 kg
Fuel Consumption	4.1 l/100 km
CO2 Emissions	93 g/km
Max Power	65 PS (64 bhp) @ 7, 500 rpm
Exhaust	Brushed 2 into 2 exhaust system with twin brushed silencers
Front Suspension	41mm forks
Rear Suspension	Twin shocks with adjustable preload
Front Brakes	Single 310mm disc, Nissin 2-piston floating caliper
Rear Brakes	Single 255mm disc, Nissin 2-piston floating caliper
Front Wheel	Cast aluminium alloy, 18 x 2.75 in
Rear Wheel	Cast aluminium alloy, 17 x 4.25 in
Seat Height	765 mm
Fuel Tank Capacity	12L
Width (Handlebars)	780 mm
Wheelbase	1450 mm
Rake	25.1 °
Trail	102.4 mm
