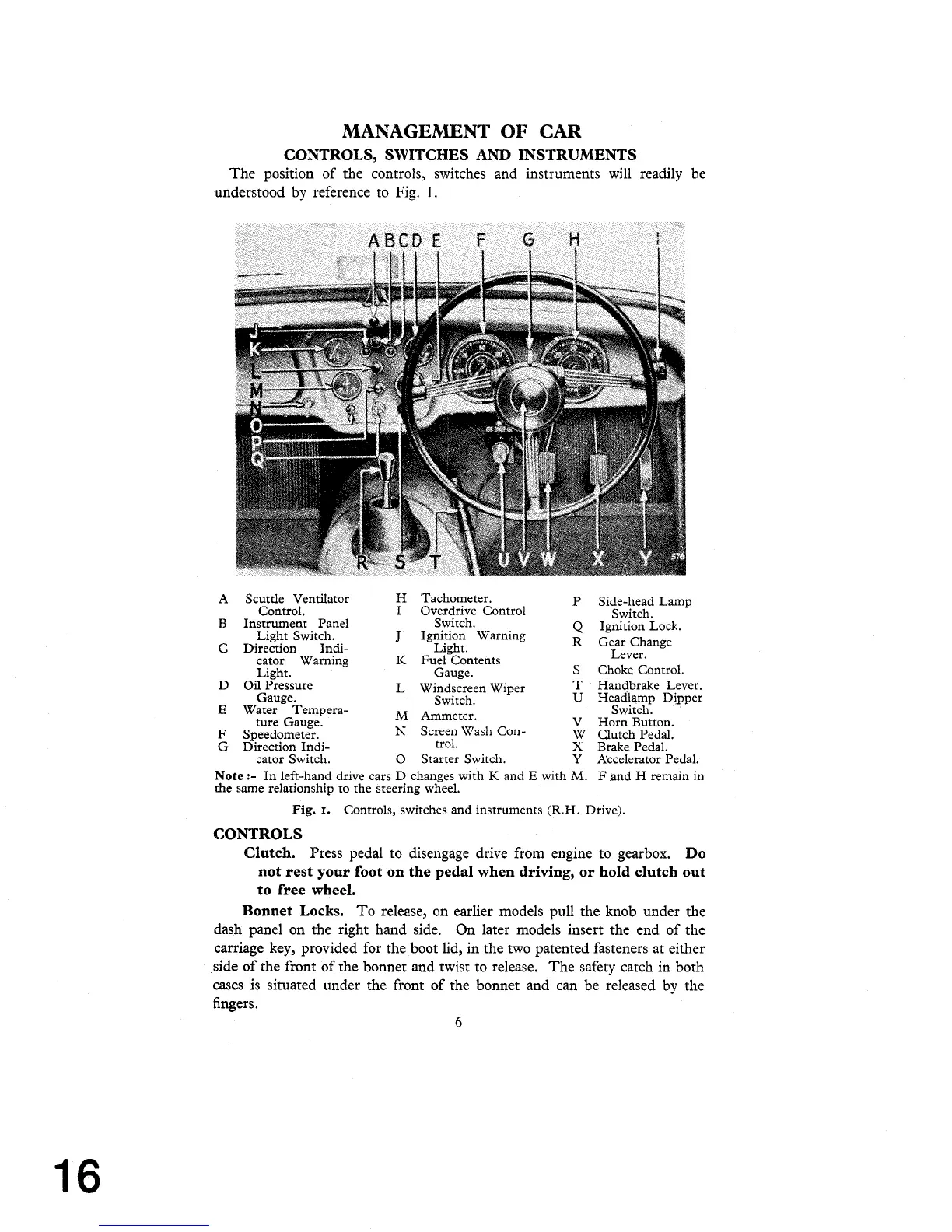

MANAGEMENT
OF
CAR
CONTROLS, SWITCHES AND INSTRUMENTS
The position of the controls, switches and instruments will readily be
understood by reference
to
Fig.
l.
Scuttle Ventilator
Control.
Instrument Panel
Light Switch.
Direction Indi-
cator Warning
Light.
Oil Pressure
Gauge.
Water Tempera-
ture Gauge.
Speedometer.
Direction Indi-
cator Switch.
Tachometer.
Overdrive Control
Switch.
Ignition Warning
Light.
Fuel Contents
Gauge.
windscreen Wiper
Switch.
Ammeter.
Screen
Wash Con-
trol.
Starter Switch.
Side-head Lamp
Switch.
Ignition Lock.
Gear Change
Lever.
Choke
Control.
Handbrake Lever.
Headlamp Dipper
Switch.
Horn Button.
Clutch Pedal.
Brake Pedal.
Accelerator Pedal.
Note
:-
In left-hand drive cars
D
changes with
K
and
E
with
M.
F and H remain in
the same relationship to the steering wheel.
Fig.
I.
Controls, switches and instruments (R.H. Drive).
CONTROLS
Clutch.
Press pedal to disengage drive from engine to gearbox.
Do
not rest your foot on the pedal when driving, or hold clutch out
to free wheel.
Bonnet Locks.
To relezse, on earlier models pull the knob under the
dash panel on the right hand side. On later models insert the end of the
carriage key, provided for the boot lid, in the two patented fasteners at either
side of the front of the bonnet and twist to release. The safety catch in both
cases is situated under the front of the bonnet and can be released by the
fingers.
6
