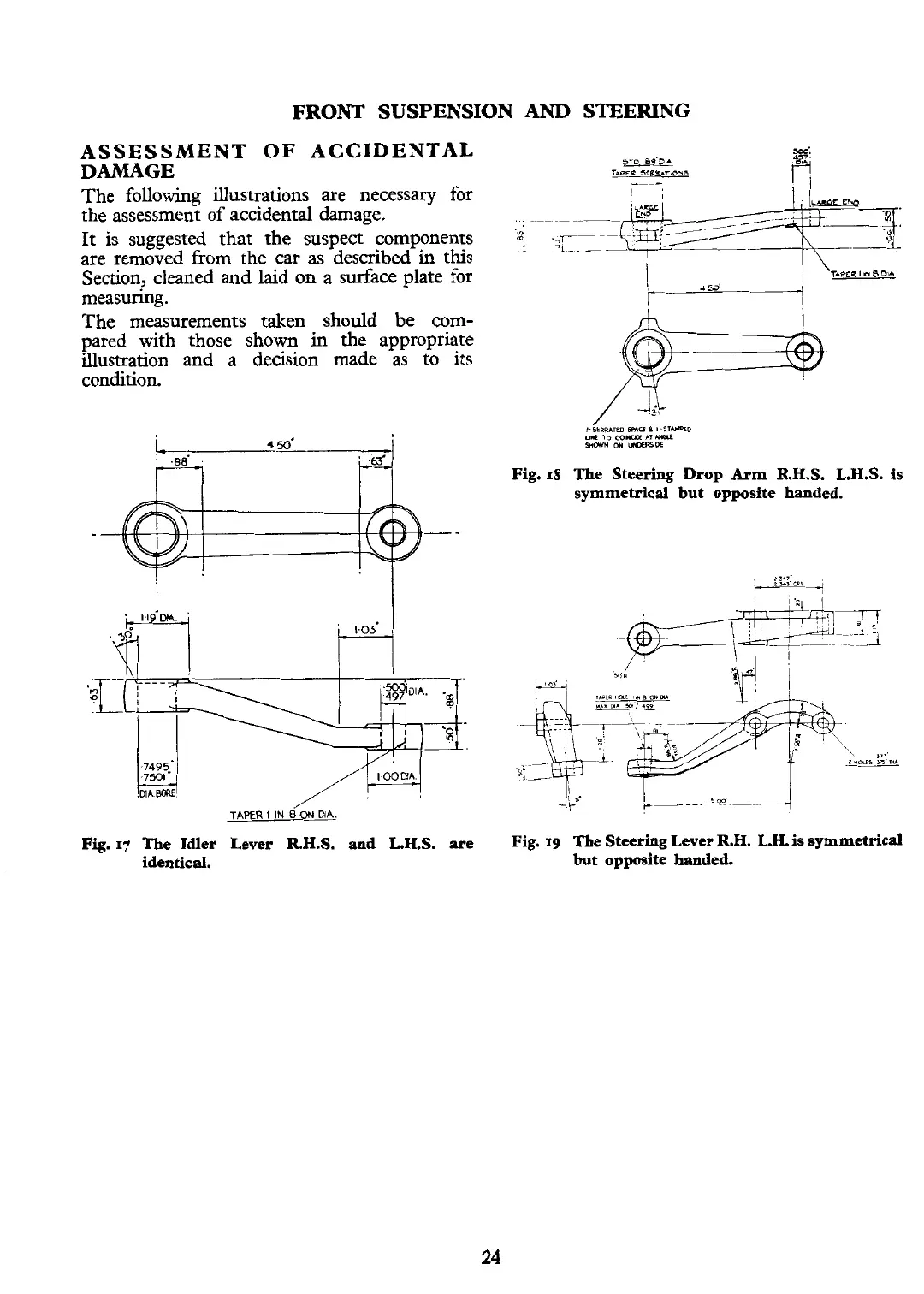

ASSESSMENT OF ACCIDENTAL
DAMAGE
The following illustrations are necessary for
the assessment of accidental damage.
It
is suggested that the suspect components
are removed from the car as described
in
this
Section, cleaned and laid on a surface plate for
measuring.
The measurements taken should be com-
pared with those shown in the appropriate
illustration and a decision made as to its
condition.
FRONT SUSPENSION
AND
STEERING
-
identical.
.-
TAPER
I
IN
6CU
DIA.
Fig.
17
The Idler Lever R.H.S.
and
L.H.S.
are
Fig.
IS
The Steering Drop Arm R.H.S. L.H.S. is
symmetrical but opposite handed.
Fig.
19
The Steering Lever R.H. L.H. is symmetrical
but ouwsite handed.
