BODY

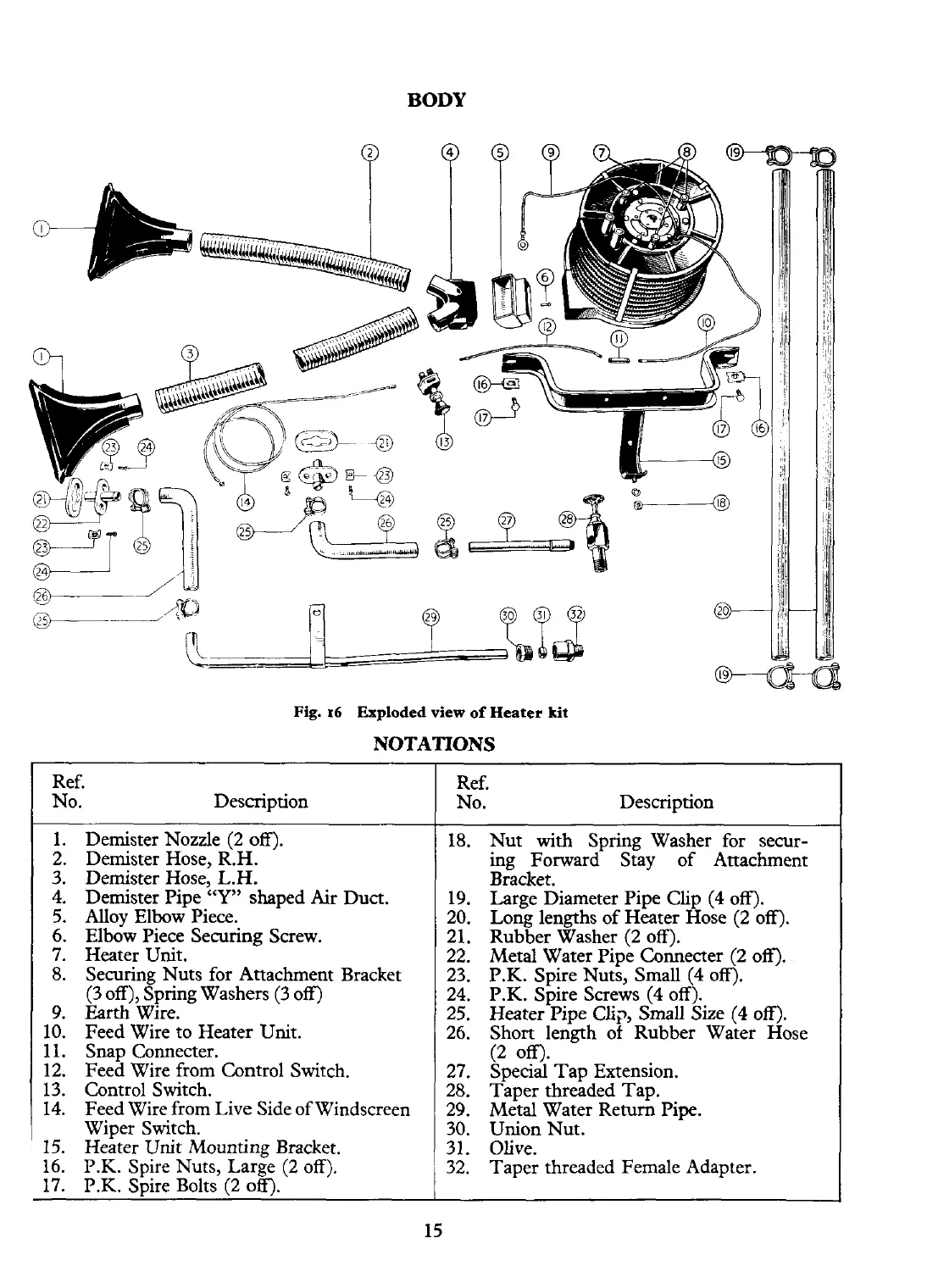

Fig.
16
Exploded view of Heater kit
NOTATIONS
Ref.
No. Description
Demister Nozzle (2
off).
Demister Hose, R.H.
Demister Hose, L.H.
Demister Pipe
"Y"
shaped Air Duct.
Alloy Elbow Piece.
Elbow Piece Securing Screw.
Heater Unit.
Securing Nuts for Attachment Bracket
(3 off), Spring Washers (3 off)
Earth Wire.
Feed Wire to Heater Unit.
Snap Connecter.
Feed Wire from Control Switch.
Control Switch.
Feed Wire from Live Side of Windscreen
Wi~er Switch.
~eker Unit Mounting Bracket.
P.K. Spire Nuts, Large (2 off).
P.K. Suire Bolts
(2
om.
Ref.
No. Description
18. Nut with Spring Washer for secur-
ing Forward Stay of Attachment
Bracket.
19. Large Diameter Pipe Clip (4 off).
20.
Long lengths of Heater Hose (2 off).
21. Rubber Washer
(2
off).
22. Metal Water Pipe Connecter (2 off).
23. P.K. Spire Nuts, Small (4 off).
24. P.K. Spire Screws (4 off).
25. Heater Pipe Clip, Small Size (4
off).
26. Short length of Rubber Water Hose
(2 off).
27. Special Tap Extension.
28. Taper threaded Tap.
29. Metal Water Return Pipe.
30.
Union Nut.
31.
Olive.
32.
Taper threaded Female Adapter.
