Triumph TR2 - Page 352

BRAKES

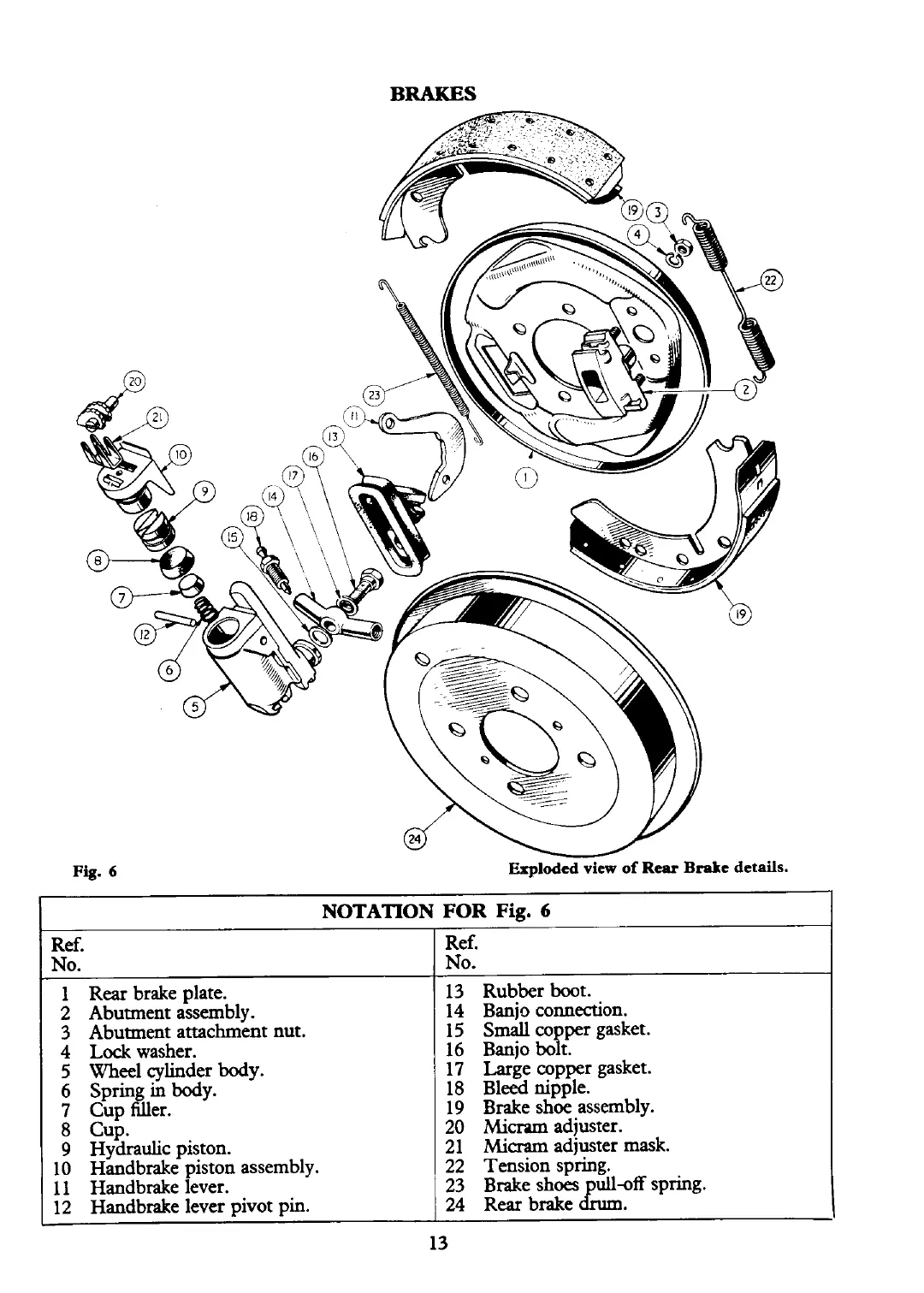

NOTATION FOR Fig. 6
Ref.
No.
Rear brake plate.
Abutment assembly.
Abutment attachment nut.
Lock washer.
Wheel cylinder
body.
Spring in body.
CUD filler.
cup.
Hydraulic piston.
Handbrake Diston assembly.
Handbrake iever.
Handbrake lever pivot pin.
Ref.
NO.
13 Rubber boot.
14 Banjo connection.
15 Small copper gasket.
16 Banjo bolt.
17 Large copper gasket.
18 Bleed nipple.
19 Brake shoe assembly.
20 Micnm adjuster.
21
Miaam adjuster mask.
22 Tension spring.
23 Brake shoes
ull-off spring.
24 Rear brake ‘l-um.
