BRAKES
NOTATION FOR
Fig.
8
1
Pedal
shaft cover assembly.
2 Clutch
pedal.
3
Brake pedal.
4 Rubber pad for pedals.
5 Pedal pivot bush.
6
Pedalshaft.
7 Supporting bracket for pedal shaft.
8 Lock washer.
9 Bolt securing brackets to shaft.
10
Pedal
return spring.
11 Lock washer.
12 Bolt securing pedal assembly to bulkhead.
13 Master cylinder support bracket.
14 Bolt securing pedal assembly and master
cylinder support bracket to bulkhead.
15 Lockwasher.
16
Nut securing pedal assembly and master
cylinder support bracket to bulkhead.
17 Clevis pin.
18 Double coil spring washer.
19
Plain
washer.
20 Split pin.
21
Jam
nut.
22
Pedal
limit stop.
Attach bracket to bulkhead utilising
four nuts and plain washers, these
nuts are left loose at this juncture.
(c)
Inside the car the pedal assembly is
further secured to the bulkhead by
two bolts and lock washers, these
bolts are fully tightened.
(d)
Under the bonnet, tighten the four
nuts mentioned in operation
(b).
Connect the two pipe lines to their
appropriate outlet ports and attach
pedal levers to master cylinder fork
end assemblies, utilising clevis pins.
(e)
Adjust pedal clearances as described on
page 4.
(f)
Replenish reservoir with Lockheed
Hydraulic Fluid.
(g)
Bleed and adjust clutch as described in
Clutch Section
"D
".
(h)
Bleed brakes as described on page
3.
(i)
Adjust brake shoes as described on
page
3.

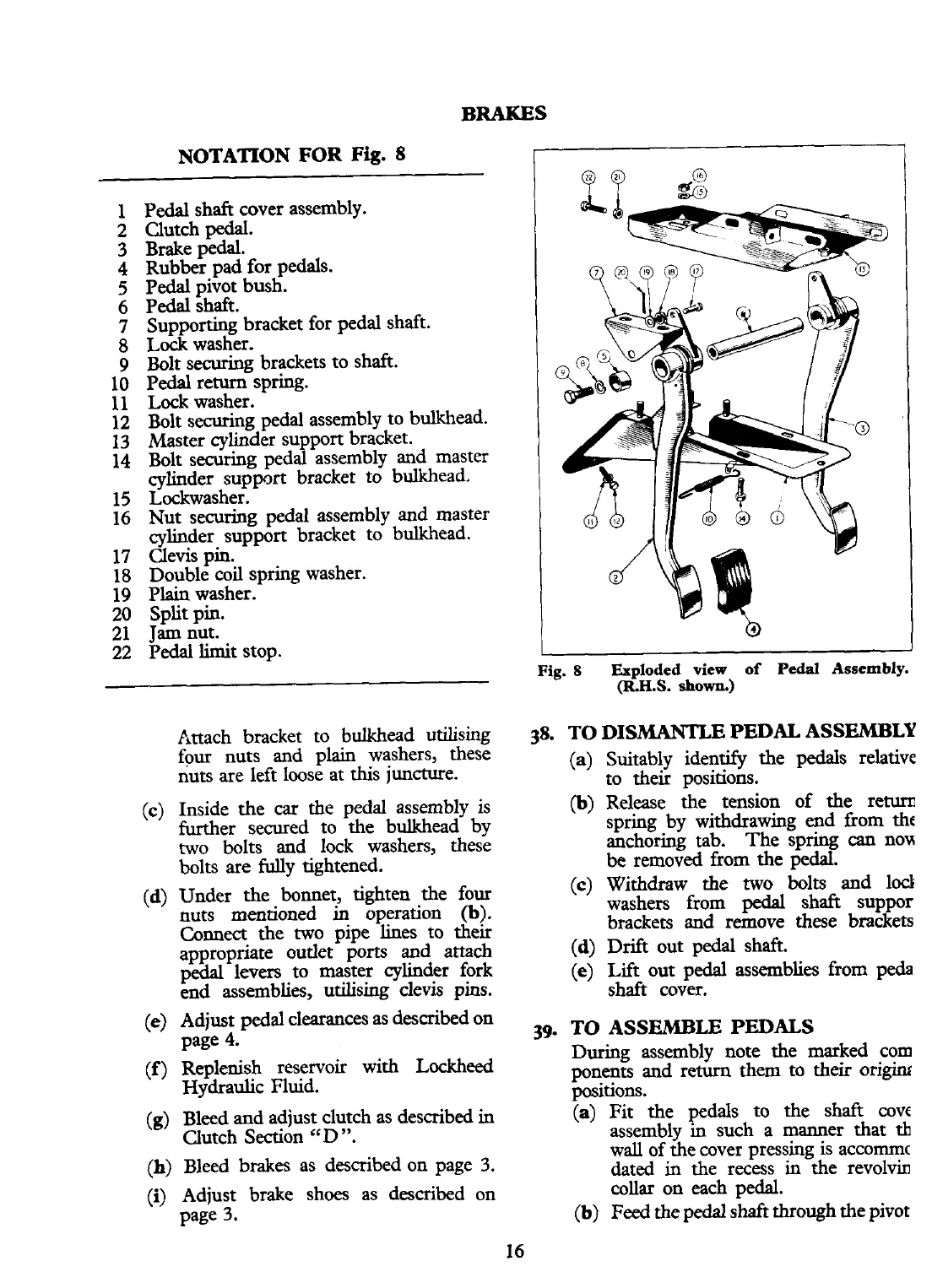

Fig.
8
Exploded view
of
Pedal
Assembly.
(R.H.S.
shown.)
38.
TO
DIShUNTLE PEDAL ASSEMBLY
(a)
Suitably identify the pedals relative
to their positions.
(b)
Release the tension of the return
spring by withdrawing end from thf
anchoring tab. The spring
can
noH
be
removed from the pedal.
(c)
Withdraw the two bolts and ld
washers from
pedal
shaft suppor
brackets and remove these brackets
(d)
Drift out pedal shaft.
~.
(e)
Lift out pedal assemblies from peda
shaft cover.
39.
TO
ASSElMBLE PEDALS
-
During assembly note the marked corn
ponents and return them to their origim
positions.
(a)
Fit the pedals to the shaft cove
assembly in such a manner that
th
wall of the cover pressing is accommc
dated in the recess in the revolvin
collar on
each
pedal.
(b)
Feed
the
pedal
shaft through the pivot
