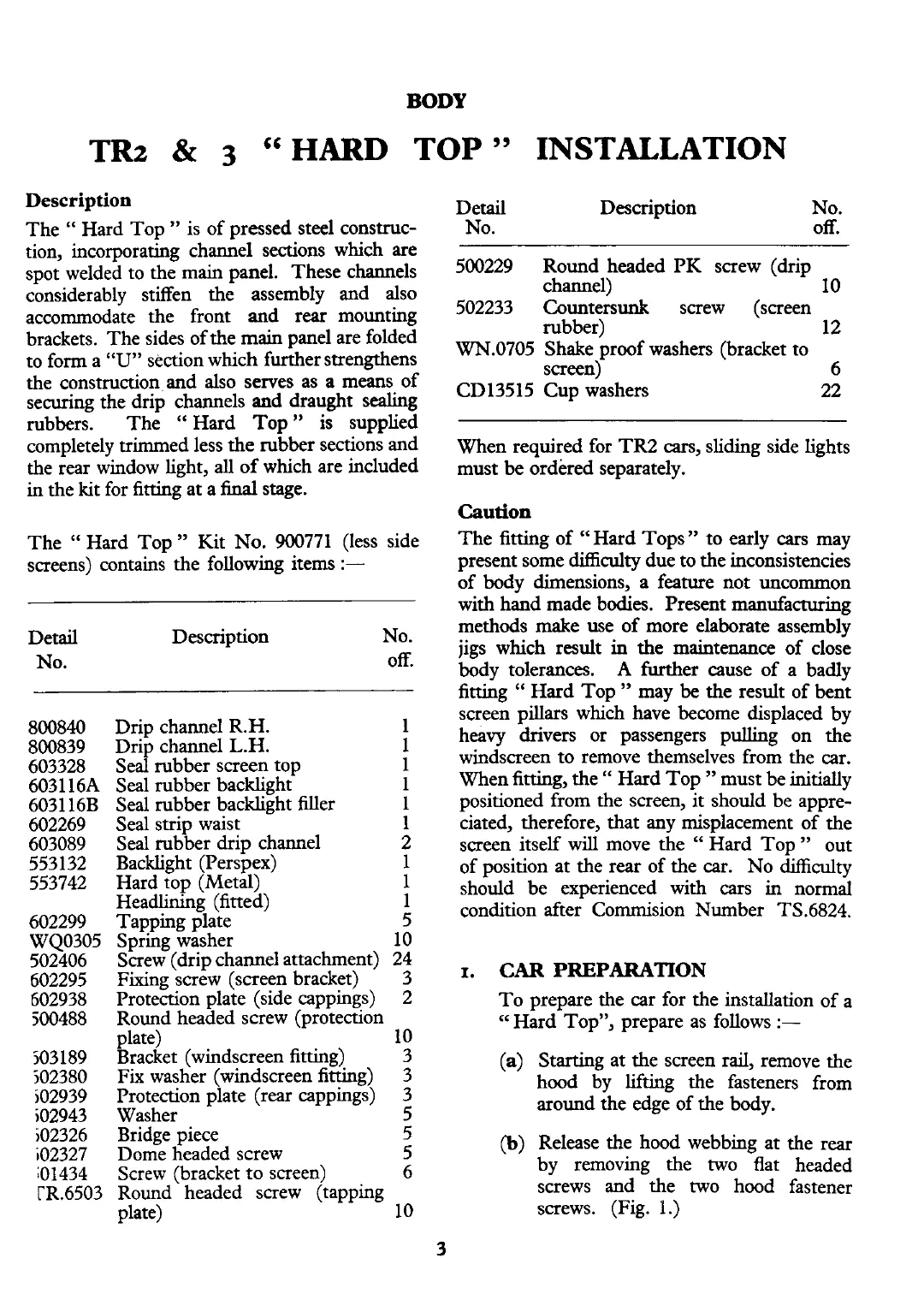

BODY
TR2
&
3
"HARD
TOP" INSTALLATION
Description
The
"
Hard Top
"
is of pressed steel construc-
tion, incorporating channel sections which are
spot welded to the main panel. These channels
considerably stiffen the assembly and also
accommodate the front and rear mounting
brackets. The sides of the
main
panel are folded
to form a
"U"
section which further strengthens
the construction and also serves as
a
means of
securing the drip channels and draught sealing
rubbers. The "Hard Top" is supplied
completely trimmed less the rubber sections and
the rear window light, all of which are included
in the kit for
fitting at a
final
stage.
The
"
Hard Top
"
Kit No. 900771 (less side
screens) contains the following items
:-
Detail Description No.
No.
off.
800840 Drip channel R.H. 1
800839 Drip channel
L.H.
1
603328 Seal rubber screen top 1
6031 16A Seal rubber backlight 1
6031 16B Seal rubber backlight filler
1
602269 Seal strip waist
1
603089 Seal rubber drip channel 2
553132 Backlight (Perspex) 1
553742 Hard top (Metal) 1
Headlining (fitted) 1
602299 Tapping plate 5
WQ0305 Spring washer 10
502406 Screw (drip channel attachment) 24
602295 Fixing screw (screen bracket) 3
602938 Protection plate (side cappings) 2
500488 Round headed screw (protection
plate) 10
503189 Bracket (windscreen fitting) 3
502380 Fix washer (windscreen fitting) 3
502939 Protection plate (rear cappings) 3
i02943 Washer 5
Detail
No.
Description
No.
off.
500229
Round headed PK screw (drip
channel)
10
502233 Countersunk screw (screen
rubber) 12
WN.0705 Shake proof washers (bracket to
screen)
6
CD13515 Cup washers 22
When required for
TR2
cars,
sliding side Lights
must be ordered separately.
Caution
The fitting of
"
Hard Tops
"
to early
cars
may
present some
difficulty
due to the inconsistencies
of body dimensions,
a
feature not uncommon
with hand made bodies. Present manufacturing
methods make use of more elaborate assembly
jigs which result
in
the maintenance of close
body tolerances.
A
further cause of a badly
fitting
"
Hard Top
"
may be the result of bent
screen pillars which have become displaced by
heavy drivers or passengers pulling on
the
windscreen to remove themselves from the car.
When fitting, the
"
Hard Top
"
must be initially
positioned from the screen, it should be appre-
ciated, therefore, that any misplacement of the
screen itself will move the
"
Hard Top
"
out
of position at the rear of the car. No
difficulty
should be experienced with cars in normal
condition after Commision Number TS.6824.
I.
CAR
PREPARATION
To prepare the car for the installation of a
cc
Hard Top", prepare as follows
:-
(a)
Starting at the screen rail, remove the
hood by lifting the fasteners from
around the edge of the body.
i02326 Bridge piece 5
102327 Dome headed screw 5
(b)
Release the hood webbing at the rear
i01434 Screw (bracket to screen) 6
by removing the two flat headed
rR.6503 Round headed screw (tapping
screws and the two hood fastener
plate) 10
screws. (Fig.
l.)
