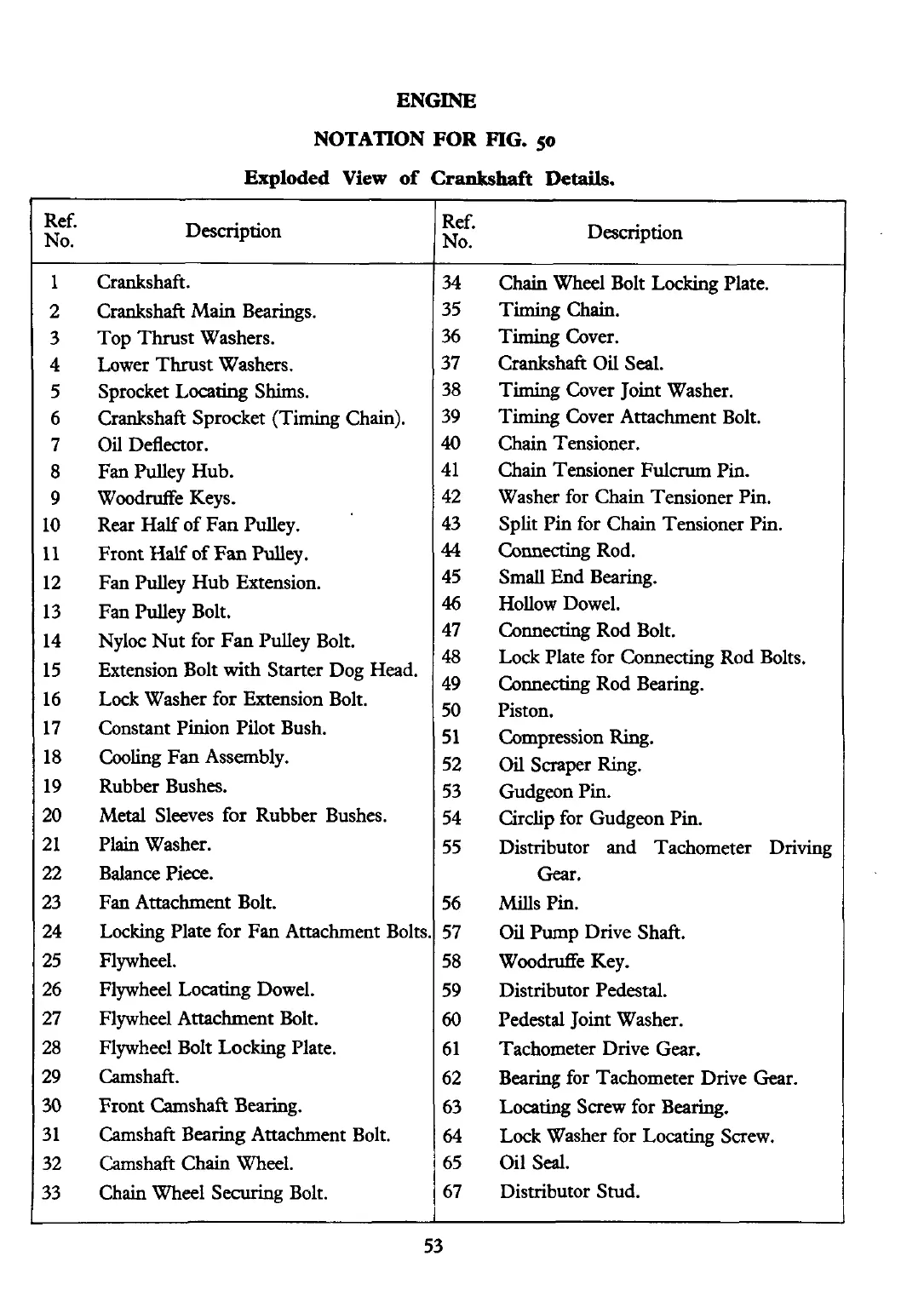

ENGINE
NOTATION FOR
FIG. 50
Exploded View of Crankshaft Details.
Ref.
No.
Description
Crankshaft.
Crankshaft Main Bearings.
Top Thrust Washers.
Lower Thrust Washers.
Sprocket
Locating Shims.
Crankshaft Sprocket (Timing Chain).
Oil Deflector.
Fan Pulley Hub.
WoodruRe Keys.
Rear Half of Fan Pulley.
Front
Half of Fan Pulley.
Fan Pulley Hub Extension.
Fan Pulley Bolt.
Nyloc Nut for Fan Pulley Bolt.
Extension Bolt
with Starter Dog Head.
Lock Washer for Extension Bolt.
Constant Pinion Pilot Bush.
Cooling Fan Assembly.
Rubber Bushes.
Metal Sleeves for Rubber Bushes.
Plain Washer.
Balance Piece.
Fan Attachment Bolt.
Locking Plate for Fan Attachment Bolts
Flywheel.
Flywheel Locating Dowel.
Flywheel Attachment Bolt.
Flywheel Bolt Locking Plate.
Camshaft.
Front Camshaft
Bearing.
Camshaft Bearing Attachment Bolt.
Camshaft Chain Wheel.
Chain Wheel Securing Bolt.
Ref.
No.
Description
Chain Wheel Bolt
Locking Plate.
Timing Chain.
Timing Cover.
Crankshaft Oil Seal.
Timing Cover Joint Washer.
Timing Cover Attachment Bolt.
Chain Tensioner.
Chain Tensioner Fulcrum Pin.
Washer for Chain Tensioner Pin.
Split Pin for Chain Tensioner Pin.
Connecting Rod.
Small End Bearing.
Hollow Dowel.
Connecting Rod Bolt.
Lock Plate for Connecting Rod Bolts.
Connecting Rod Bearing.
Piston.
Compression Ring.
Oil Scraper Ring.
Gudgeon Pin.
Circlip for Gudgeon Pin.
Distributor and Tachometer Driving
Gear.
Mills Pin.
Oil Pump Drive Shaft.
Woodruffe Key.
Distributor Pedestal.
Pedestal Joint Washer.
Tachometer Drive Gear.
Bearing for Tachometer Drive Gear.
Locating Screw for Bearing.
Lock Washer for Locating Screw.
Oil Seal.
Distributor Stud.
