COOLING
SYSTEM

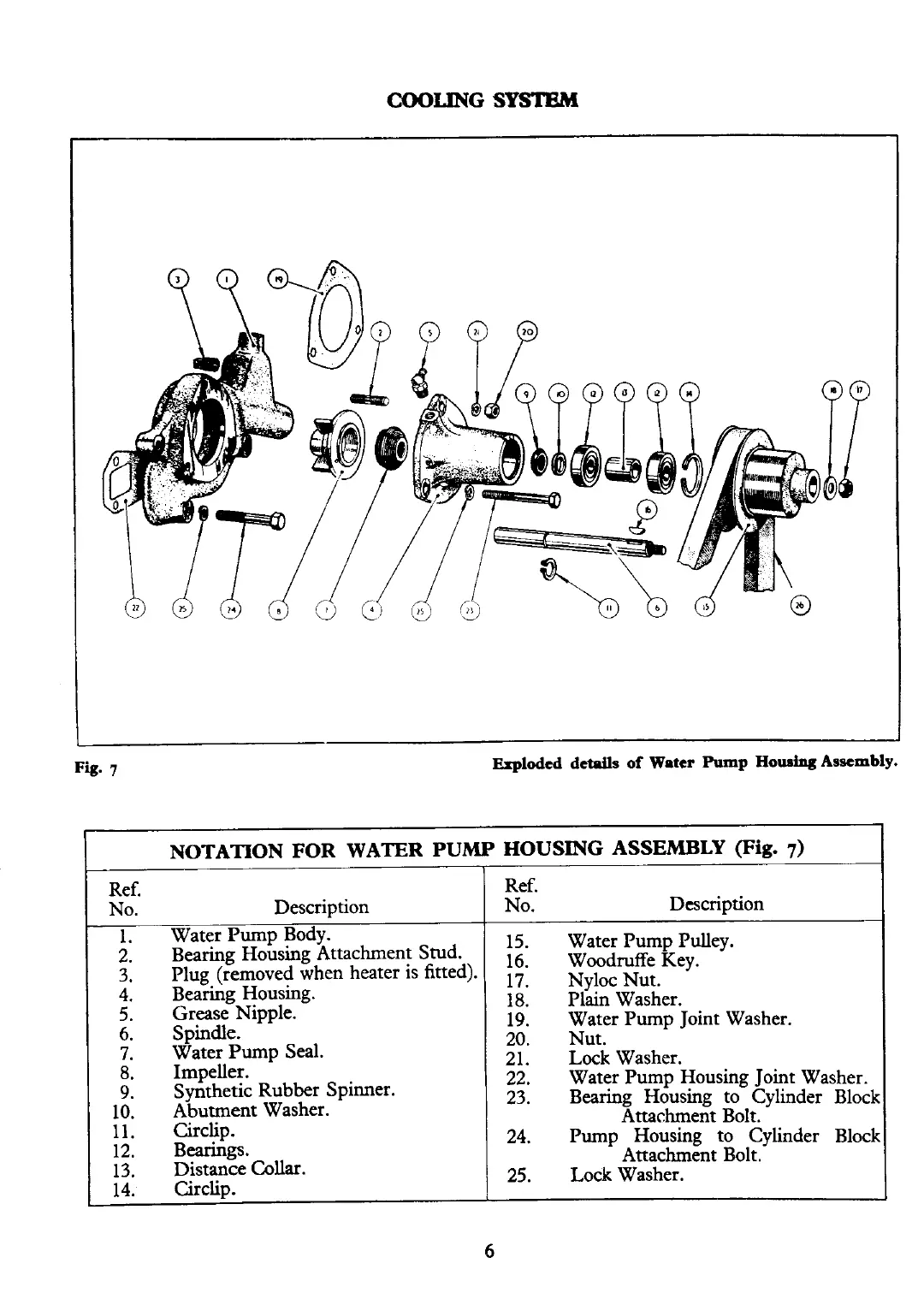

Fig.
7
Exploded details
of
Water
Pump
Housing
Assembly.
I
NOTATION FOR WATER
PUMP
HOUSING ASSEMBLY
(Fig.
7)
Ref.
I
No.
Description
Ref.
I
No.
Description
1. Water Pump Body.
2. Bearing Housing Attachment Stud.
3.
Plug (removed when heater is fitted).
4.
Bearing Housing.
5.
Grease Nipple.
6. Spindle.
7.
Water Pump Seal.
8.
Impeller.
9.
Synthetic Rubber Spinner.
10. Abutment Washer.
11. Circlip.
12. Bearings.
13. Distance Collar.
14.
-clip.
15. Water Pump Pulley.
16
17:
Nyloc
N~~.
18. Plain Washer.
19. Water Pump Joint Washer.
20. Nut.
21. Lock Washer.
22.
Water Pump Housing Joint Washer.
23.
Bearing Housing to Cylinder Block
Attachment Bolt.
24.
Pump Housing to Cylinder Block
Attachment Bolt.
25. Lock Washer.
