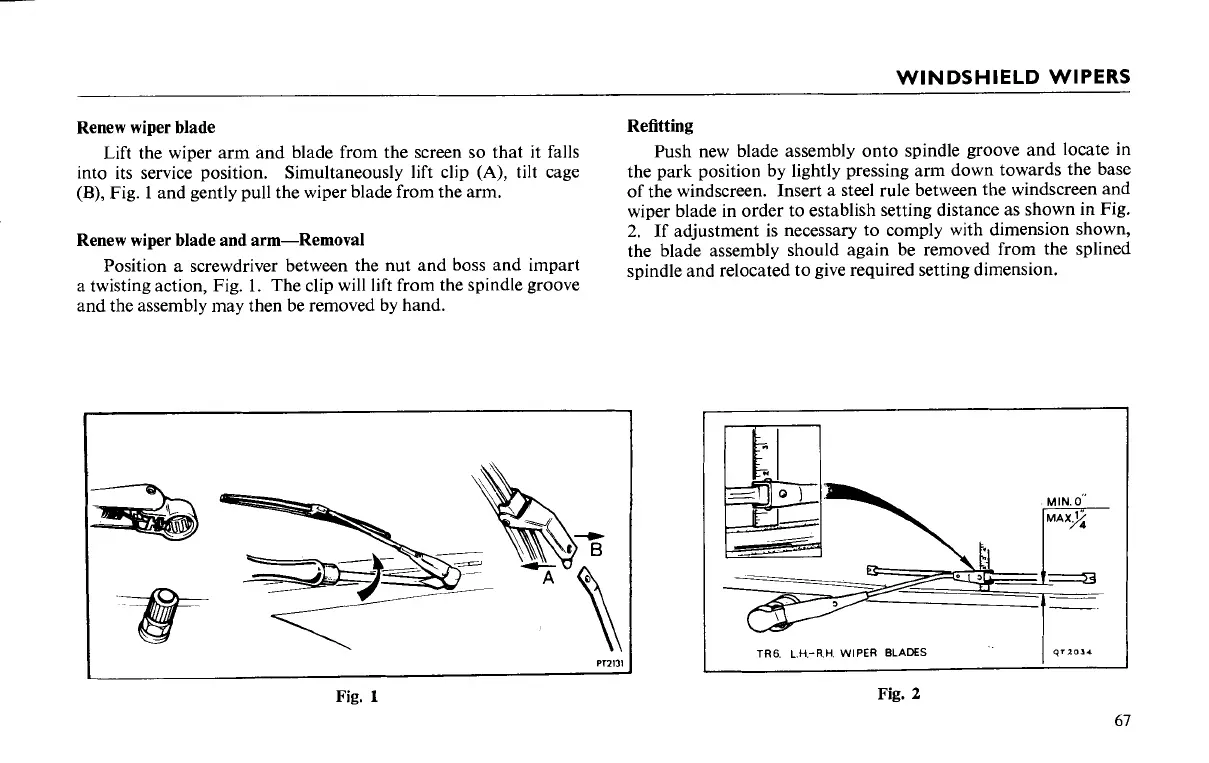

Renew wiper blade
Lift the wiper arm and blade from the screen so that it falls
into its service position. Simultaneously lift clip
(A),
tilt cage
(B),
Fig.
1
and gently pull the wiper blade from the arm.
t
I
Renew wiper blade and arm-Removal
Position
a
screwdriver between the nut and boss and impart
a twisting action, Fig.
1.
The clip will lift from the spindle groove
and the assembly may then be removed by hand.
WINDSHIELD WIPERS
I
PT2131
Fig.
1
Refitting
Push new blade assembly onto spindle groove and locate in
the park position by lightly pressing arm down towards the base
of the windscreen. Insert a steel rule between the windscreen and
wiper blade in order to establish setting distance as shown in Fig.
2.
If adjustment is necessary to comply with dimension shown,
the blade assembly should again be removed from the splined
spindle and relocated to give required setting dimension.
I
TR6.
L.H.-RH
WIPER
BLAMS
Fig.
2
67
