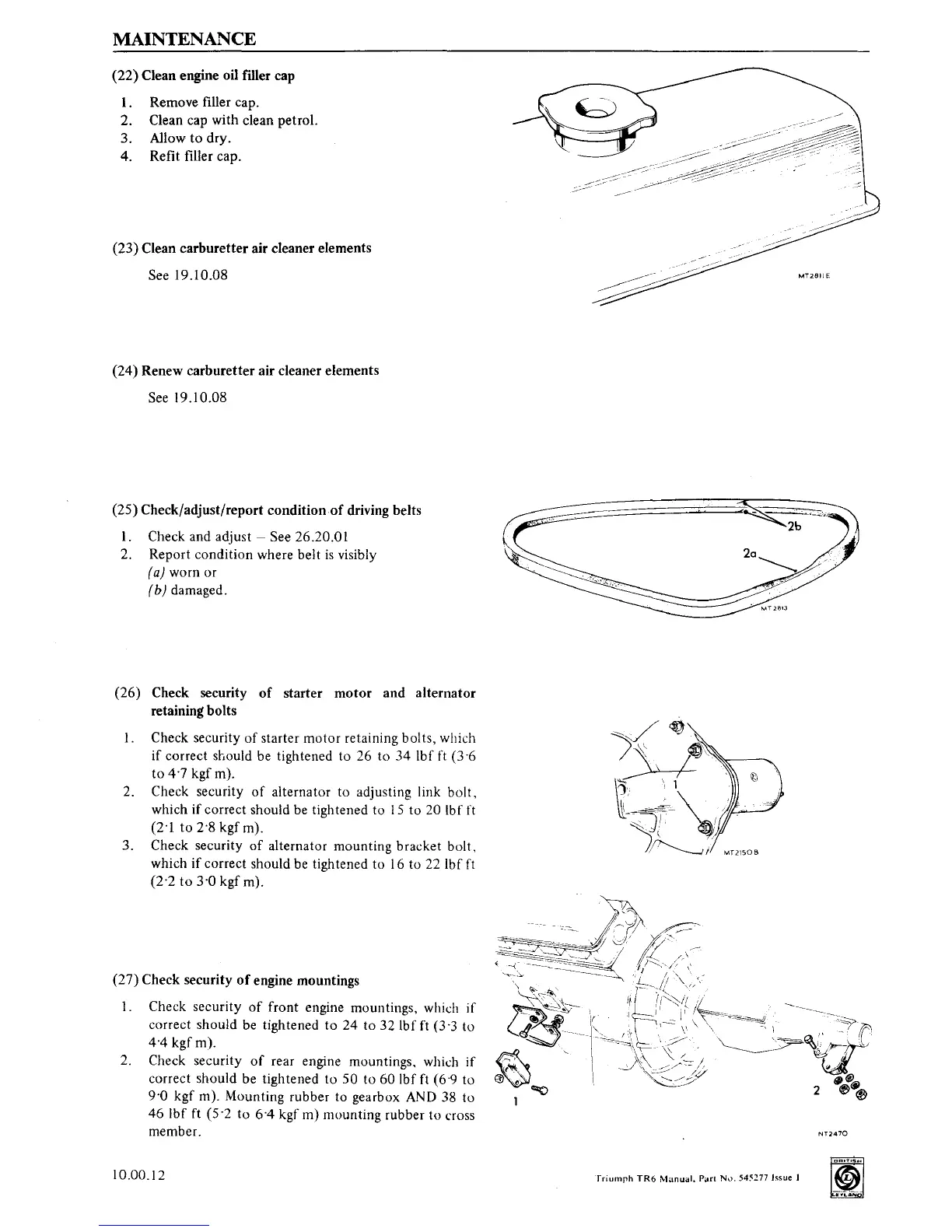

MAINTENANCE
(22)
Clean engine oil filler cap
1. Remove filler cap.
2. Clean cap with clean petrol.
3. Allow
to
dry.
4. Refit filler cap.
(23) Clean
carburetter
air cleaner elements
See 19.10.08
(24) Renew
carburetter
air cleaner elements
See 19.10.08
(25)
Check/adjust/report
condition
of
driving belts
1.
Check and adjust - See 26.20.01
2. Report condition where belt
is
visibly
(a) worn
or
(b)
damaged.
(26)
Check security
of
starter
motor
and
alternator
retaining bolts
I.
Check security
of
starter
motor
retaining bolts, which
if
correct should be tightened to 26
to
34
lbf
ft (3·6
to
4·7 kgf m).
2. Check security
of
alternator to adjusting link
bolt,
which
if
correct should be tightened
to
IS
to
20 Ibf ft
(2·1
to
2·8 kgf m).
3. Check security
of
alternator mounting bracket bolt,
which
if
correct should be tightened
to
16 to 22
lbf
ft
(2·2
to
3'0
kgf m).
(27)
Check security
of
engine mountings
I. Check security
of
front engine mountings, which
if
correct should be tightened
to
24 to 32
lbf
ft (3·3 to
4-4
kgfm).
2. Check security
of
rear engine mountings, which
if
correct should be tightened
to
50 to 60 lbf ft (6·9 to
9·0
kgf
m). Mounting rubber to gearbox AND 38 to
46
Ibf ft (5·2
to
6-4 kgf m) mounting rubber to cross
member.
10.00.12
~2b~~
20
...
----......
."
~
NT247Q
friumph
TR6
Manual.
Part
N~).
545277 Jssue J
