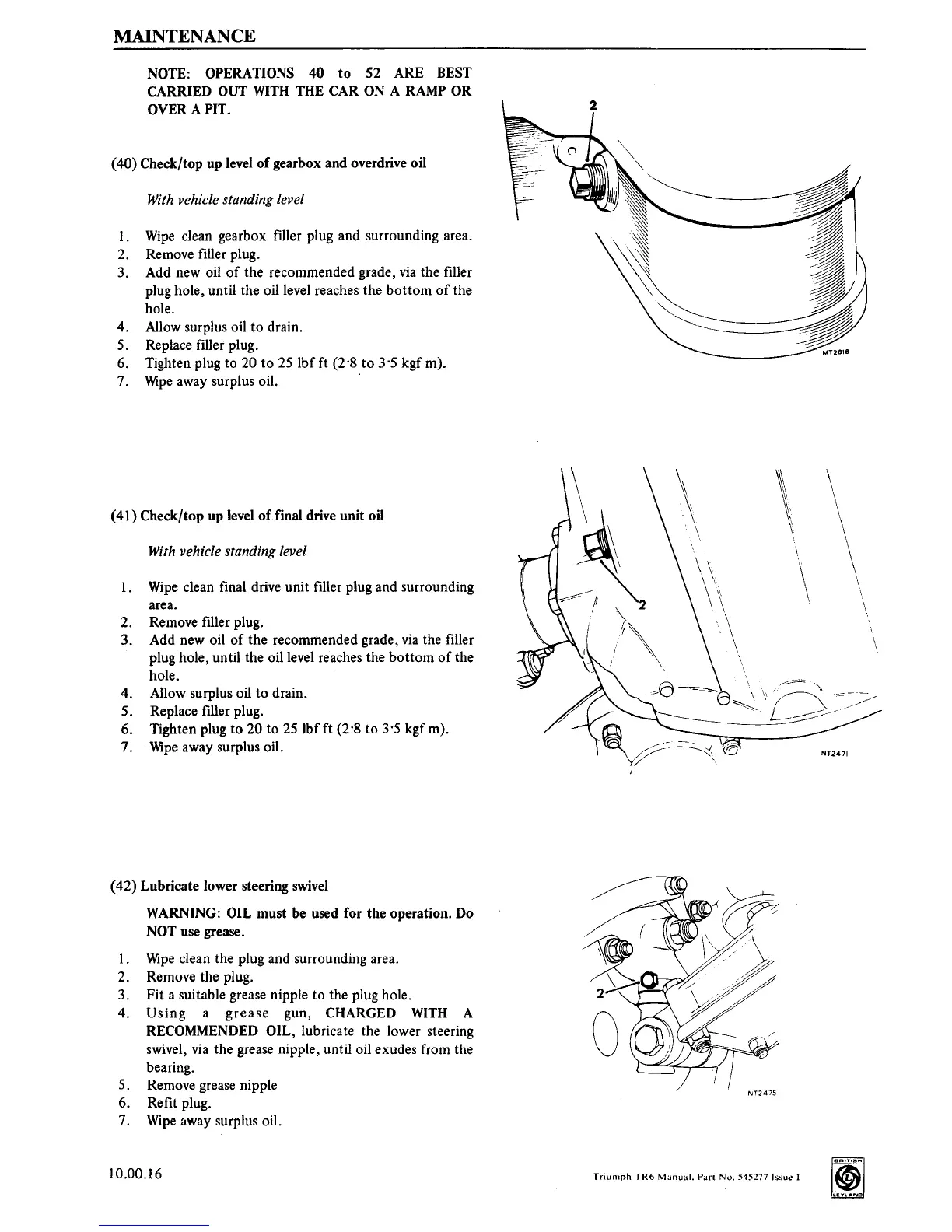

MAINTENANCE
NOTE: OPERATIONS 40 to 52 ARE BEST
CARRIED OUT
WITH
THE CAR
ON
A RAMP OR
OVER A PIT.
(40) Check/top up
level
of gearbox and overdrive oil
With vehicle standing level
I.
Wipe
clean gearbox filler plug and surrounding area.
2.
Remove filler plug.
3. Add new oil
of
the recommended grade,
via
the filler
plug hole, until the oil level reaches the
bottom
of
the
hole.
4. Allow surplus oil to drain.
s.
Replace filler plug.
6.
Tighten plug to 20 to 25
lbf
ft
(2·8
to
3·5 kgf m).
7.
Wipe
away surplus oil.
(41) Check/top up level
of
final drive unit oil
With vehicle standing level
I.
Wipe
clean final drive unit filler plug and surrounding
area.
2. Remove filler plug.
3. Add new oil
of
the recommended grade,
via
the filler
plug hole, until the oil level reaches the bottom
of
the
hole.
4. Allow surplus oil to drain.
S. Replace filler plug.
6. Tighten plug to 20 to
25
lbf
ft
(2·8 to 3'5 kgf m).
7.
Wipe
away surplus oil.
(42) Lubricate lower steering swivel
WARNING: OIL must be used for the operation.
Do
NOT use grease.
I.
Wipe
clean the plug and surrounding area.
2. Remove the plug.
3. Fit a suitable grease nipple to the plug hole.
4.
Using
a
grease
gun, CHARGED
WITH
A
RECOMMENDED OIL, lubricate the lower steering
swivel,
via
the grease nipple, until oil exudes from the
bearing.
5. Remove grease nipple
6. Refit plug.
7.
Wipe
away surplus oil.
