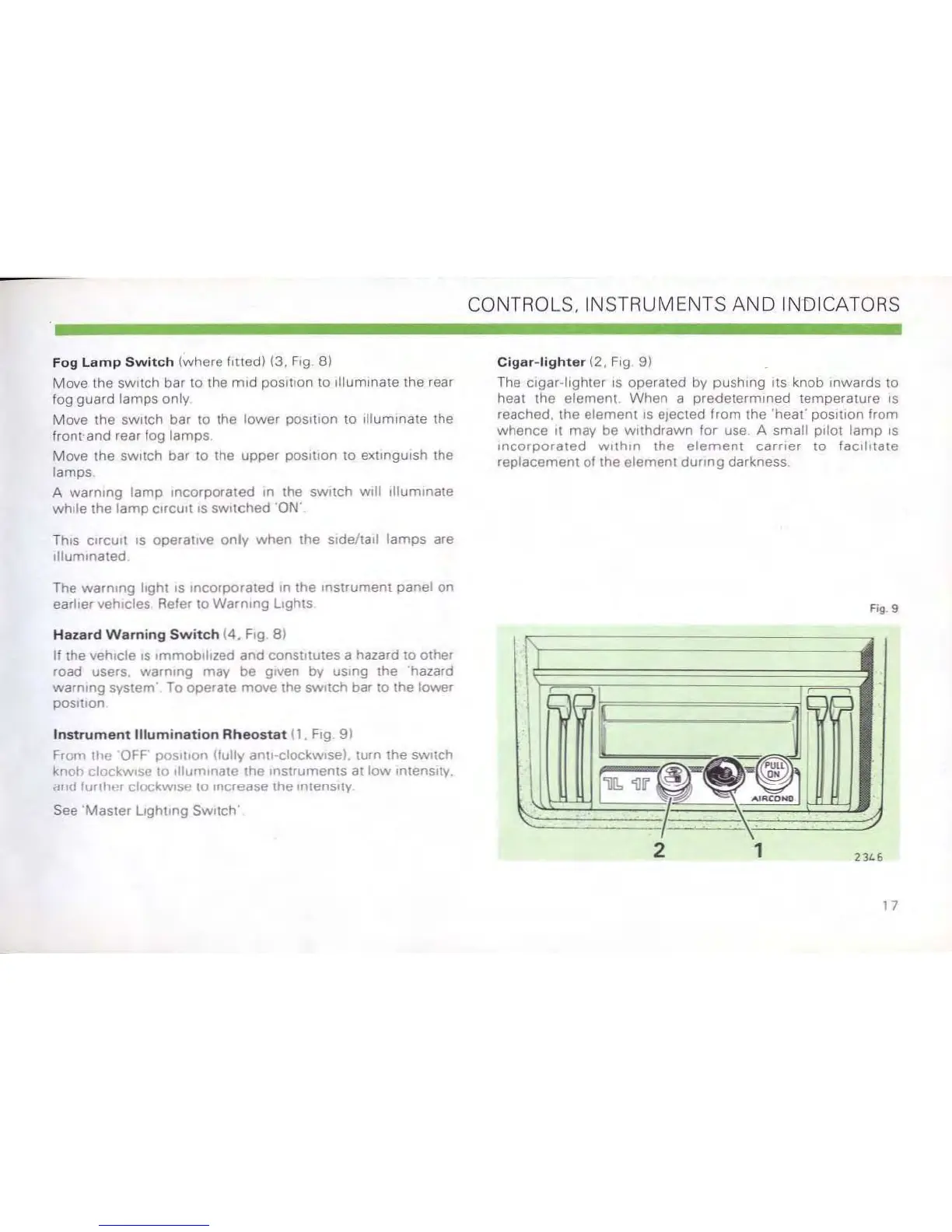

Fog Lamp Switch (where fitted} (3, Fig 8)
Move the SWitch bar to the mid POSition 10 Illuminate the rear
fog guard lamps only
Move the SWitch bar \0 the lower position to Illuminate the
front·and rear fog lamps
Move the SWitch bar to the upper POSition 10 extingUish the
lamps
A warning lamp Incorporated In the $wllch will Iliummate
while the lamp CirCUlI 15 SWitched 'ON"
This
CIrCUIt 15 operative only when the Side/tail lamps are
Illummated
The warning light IS Incorporated In the Instrument panel on
earlier vehIcles Reier 10 Warning LIghts
Hazard Warning Switch (4. Fig 8)
If the vehicle IS Immobilized and constitutes a hazard to other
road users. warning may be gIVen by uSing the 'hazard
warmng system' To operate move the SWitch bar to the lower
position
Instrument Illumination Rheostat (1. Fig 91
From the 'OFF poSitIon (fully ani I-clockwise!. turn Ihe swllch
!moh clockwise to Ilium InaIe the Instruments at low intensity.
i1nd further
clockWise 10 Increase the intensity
See 'Master l.ghtlng SW!lch'
CONTROLS. INSTRUMENTS AND INDICATORS
Cigar.lighter 12, Fig 9)
The
cigar-lighter IS operated by pushing Its knob Inwards 10
heal the element When a predetermined temperature IS
reached, the element .s ejected from the 'heal' position from
whence It may be wl\hdrawn for use A small pilot lamp IS
Incorporated within the element carrier to faCilitate
replacement of the element during darkness
Fig. 9
17
