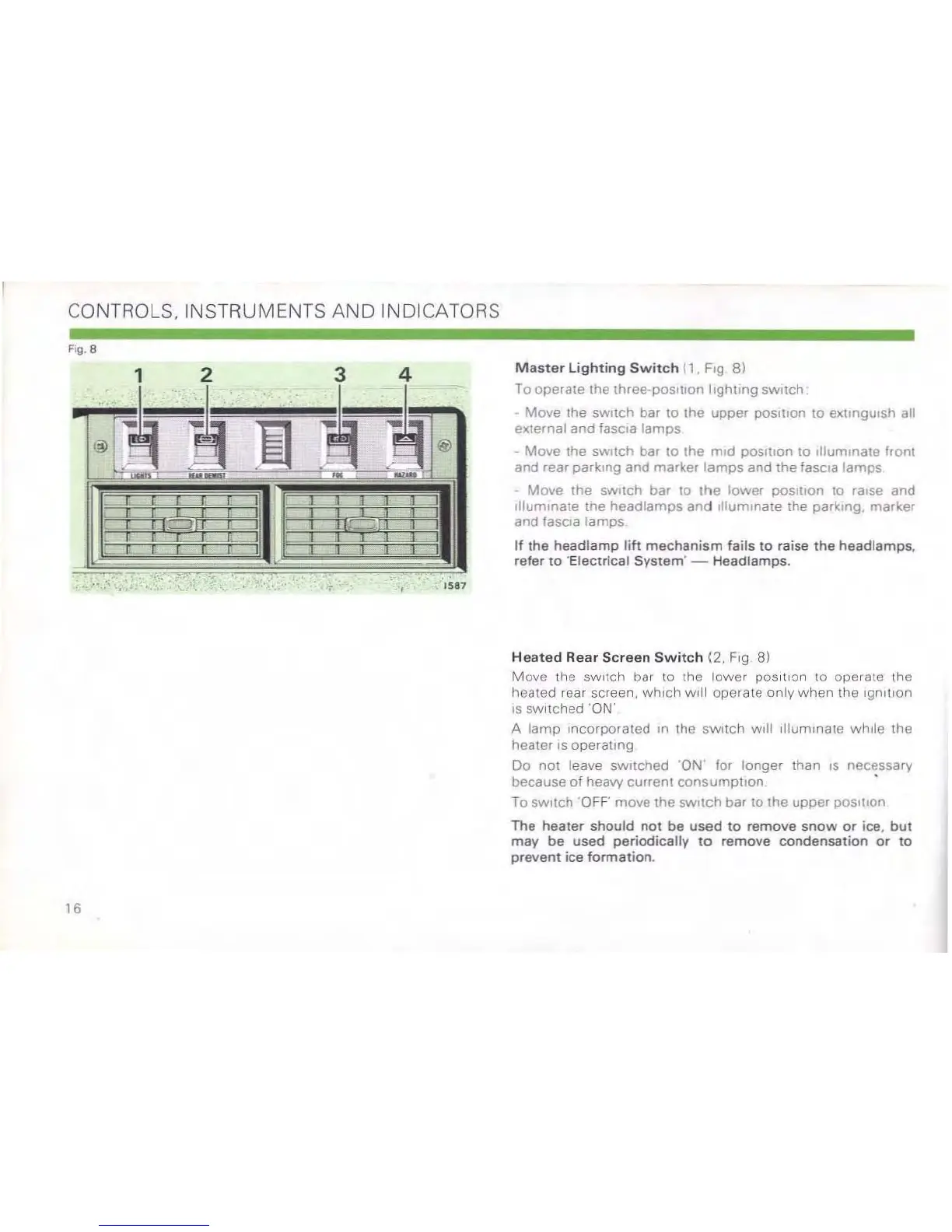

CONTROLS, INSTRUMENTS AND INDICATORS
Fig. 8
16
Master Lighting Switch (1. Fig 8)
To operate the three-position lighting sWitch
• Move the switch bar to the upper position to extinguIsh all
external and fascIa lamps
- Move the sWllch bar 10 the mid paSHlon to Illummate front
and rear parkmg and marker lamps and the faSCia lamps
• Move the sWItch bar to the lower poSllIon to raIse and
Illummate me headtamps and Illummate the parking, marker
and lascla lamps
If the headlamp lift mechanism fails to raise the headlamps,
refer to 'Electrical System' - Headlamps.
Heated Rear Screen Switch (2. Fig 8)
Move the SWitch bar to the lower POSition 10 operate the
heated reaf screen, which Will operate only when the Ignition
1$ sWllched ·ON·
A lamp Incorporated In [he SWitch Will Iliummate while the
heater IS operating
Do not leave sWitched 'ON' 10f longer than IS necessary
because of heavy current consumption •
To SWitch 'OFF'
move the SWitch bar to the upper pOSlllon
The heater should not be used to remove snow or ice, bUI
may be used periodically to remove condensation or to
prevent ice formation.
