CONTROLS, INSTRUMENTS AND INDICATORS
Fig, 6

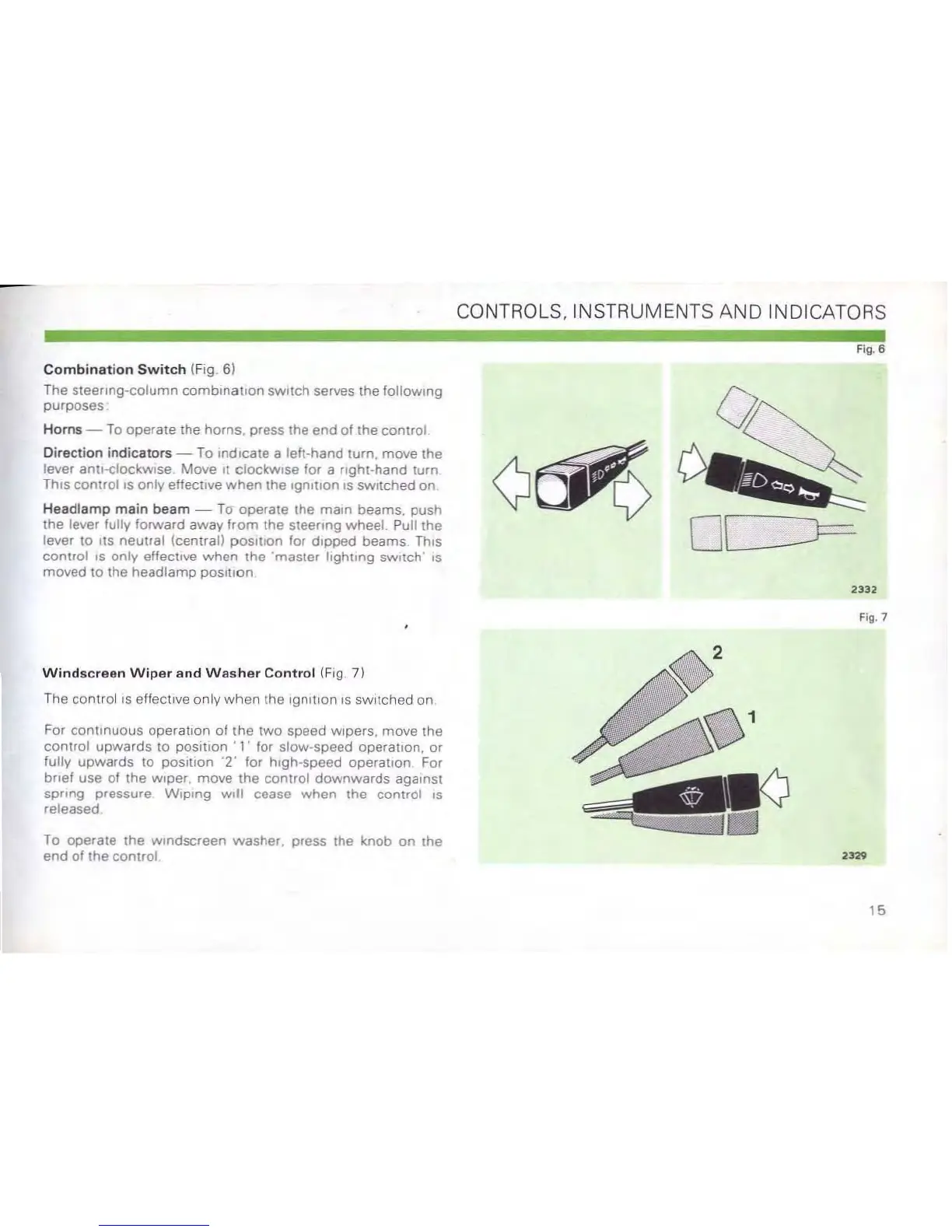

Combination Switch (Fig. 6)
The steenng-column combination SWitch serves the following
purposes
Horns - To operate the horns. press the end of the ccnlrol
Direction indicators - To Indicate a left-hand turn. move the
lever anll-clockwlse Move It clockwise for a fight-hand turn
This control IS only effective when the Ignillon IS switched on
Headlamp main beam - To operate the main beams. push
the lever fully forward away from the steeflng wheel. Pull the
lever 10 liS neutral (centrall pOSl1lcn for dipped beams This
control IS only effective when the 'master lighting sWitch" IS
moved to the headlamp position
Windscreen Wiper and Washer Control {Fig 7l
The centrollS effective only when the Ignll10n IS sWitched on
o
or :::::J=
2332
Fig. 7
For continuous OperallQn of the two speed Wipers, move the
control upwards to position '" lor slow-speed operation, or
lullv upwards to poSItion '2- for high-speed operatIOn For
brlel use 01 the Wiper, move the control downwards against
spong pressure Wlpmg WIll cease when the contrOl IS
released
To operate lhe windscreen washer, press the knob on Ihe
end ollhe control
""
15
