BODY FITTINGS
Fig.9
Fig. 10
24
1620

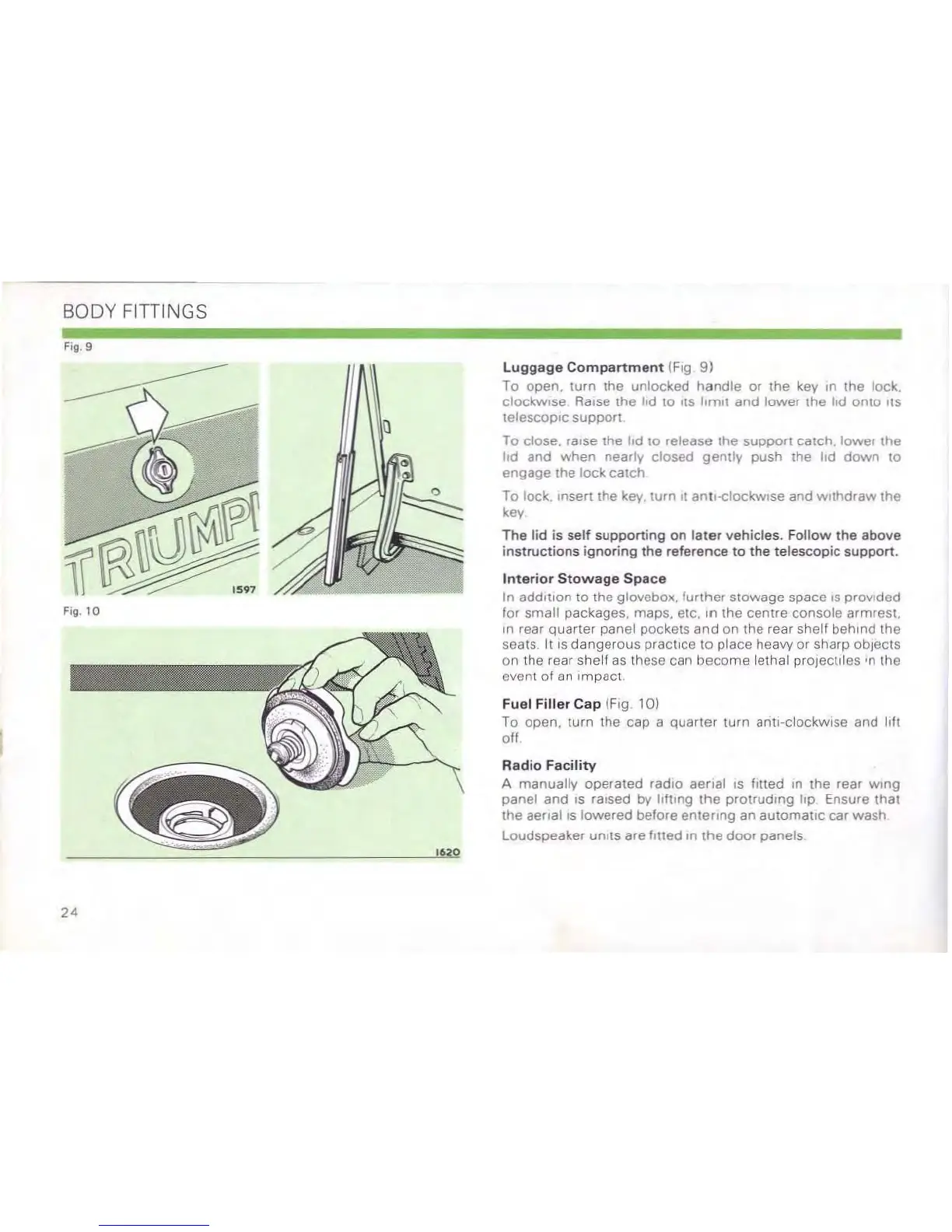

luggage Compartment (Fig 9)
To open. turn the unlocked handle or the key In the lock.
clockwise Raise the lid to ItS limit and lower the lid OntO ,ts
telescopic support
To close. ra'se the lid to release the support calch. lower the
lid and when nearly closed gently push the lid down 10
engage the lock catch
To lock, Insert the key. turn II ant,-elockw,se and withdraw the
key
The lid is self supporting on later vehicles. Follow the above
instructions ignoring the reference to the telescopic support.
Interior Stowage Space
In addition to the glovebox, further stowage space 1$ provided
ror small packages. maps. etc, In the centre console armrest,
In rear quarter panel pockets and on the rear shelf behind the
seats. It IS dangerous practice to place heavy or sharp ob/ects
on the rear shelf as these can become lethal prOjectiles 'n the
even! of an Impact
Fuel Filler Cap (Fig 10J
To open, turn the cap a Quarter turn anti-clockwise and lilt
off
Radio Facility
A manually operaled radio aenal IS fitted In (he rear wmg
panel and IS raised by Iifllng the protruding lip Ensure thaI
the aenalls lowered belore entering an automatiC car wash
loudspeaker Units are fitted In the door panels
