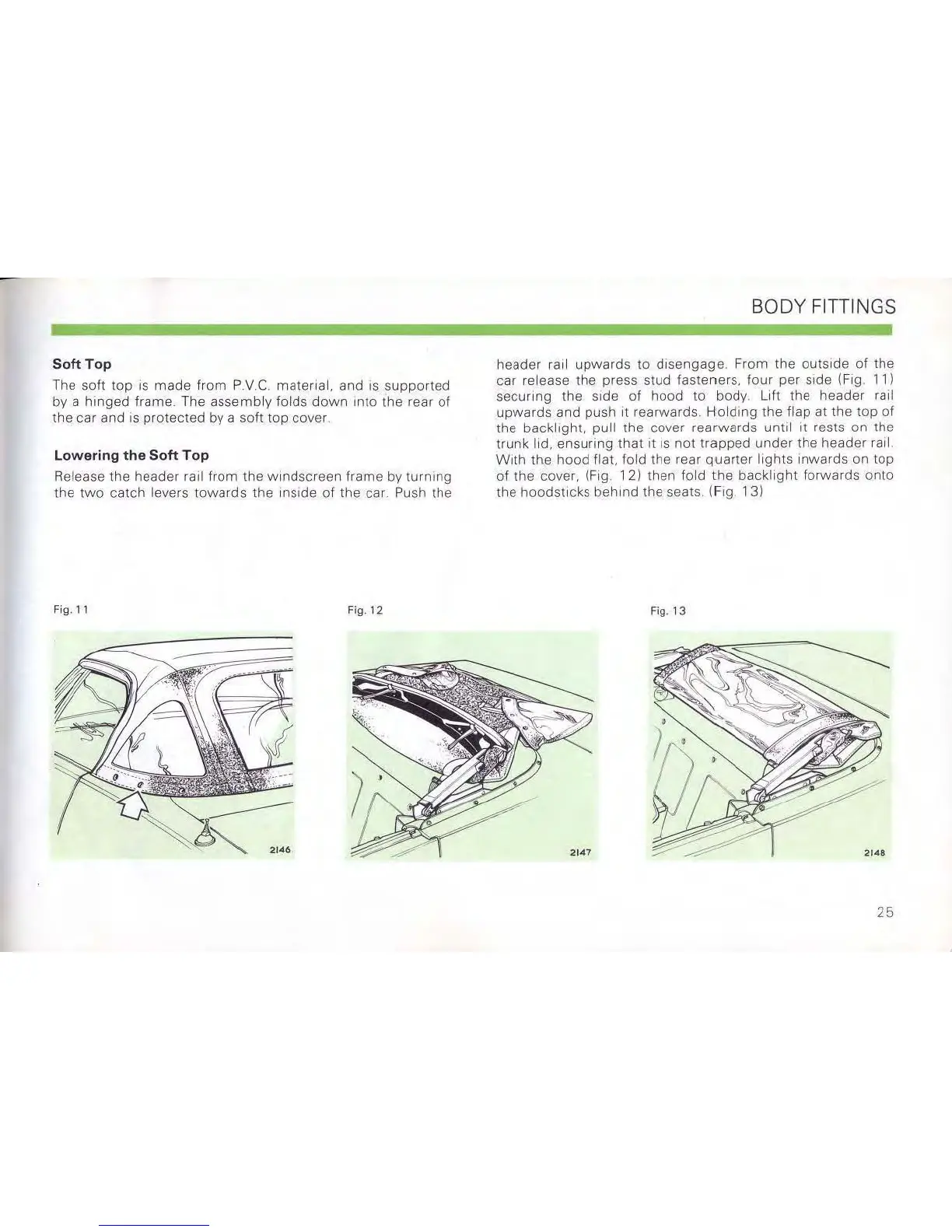

Soft
Top
The soft
top
IS
made
from
PVc.
material, and
IS
supported
by a
hinged
frame. The
assembly
folds
down
Into
the rear
of
the car and
IS
protected
by a soft
top
cover.
Lowering the
Soft
Top
Release the header rail from the windscreen frame
by
turning
(he
two
catch levers
towards
the InSide
of
the car. Push the
BODY
FInINGS
header rail
upwards
to
disengage. From the outside of
the
car release the press stud fasteners. four per Side (Fig 1
1)
securing the Side
of
hood
to body. Lift the header rail
upwards
and push
It
rearwards.
Holding
the flap
at
the
top
of
the backlight.
pull
the cover
rearwards
until
It
rests on
the
trunk lid.
ensuring
that
It
IS
not
trapped
under
the header rail
With
the hood flat. fold the rear
quarter
lights
Inwards on
top
of
the cover. (Fig. 12) then fold
the
backlight
forwards
onto
the
hoodstlcks
behind
the seats (Fig 13)
Fig,
11
Fig.
12
Fig.
13
25
