BODY FITTINGS

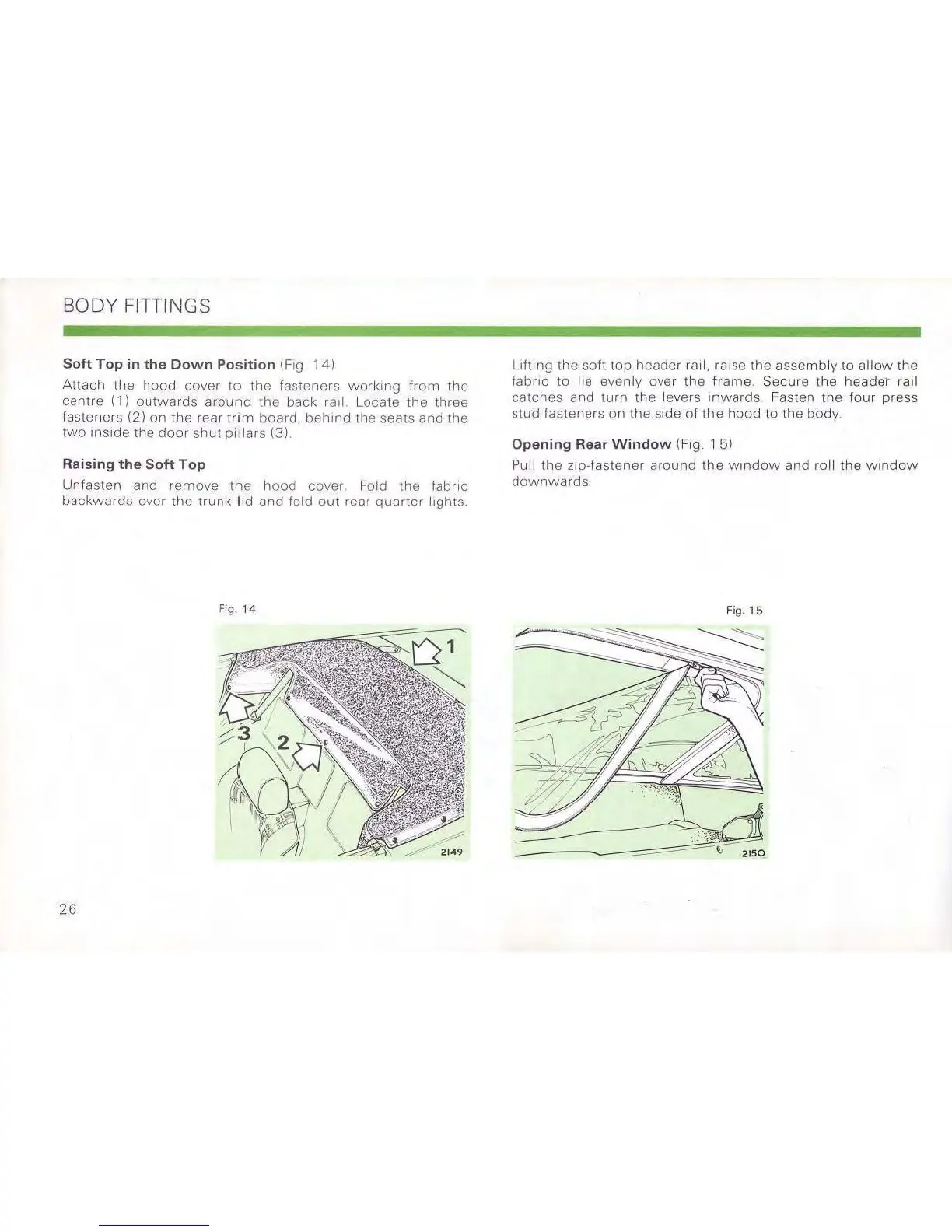

Soft Top in the Down Position (Fig 14)
Attach the hood cover to the fasteners working from the
centre (1) outwards around the back rail Locate the three
fasteners (2) on the reaf trim board, behind the seats and the
two Inside the door shut pillars l31.
Raising the Soft Top
Unfasten and remove the hood cover Fold the fabric
backwards over the trunk lid and fold out rear quarter lights
Fig, 14
26
Lifting the sofl lOp header rarl, raise the assembly to allow the
fabriC to lie evenly over the frame. Secure the header rail
catches and turn the levers Inwards Fasten the four press
stud fasteners on the Side of the hood to the body.
Opening Rear Window (Fig 15)
Pull the zip-fastener around the Window and roll the Window
downwards
Fig.15
-- .
