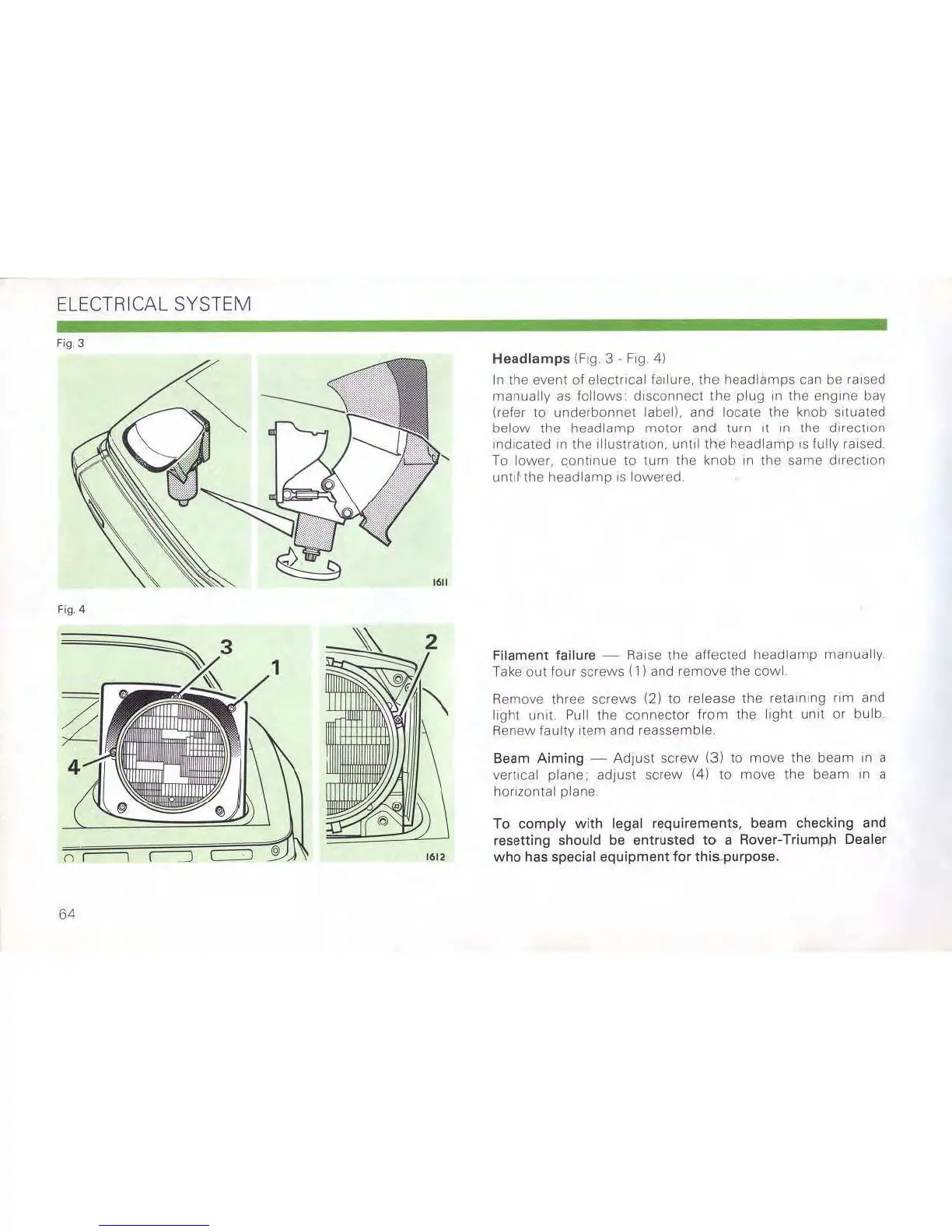

ELECTRICAL SYSTEM
Fig.3
Fig. 4
Headlamps
(Fig 3 -
Fig
4)
In
the event of electrical failure, the headlsmps can
be
raised
manually
as
follows
disconnect
the
plug
In
the engme bay
(refer
10
underbonnet label), and locate the knob situated
below
the headlamp
motor
and turn It In lhe direction
mdlcated
In
the Illustration, until the headlamp
IS
fully raised
To
lower, continue to turn the knob
In
the same direction
unll~lhe
headlamp
IS
lowered
64
1612
Filament failure - Raise the affected headlamp manually
Take
out four screws (1) and remove the cowl.
Remove three screws
(2~
10
release the
retamlng
rim and
light
unl1
Pull the connector from the light Unit or bulb.
Renew faulty
Item
and reassemble
Beam
Aiming
- Adjust screw (3) to move the beam
In
a
vertical
plane,
adjust screw (4) to move the beam
In
a
horizontal plane
To
comply
with
legal
requirements,
beam checking and
resetting should be entrusted
to
a Rover-Triumph Dealer
who
has special
equipment
for this.purpose.
