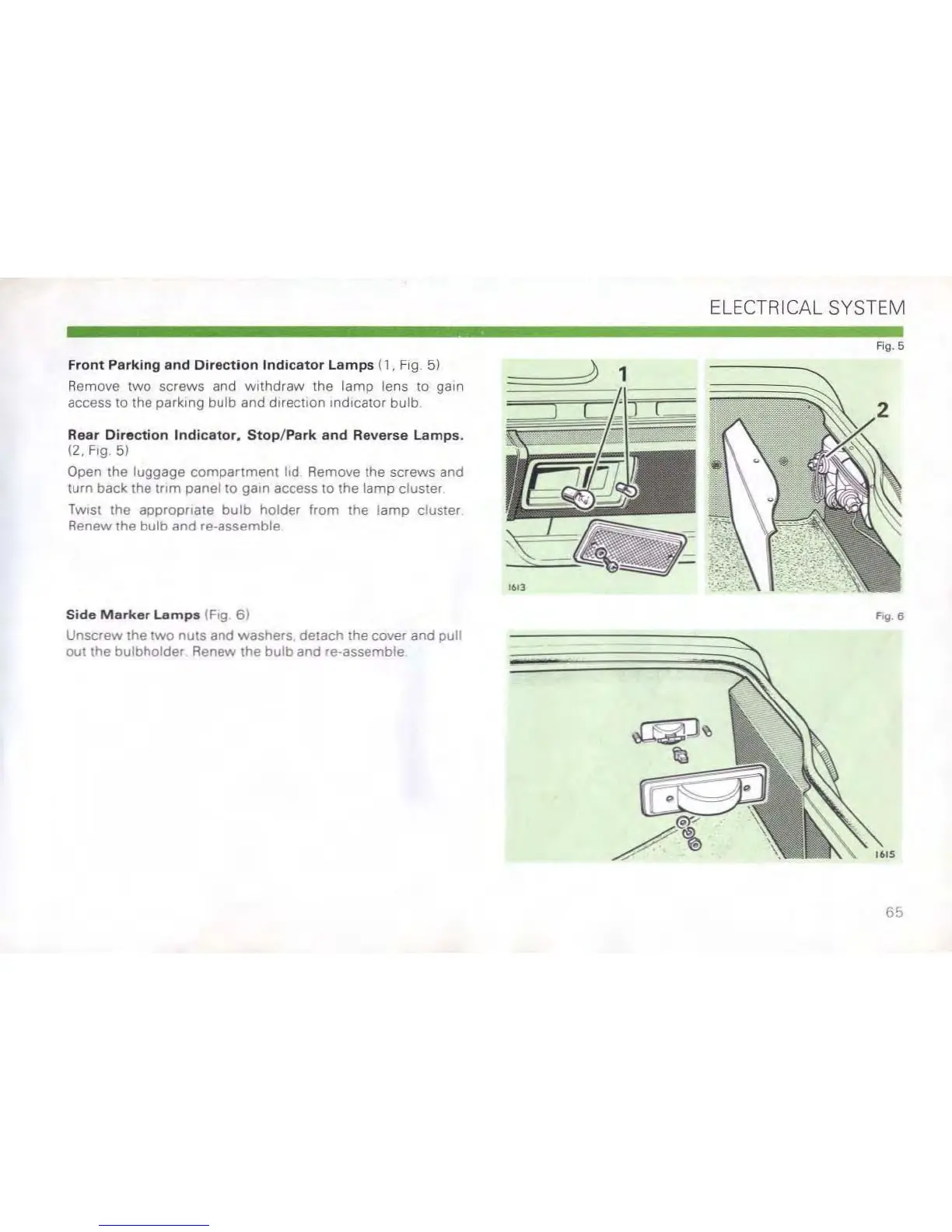

Front Parking end Direction Indicator Lamps (1, Fig. 5)
Remove
two screws and withdraw the lamp lens to gain
access to the parking bulb and direction indicator bulb
Rear Direction Indicator. Stop/Park and Reverse Lamps.
(2, Fig 5)
Open
the luggage compartment lid Remove the screws and
IUrn back the trim panel to gain access to the lamp duster
TWist the appropriate bulb holder from the lamp cluster
Renew the bulb and re-assemble
=
1613
J 1
~.J
ELECTRICAL SYSTEM
Fig. 5
Side Marker Lamps (Fig 61
Unscrew the two nuts and washers, detach the cover and pull
out the bulbholder Renew the bulb and re-assemble
Fig. 6
65
