Maintenance and Adjustment
Speed Triple R

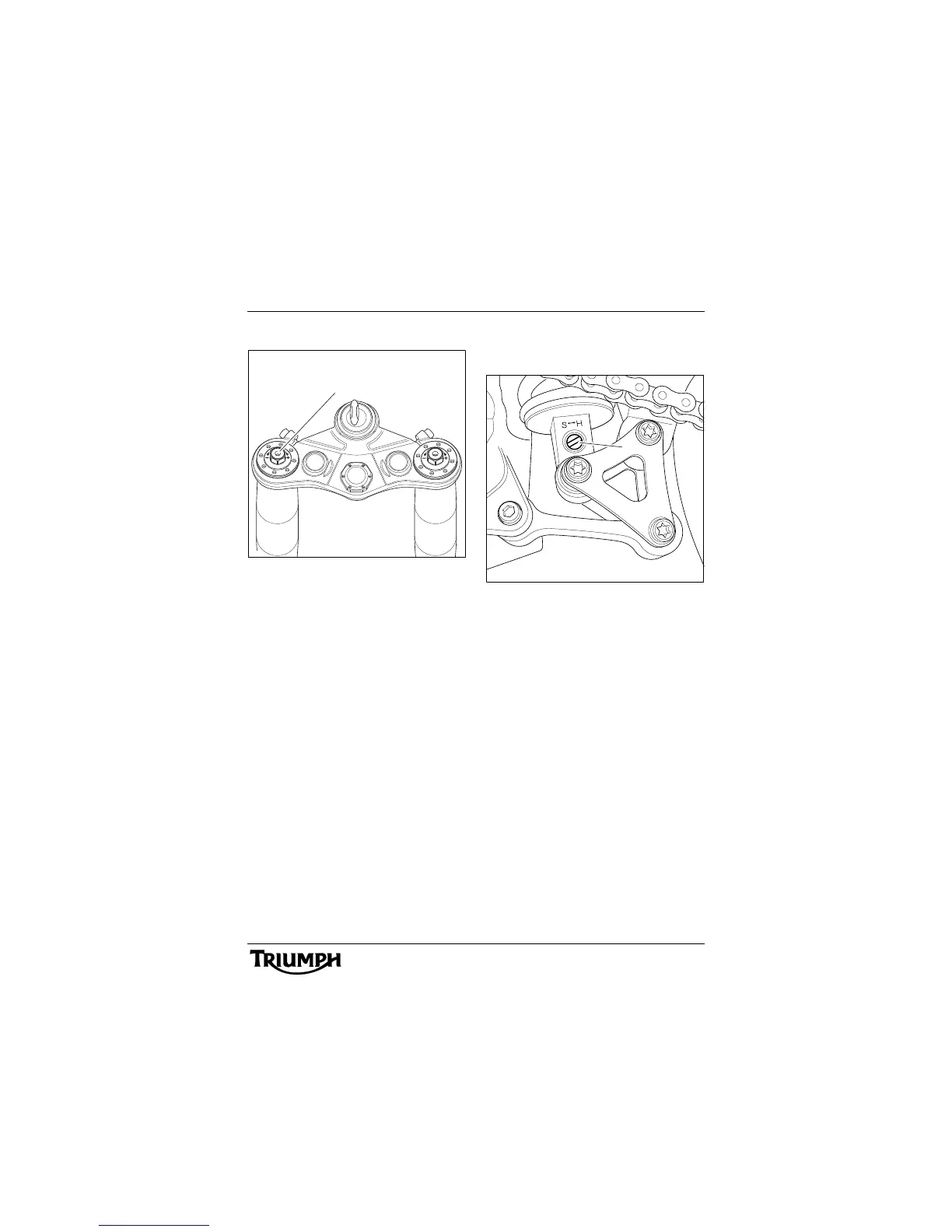

1. Compression damping adjuster
The compression damping adjuster is located
at the top of the left hand fork.
To change the compression damping force,
rotate the adjuster clockwise to increase, or
anti-clockwise to decrease using a 3 mm allen
key. Always count the number of clicks from
the fully clockwise position noting that the
first stop (click position) is counted as zero.
Note:
• The motorcycle is delivered from
the factory with the compression
damping set at 15 clicks from the
fully clockwise position.
Rear Suspension Adjustment
The rear suspension unit is adjustable for
both rebound and compression damping.
Rebound Damping Adjustment
Speed Triple
1. Rebound damping adjuster
The rebound damping adjuster is located at
the bottom of the rear suspension unit on the
left hand side of the motorcycle.
To adjust the rebound damping setting,
rotate the adjuster clockwise to increase
rebound damping and anti-clockwise to
decrease. Always count the number of anti-
clockwise turns from the fully clockwise
position.
Note:
• The motorcycle is delivered from
the factory with the rebound
adjuster set at 1.25 anti-clockwise
turns from the fully clockwise
position.
