Flooded
ELPT EUT
EHPT EAPT
DT LT
IND

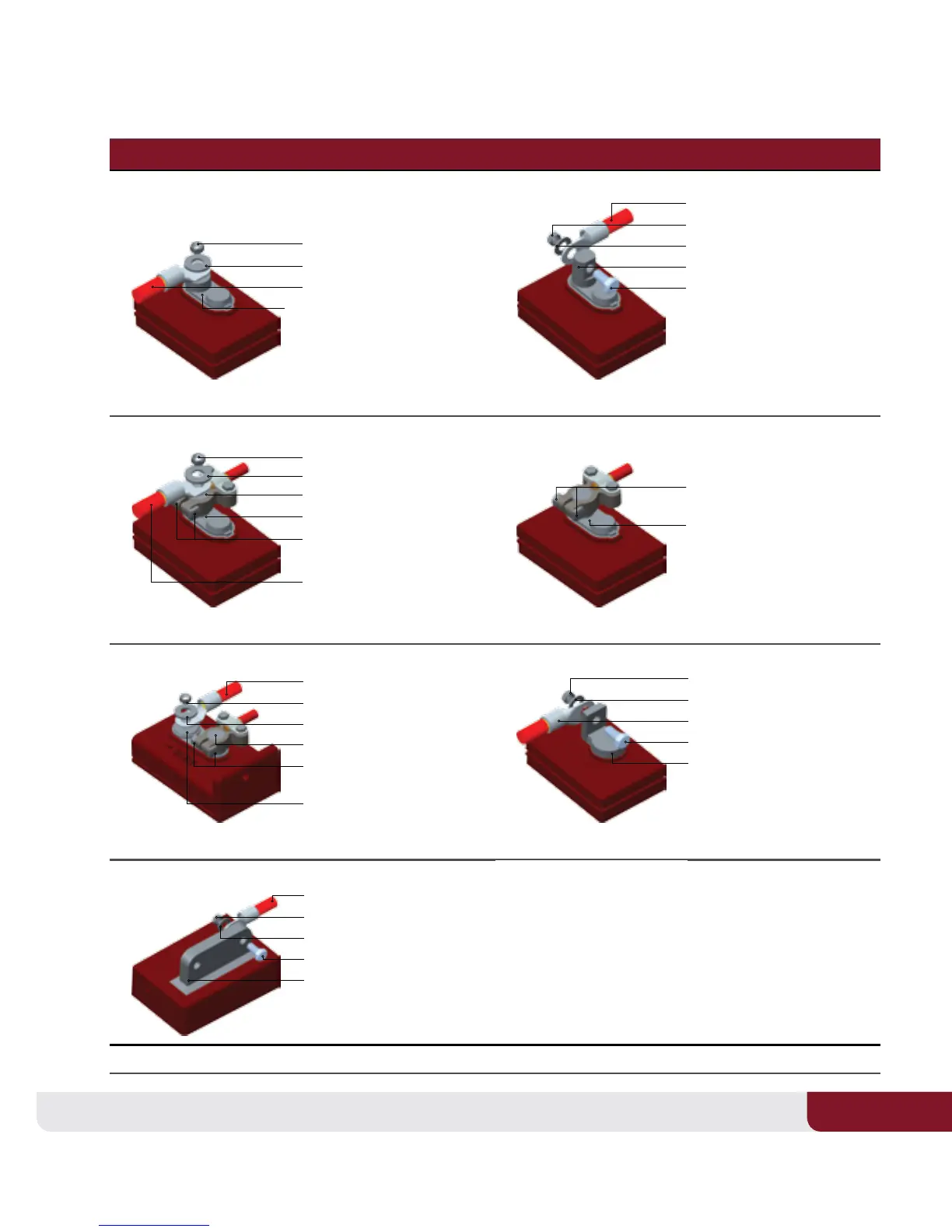

Images shown reect correct hardware placement. *Hardware not supplied by Trojan Battery Company.
Nut - Torque to 95-105 in-lbs (11-12 Nm)
Nut - Torque to 95-105 in-lbs (11-12 Nm)
Washer*
Washer*
AP Connector
Torque to 50-70 in-lbs (6-8 Nm)
Cable Lug
Cable Lug
Terminal
Terminal
Stud Portion
Cable Lug
Nut - Torque to 95-105 in-lbs (11-12 Nm)
Washer*
Terminal
Bolt
Nut - Torque to 95-105 in-lbs (11-12 Nm)
Washer*
Cable Lug
Bolt
Terminal
Cable Lug
Nut - Torque to 100-120 in-lbs (11-14 Nm)
Washer*
Bolt
Terminal
Terminal
AP Connector
Torque to 50-70 in-lbs (6-8 Nm)
Cable Lug
Nut - Torque to 95-105 in-lbs (11-12 Nm)
Washer*
AP Terminal
AP Connector
Torque to 50-70 in-lbs (6-8 Nm)
Stud Terminal
