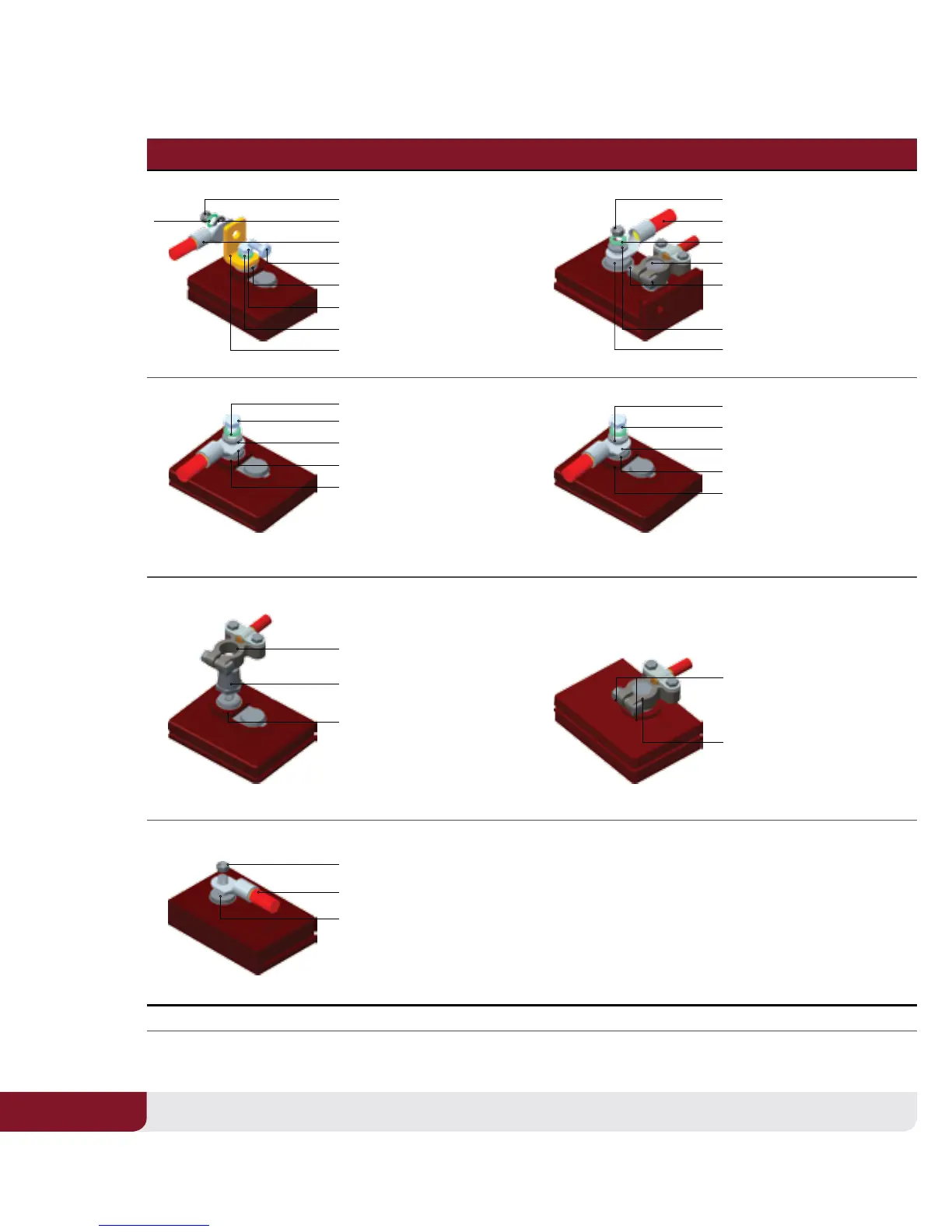

Images shown reect correct hardware placement. All hardware supplied for Reliant AGM. Hardware for non Reliant AGM is optional.
Nut - Torque to 55-70 in-lbs (6-8 Nm) Nut - Torque to 95-105 in-lbs (11-12 Nm)
Washer Cable LugLock Washer
Cable Lug Lock Washer
Bolt - 20 mm AP Terminal
M8 Terminal
AP Connector
Torque to 50-70 in-lbs (6-8 Nm)
Bolt - 16mm - Torque to 85-95 in-lbs (10-11 Nm)
Washer
Lock Washer
Stud Terminal
AP Connector
Torque to 50-70 in-lbs (6-8 Nm)
Lock Washer
Bolt - Torque to 85-95 in-lbs (10-11 Nm)
Washer
Cable Lug
Terminal
Lock Washer
Bolt - Torque to 25-35 in-lbs (3-4 Nm)
Washer
Cable Lug
Terminal
LT Adapter
AP Adapter
Torque to 85-95 in-lbs (10-11 Nm)
M8 Terminal
Nut
- Torque to 120-180 in-lbs (14-20 Nm)
Cable Lug
Terminal
AP Connector
Torque to 44-62 in-lbs (5-7 Nm)
Terminal
