8
28
28
6
17
23
4
17
23
23
18
7
Pin of Main Frame
9
20
22
22
1
10
24
27
27
11
1042-7

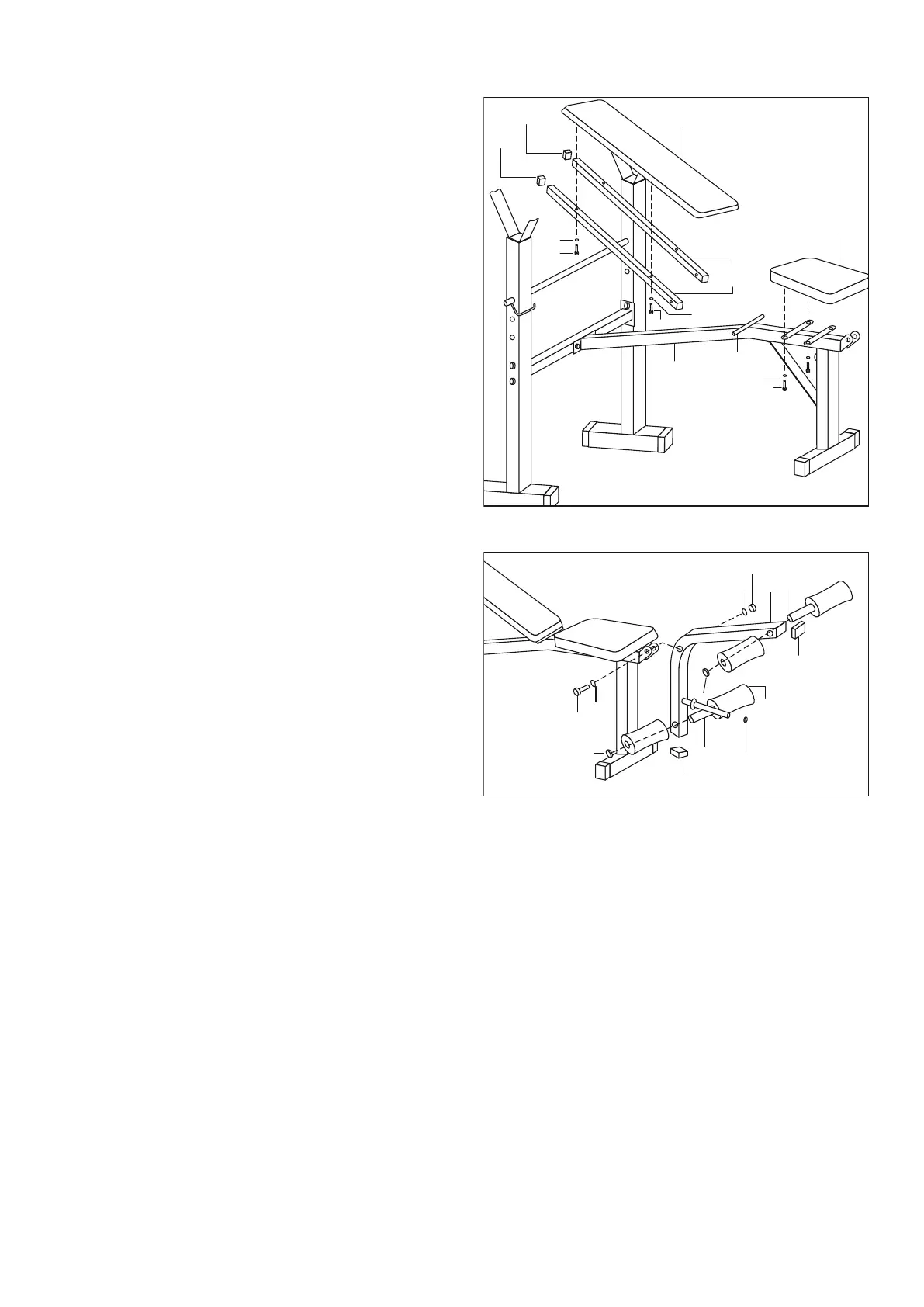

STEP 03
• Attach Seat (6) to Main Frame (4) with four 1/4” x 1/2”
Bolts (18) and Washers (23).
• Slide one Backrest Bar (7) onto pin of Main Frame (4) and
attach to Backrest (8) with two 1/4” x 1-1/2” Bolts (17)
and two Washers (23).
• Assemble second Backrest Bar (7) by the same procedure.
• Attach one 1” Square Cap (28) to each Backrest Bar
STEP 04
• Attach Swing Arm (9) to Main Frame with one
3/8” x 2-1/2” Bolt (14) and one Nut (20),
two Washers (22).
• Slide one Pad Holder (10) through hole in each end of
Swing Arm.
• Insert one 3/4” Round Cap (25) into ends of each Pad
Holder.
• Slide one Foam Pad (11) onto each end of Pad Holders as
shown.
• Insert one 1” round cap (24) into each end of Weight Bar
(attached to Swing Arm).
ASSEMBLY STEPS
4
25
25
10
