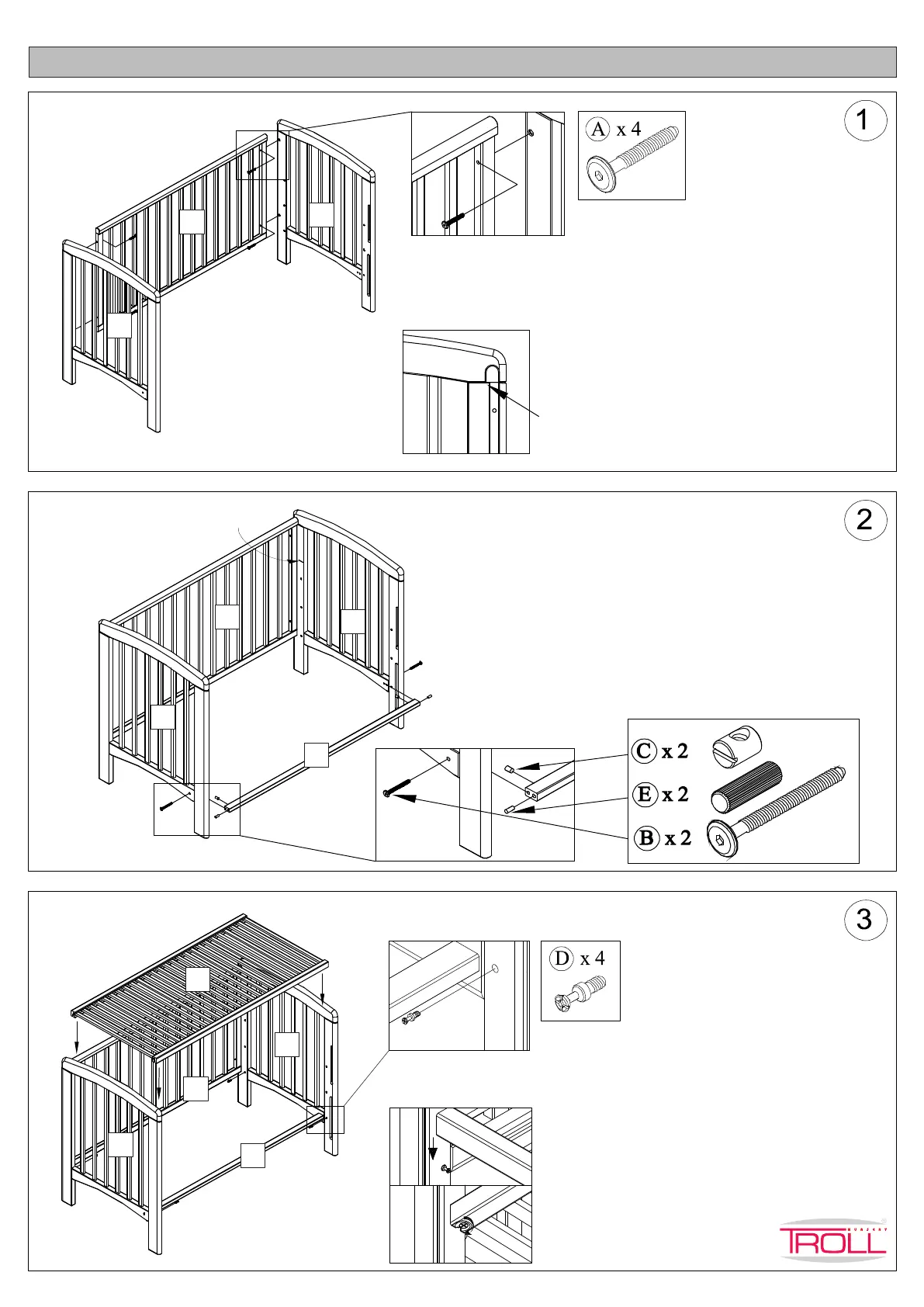

ASSEMBLING
Use A x 4 screws to
attach fixed side.
Do not tighten.
Insert the C x 2 cross dowels and E x 2
wooden dowels into the stabilizing bar.
Then insert the Allen-headed bolts B through
the holes in the short ends.
Do not tighten.
Insert screws for fitting
mattress base in
one of three height
positions.
Drop mattress base onto screw
in dowel pins. Tighten the cams
on front underside of mattress
base using a crosshead
screwdriver.
Overhang should be
inside cot.
WARNING! op
surface must not be higher
than this mark!
The t of the mattress
2
2
2
3333
4
4
5
5
5
6
6
6
