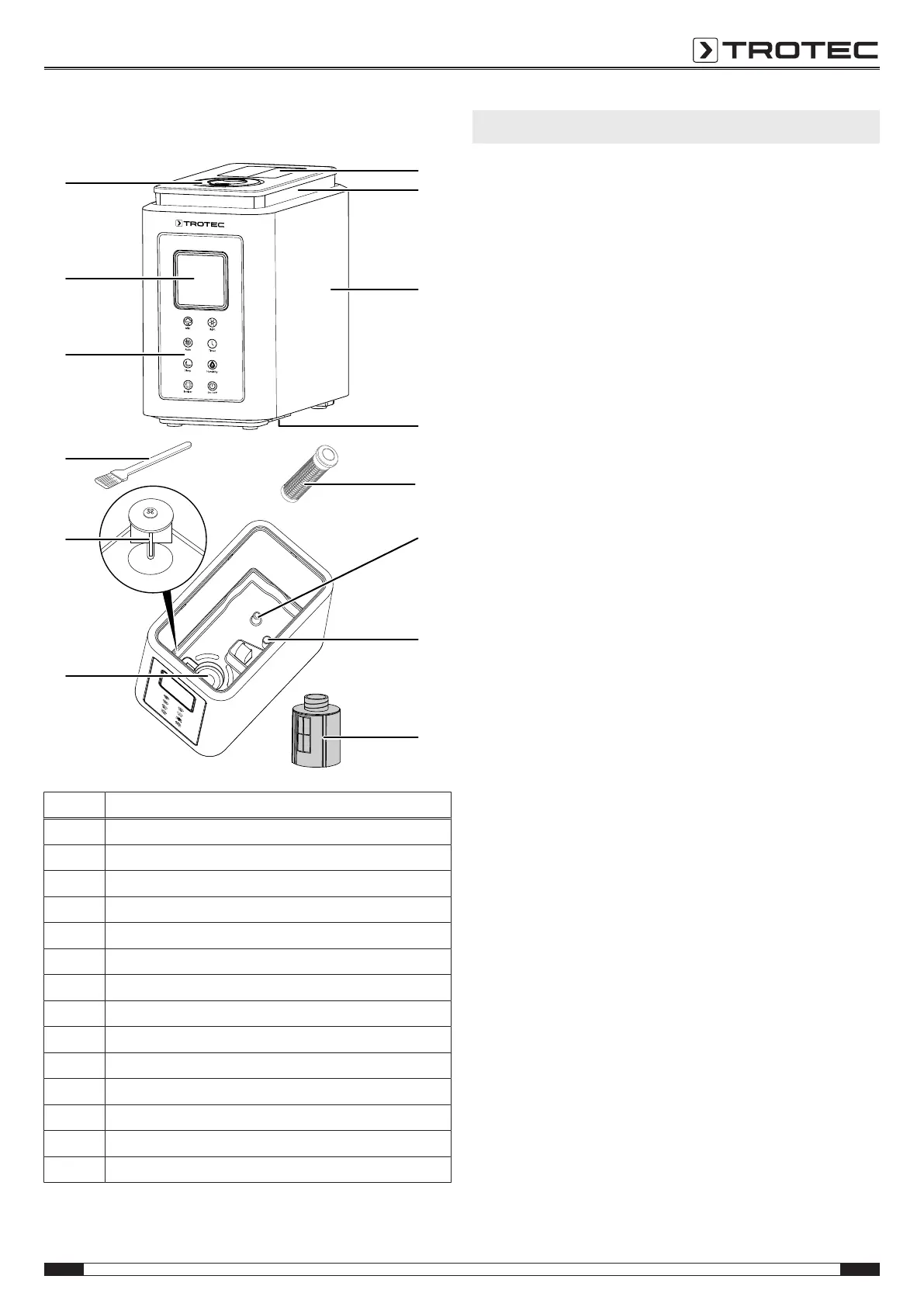

Device depiction
1
2
3
6
7
14
8
11
13
4
9
12
10
5
No. Designation
1 Water tank transport handle
2 Water tank
3 Lower part
4 Carbon filter
5 SecoSan
®
Stick 10 (optional accessory)
6 Water tank connection
7 Overflow
8 Filter cartridge with water softener
9 Nebulizer membrane
10 Float
11 Brush
12 Control panel
13 Display
14 Mist nozzle
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Empty the water tank.
• Do not use the power cable to drag the device.
• Check whether the upper part is correctly positioned on
the lower part.
• Lift the device at the lower part.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
Storage
Before storing the device, observe the following:
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Empty the water tank.
• Empty the lower part.
• Use a cloth to wipe all parts of the device dry.
• Clean the device according to the Maintenance chapter.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• Place no further devices or objects on top of the device to
prevent it from being damaged.
