Fire dampers
General information FKR-EU
1
Application
– Fire dampers of Type FKR-EU,
with CE marking and declaration
of performance, for the isolation
of duct penetrations between fire
compartments in the event of a fire
– To prevent the propagation of fire and smoke
through ductwork to adjacent designated
fire compartments
Classification
– Class of performance to EN 13501-3,
up to EI 120 (v
e
, h
o
,i↔o)S
Variants
– With fusible link
– With fusible link
for use in potentially explosive atmospheres
– With spring return actuator
– With spring return actuator
for use in potentially explosive atmospheres
Nominal sizes
– 315, 355, 400, 450, 500, 560, 630, 710, 800
– L: 495 mm or 550 mm
(depending on casing construction)
Attachments
– Limit switch
for damper blade position indication*
– Limit switch for damper blade position indicator
for use in potentially explosive atmospheres*
– Spring return actuator for 24 V AC/DC
or 230 V AC supply voltage*
– Spring return actuator for 24 – 230 V
supply voltage, for use in potentially
explosive atmospheres
– Network module for the integration
with AS-i or LON networks*
*All attachments can be retrofitted
Accessories
– Installation block TQ for dry mortarless
installation into lightweight partition walls / fire
walls with metal support structure and cladding
on both sides, as well as timber stud walls
and half-timbered constructions
– Cover grille
– Flexible connectors
– Extension piece
Useful additions
– Duct smoke detector RM-O-3-D
– Duct smoke detector with airflow
monitor RM- O-VS-D
Special characteristics
– Declaration of performance according to
Construction Products Regulation
– Classification to EN 13501-3,
up to EI 120 (v
e
, h
o
,i↔o)S
– Building inspectorate licence Z-56.4212-991
for fire resistance properties
– Complies with the requirements of EN 15650
– Tested to EN 1366-2
for fire resistance properties
– Hygiene complies with VDI 6022
part 1 (07/ 2011), VDI 3803 (02/2010),
DIN 1946 part 4 (12/2008),
and EN 13779 (09/2007)
– Corrosion protection according to EN 15650
in connection with EN 60068-2-52
– Closed blade air leakage to EN 1751, class 4
– Casing air leakage to EN 1751, class C
– Low differential pressure
and sound power level
– Any airflow direction
– Integration into the central BMS
with TROXNETCOM
Parts and characteristics
– Release temperature 72 °C or 95 °C
(for use in warm air ventilation systems)
– Single-handed operation
– Explosion-proof constructions for zones 1, 2,
21 and 22 with limit switch
or spring return actuator
Construction features
– Rigid, circular casing with spigot connections
suitable for circular ducts. Spigots with lip seal
on both ends, suitable for commercially
available circular ducts to EN 1506
or EN 13180; alternatively with flanges
on both ends. Flanges, to EN 12220
– The release mechanism is accessible
and can be tested from the outside
– Suitable for the connection of ducts,
flexible connectors or a cover grille
– Remote control with spring return actuator
Materials and surfaces
Casing:
– Galvanised sheet steel
– Galvanised sheet steel,
powder-coated RAL 7001
– Stainless steel 1.4301
Damper blade:
– Special insulation material
– Special insulation material with impregnation
Other components:
– Damper blade shaft in stainless steel
– Plastic bearings
– Seals of elastomer
The construction variants with stainless steel
or powder-coated casing meet even more critical
requirements for corrosion protection.
Detailed listing on request.
K4 – 1.1 – 3
Description

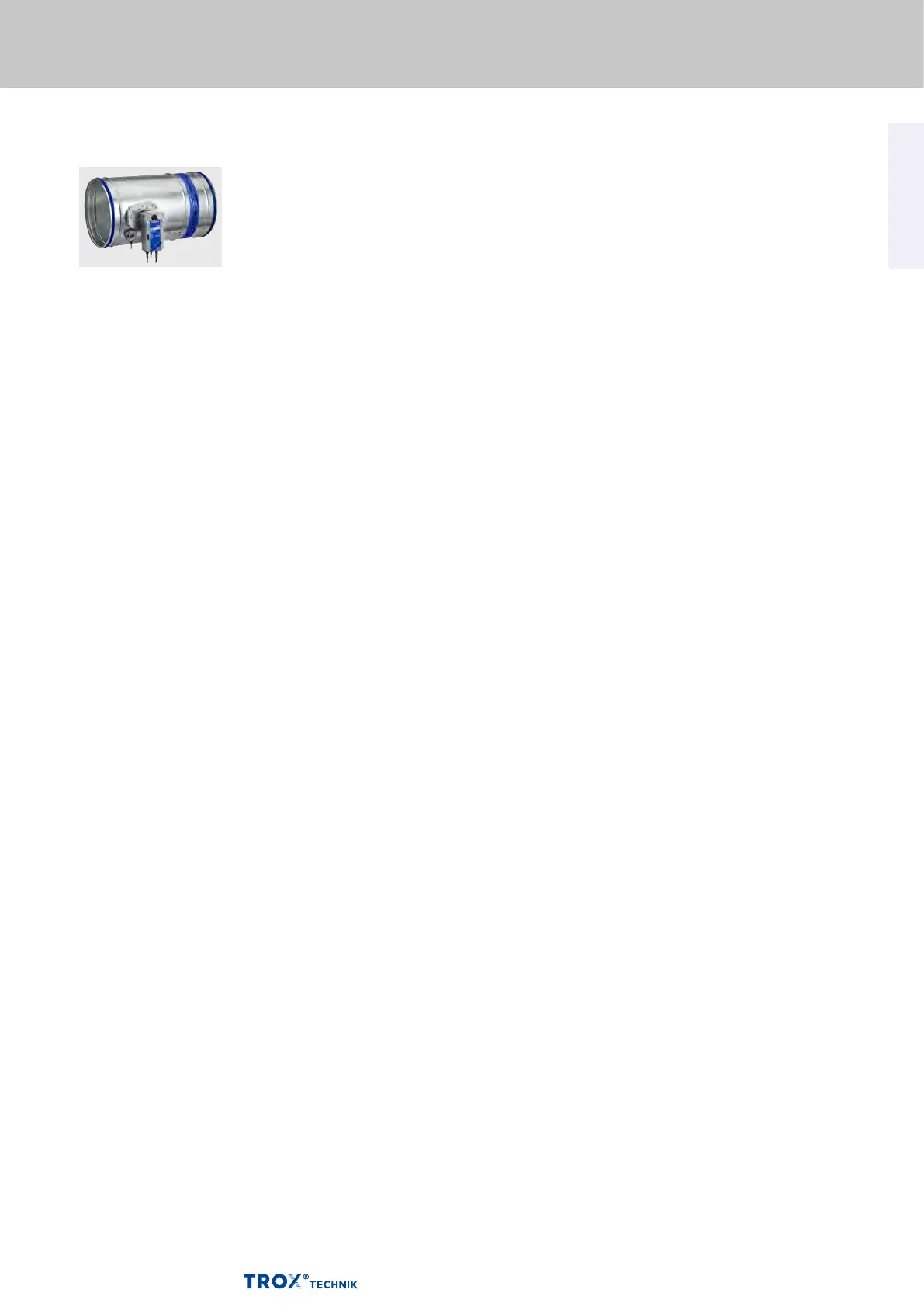

FKR-EU with spring return
actuator type BFN
For detailed information
on attachments see
Chapter K4 – 1.2.
03/2017 – DE/en
