Trox VFL - Dimensions and Weight

04/2014 US K5 – 2.1 – 7
Dimensions and weight VFL
Dimensions
Volume flow limiter
Type VFL
Dimensions [in] and weight [lb]
Nominal
size
ØD L Weight
in in lb
100 3¾ 4 0.3
125 4¾ 4⅝ 0.6
150 5¾ 5⅞ 0.9
200 7¾ 6⅞ 1.1
250 9¾ 8⅝ 1.5

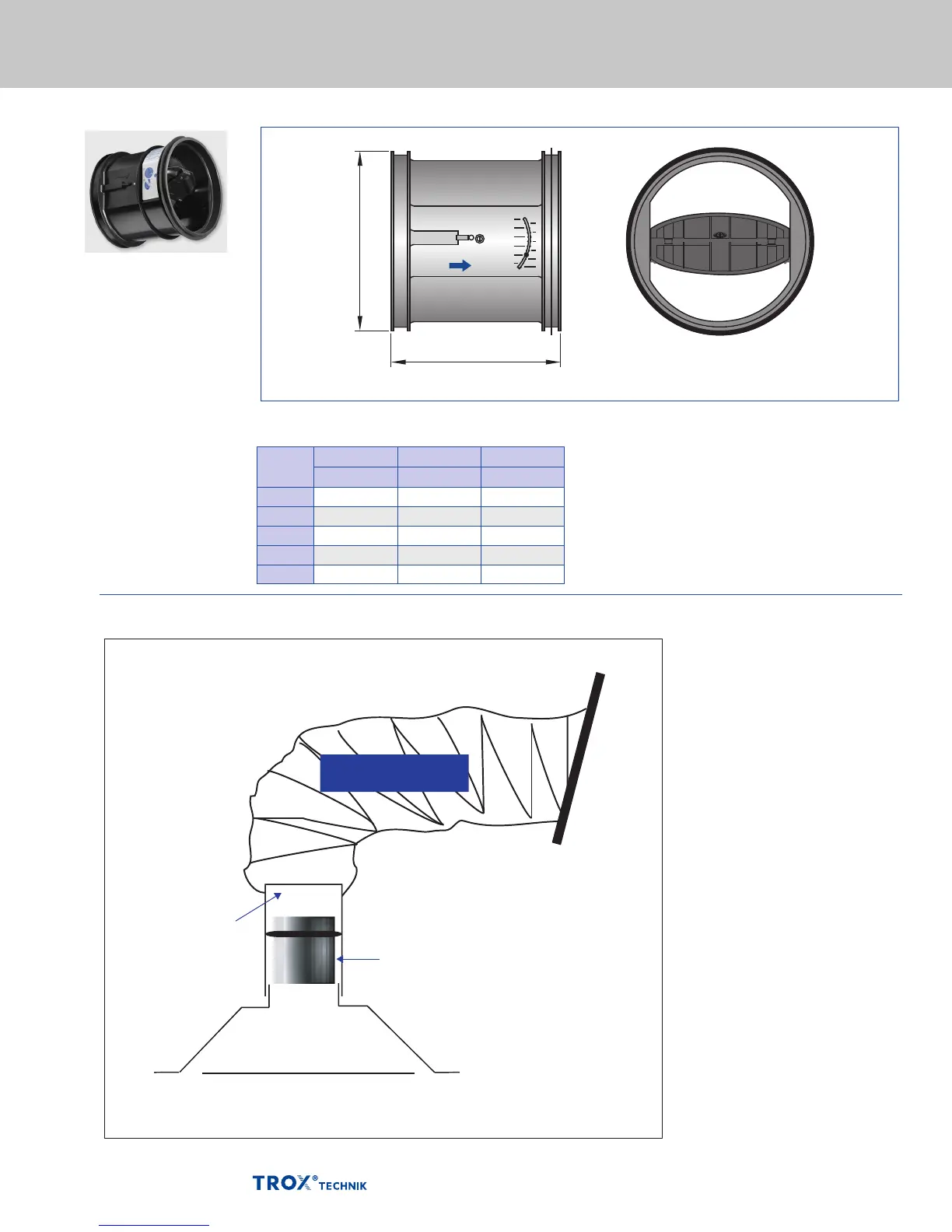

Dimensional drawing of VFL
ØD
L
Diffuser or grille
VFL by TROX
Duct
Collar
Flexible Duct
Installation example for
self-balancing of grilles
and diffusers
