6
3
Setting
Up Your
Chipper
Shredder
Vacuum
IMPORTANT: This unit is shipped without gasoline or oil
in the engine. Be certain to service engine with gasoline
and oil as instructed in the separate engine manual
before operating your machine.
Loose Parts In Carton
a. Upper and Lower Handle
b. Hose Assembly
c. Safety Glasses
d. Engine Oil (May be located in bag)
e. Bag
NOTE: All references in this manual to the left or right
side of the chipper shredder vacuum is from the operating
position only. Exceptions, if any, will be specified.

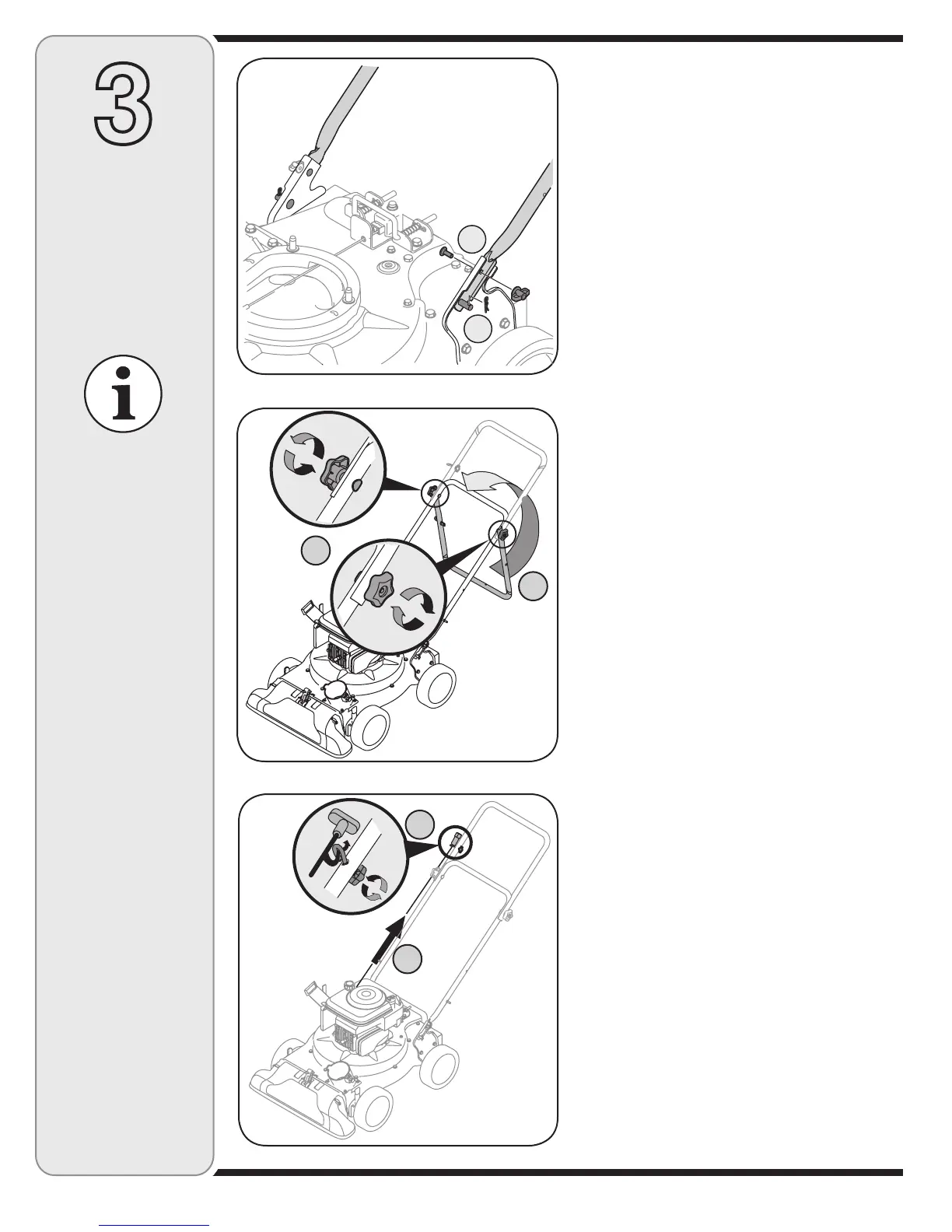

Attaching The Handle
1. Remove the hairpin clips from the handle brackets and
remove the carriage screws and wing nuts from the
lower handle.
a. Place the bottom holes in lower handle over the
pins on the handle brackets and secure with
hairpin clips. See Figure 3-1.
b. Insert carriage screws through upper hole in lower
handle from the inside and secure with wing nuts.
See Figure 3-1.
2. a. Unfold the upper handle until it aligns with lower
handle. Make sure the rope guide is on the right
side of upper handle. See Figure 3-2.
IMPORTANT: Make sure the cables are routed outside
the lower handle. Also, do not crimp the cables while
lifting up the handles.
b. Secure the two handles by tightening the star
knobs (carriage bolts must be seated properly into
the handle). See Figure 3-2.
3. Pull the two cable ties attached to the cables tight
approximately 8 inches from each cable end and place
the cables into the cable guide.
4. Loosen the wing nut that secures the rope guide to the
right side of upper handle.
a. Slowly pull starter rope out of engine.
b. Slip the starter rope into the rope guide. Tighten the
wing nut. See Figure 3-3.
Figure 3-3
Figure 3-2
NOTE: All references
in this manual to the
left or right side of
the chipper shredder
vacuum is from the
operating position only.
Exceptions, if any, will
be specified.
Figure 3-1
IMPORTANT
This unit is shipped
without gasoline or
oil in the engine. Be
certain to service
engine with gasoline
and oil as instructed
in the separate engine
manual before operat-
ing your machine.
A
B
A
B
A
B
