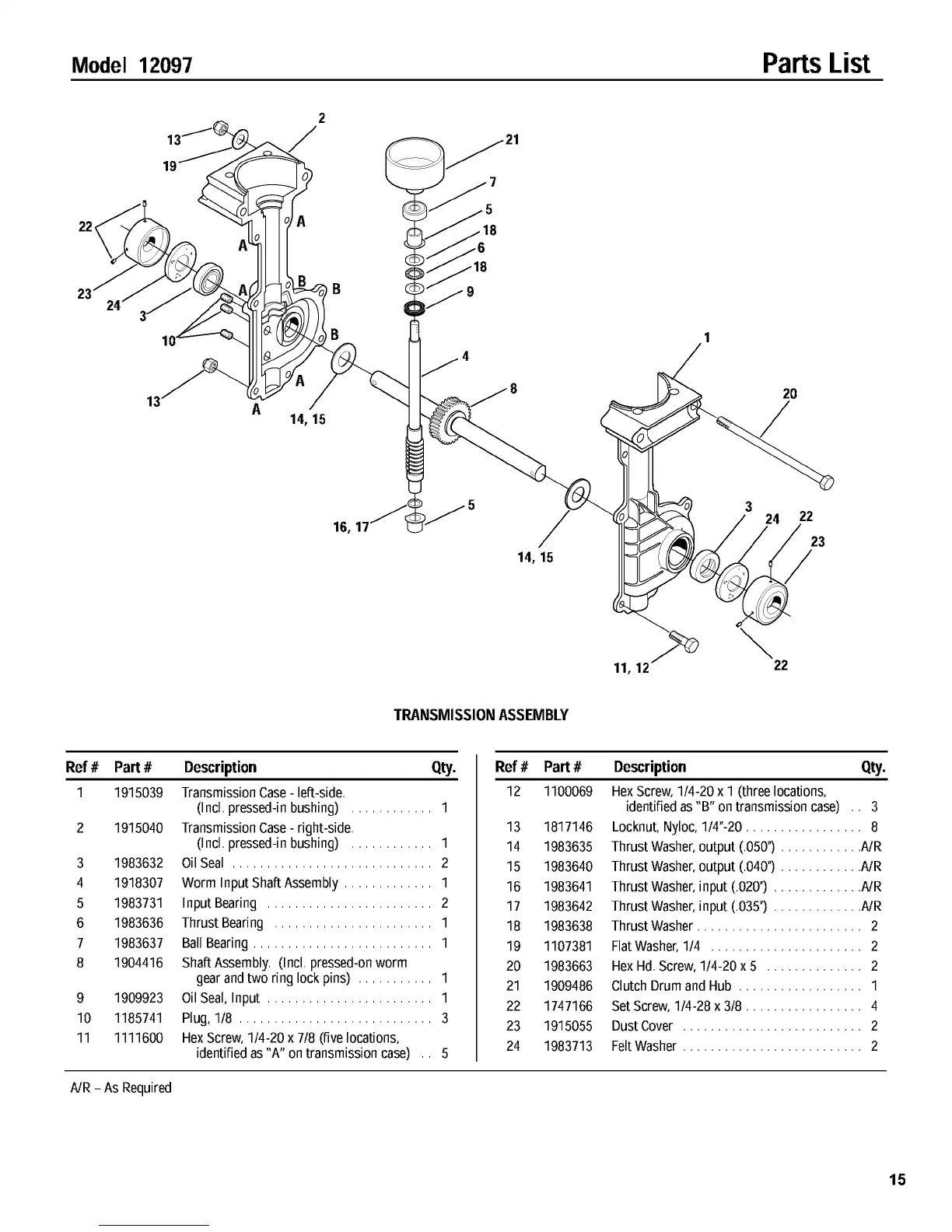

Model 12097 Parts List
A
B 9
B
A
14, 15
20
14,15
22
23
11,12
\
22
TRANSMISSIONASSEMBLY
Ref# Part #
1 1915039
3
4
5
6
7
8
1915040
1983632
1918307
1983731
1983636
1983637
1904416
9 1909923
10 1185741
11 1111600
Description City.
Transmission Case - left-side,
(incl, pressed-in bushing) ............ 1
Transmission Case - right-side,
(incl, pressed-in bushing) ............ 1
OilSeal ............................. 2
Worm Input Shaft Assembly ............. 1
Input Bearing ........................ 2
ThrustBearing ....................... 1
Ball Bearing .......................... 1
ShaftAssembly, (Incl, pressed-on worm
gear andtwo ring lockpins) ........... 1
OilSeal, Input ........................ 1
Plug, 1/8 ............................ 3
HexScrew, 1/4-20 x 7/8 (five locations,
identified as "A" on transmission case) ,, 5
Ref# Part #
12 1100069
13 1817146
14 1983635
15 1983640
16 1983641
17 1983642
18 1983638
19 1107381
20 1983663
21 1909486
22 1747166
23 1915055
24 1983713
Description City.
HexScrew, 114-20x 1 (three locations,
identified as "B" on transmission case) ,, 3
Locknut, Nyloc, 1/4"-20 ................. 8
Thrust Washer,output (,050") ............ NR
Thrust Washer,output (,040") ............ NR
Thrust Washer,input (,020") ............. NR
Thrust Washer,input (,035") ............. NR
Thrust Washer ........................ 2
FlatWasher, 1/4 ...................... 2
Hex Hal,Screw, 114-20x 5 .............. 2
Clutch Drum and Hub .................. 1
Set Screw,1/4-28 x 3/8 ................. 4
Dust Cover .......................... 2
FeltWasher .......................... 2
AIR - As Required
15
