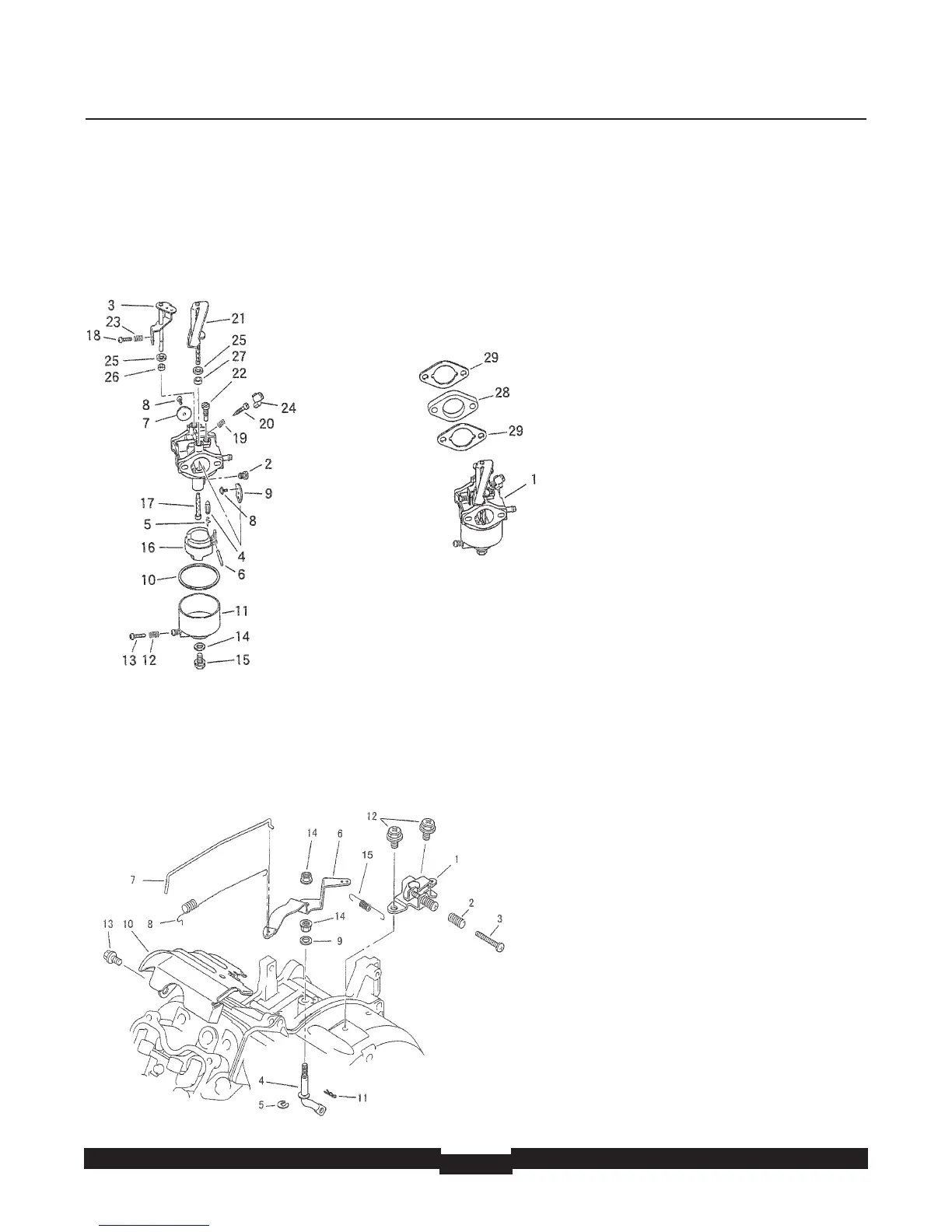

EXPLODED VIEW AND PARTS LIST – ENGINE
Carburetor, Control/Linkages
Item Part # Qty Description
1 187469GS 1 CARB, COMPLETE
2 187471GS 1 JET, MAIN
3 187476GS 1 SHFT, THROTTL
4 187480GS 1 VLV, NEEDLE
5 187482GS 1 CLIP, CARB
6 187483GS 1 PIN, CARB
7 187485GS 1 VLV, THRTTL
8 187491GS 3 HHCS, CARB
9 187493GS 1 VLV, CHOKE
10 187495GS 1 GSKT, CARB
11 187499GS 1 CHMBR, FLOAT
12 187502GS 1 SPRING, CARB
13 187509GS 1 HHCS, CARB
14 187511GS 1 GSKT, CARB
15 187525GS 1 BOLT, CARB
16 187536GS 1 FLOAT, CARB
17 187538GS 1 NZZL, MAIN, CARB
18 187542GS 1 HHCS, CARB
19 187502GS 1 SPRING, CARB
20 187547GS 1 ADJSTR, CARB
21 187548GS 1 LEVER, CHOKE
22 187549GS 1 JET, PILOT
23 187550GS 1 SPRING, CARB
24 187551GS 1 CAP, CARB
25 187552GS 2 PACKING, CARB
26 187553GS 1 SEAL, CARB
27 187554GS 1 SEAL, CARB
28 187556GS 1 INSLTR, CARB
29 187504GS 2 GSKT, CARB
Item Part # Qty Description
1 187505GS 1 BRKT, SPEED CNTRL
2 187506GS 1 SPRING, SPEED CNTRL
3 187507GS 1 SCREW, SPEED CNTRL
4 187508GS 1 SHFT, GOV
5 187510GS 1 RING, SNAP, GOV ROD
6 187512GS 1 LEVER, GOV
7 187513GS 1 ROD, GOV
8 187514GS 1 SPRING, GOV LEVER
9 187515GS 1 WSHR, GOV LEVER
10 187516GS 1 CVR, TOP
11 187517GS 1 CLIP, GOV ROD
12 187518GS 1 BOLT, SPEED CNTRL BKT
13 187519GS 1 BOLT, TOP CVR
14 187520GS 2 NUT, GOV LEVER
15 187570GS 1 SPRING, GOV
Section 9: Exploded Views and Parts Lists
