Section 9: Exploded Views and Parts Lists
Item Part # Description
1 186059GS ADAPTER, Mounting,Alternator
2 192171GS ROTOR
3 192186AGS STATOR
4 193336GS RBC, (with O-Ring p/n 189197GS)
5 86308KGS SCREW
6 66386GS ASSY, Holder, Brush
7 66849GS SCREW
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll
10 193428AGS ASSY,Wire, Ground
11 66849CGS SCREW
13 65795GS RECTIFIER
14 191653GS BOARD, Circuit, System Control
15 193074GS HARNESS,Wire DC Charge

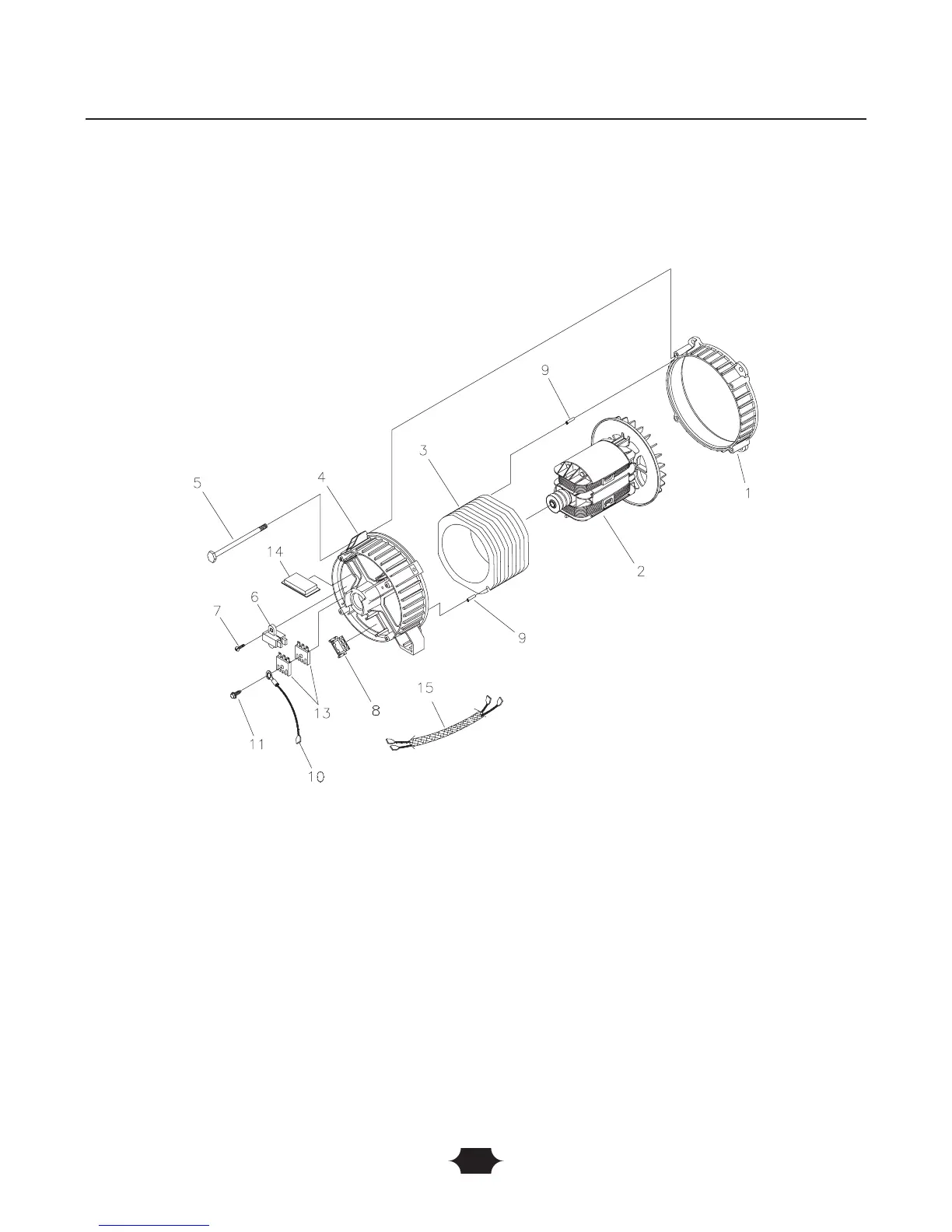

ALTERNATOR EXPLODED VIEW & PARTS LIST
