ASSEMBLY
IMPORTANT: Read entire operator’s manual before you
attempt to assemble or operate your new pressure washer.
Remove Pressure Washer From
Carton
• Remove high pressure hose, handle, and parts box
included with pressure washer.
• Slice two corners at end of carton from top to bottom
so panel can be folded down flat, then remove all
packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main unit
• High pressure hose
• Spray gun with quick connect fitting
• Nozzle extension with quick connect fitting
• Handle
• Engine oil
• Safety goggles
• Parts Bag (includes the following):
• Owner’s registration card
• Bag containing 5 multi–colored quick connect
spray tips
• Operator’s manual
• Engine operator’s manual
• Emissions control warranty sheet
• Handle Fastening Hardware Kit (which includes):
• Carriage Bolts (2)
• Plastic Knobs (2)
If any of the above parts are missing or damaged, call the
pressure washer helpline at 1-888-611-6708.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-888-611-6708.
To prepare your pressure washer for operation, you
will need to perform these tasks:
1. Fill out and send in registration card.
2. Verify oil dipstick has been installed into pump (Figure 1).
3. Attach handle to main unit.
4. Add oil to engine.
5. Add fuel to fuel tank.
6. Connect high pressure hose to spray gun and pump.
7. Connect water supply to pump.
8. Connect nozzle extension to spray gun.
9. Select and install desired quick connect spray tip.
3
Section
Assembly

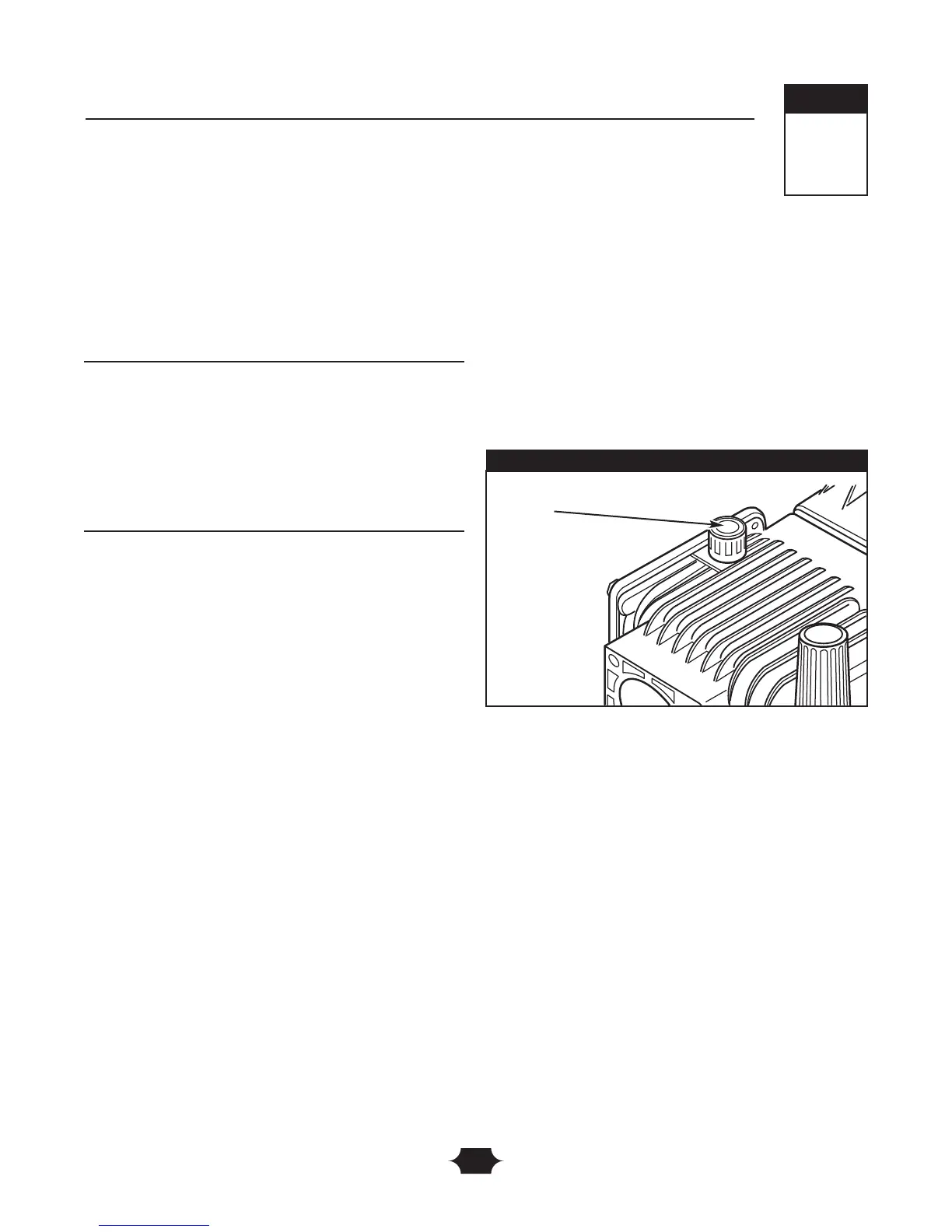

Figure 1 — Pump Dipstick
Pump Oil Dipstick
