Troy-Bilt 34337 - Page 8

8 Section 2: Assembly
11*
15*
13
16
17
14
Ref. Description Qty.
11 Mounting Bracket (already installed).............1
12 Hex Flange Screw, 3/8"–16 x 1-1/4" long ......3
13 Flat Washer, 3/8"...........................................3
14 Centerlock Nut, 3/8"–16................................3
15 Knife Head.....................................................1
16 Metric Hex Head Screw, M8 x M25...............2
17 Metric Internal Tooth Lockwasher, M8 .........2
18 Pitman Arm Assembly ..................................1
19 Shoe Holder..................................................2
20 Carriage Bolt, 5/16"–18 x 1" ..........................4
21 Shoe..............................................................2
22 U-Bolt, 5/16" x 18..........................................2
23 Flat Washer, 5/16".........................................4
24 Weed Diverter ...............................................1
25 Upper Hook ..................................................1
26 Doubler Plate ................................................1
27 Flange Nut 1/4"– 20.......................................2
28 Flat Washer, 1/4"...........................................1
29 Hex Head Screw, 1/4"–20 x 1-1/4" long.........1
30 Battery Charger (optional - not shown).........1
31 Key (In Keyswitch) (optional - not shown)....1
18*
19*
21*
20
25
27
24*
22
23
26*
12

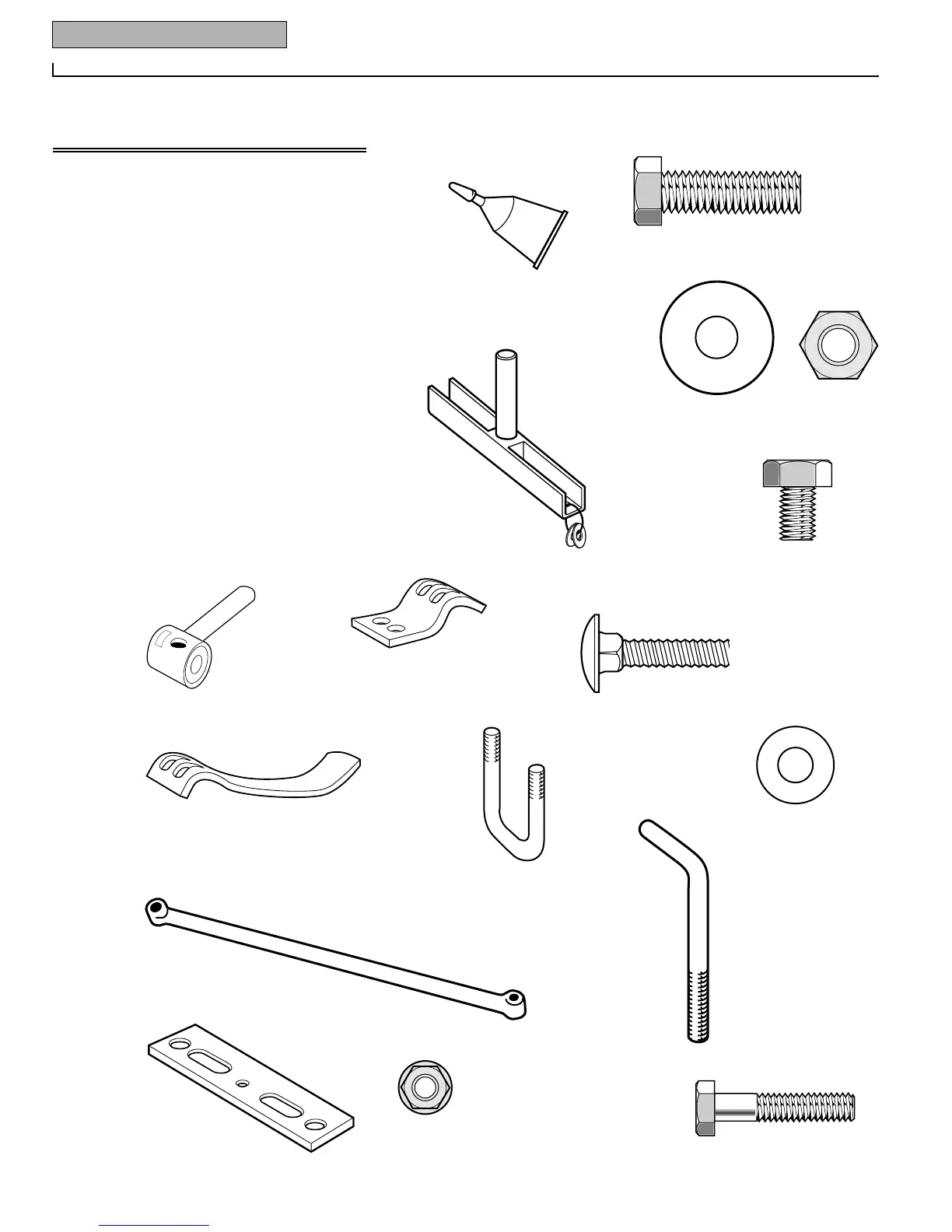

Ref. Description Qty.
11 Loctite
®
Thread Fastener, (bottle or tube)....1
12 Hex Cap Screw, 3/8"–16 x 1-1/4" (Grade 8) ..3
13 Flat Washer, hardened, 3/8" ..........................3
14 Centerlock Nut, 3/8"–16................................3
15 Knife Head.....................................................1
16 Metric Hex Head Screw, M8 x M12...............2
-- Flat Washer, hardened, 5/16" (wire-tied to
knife head (Ref. 15) -- do not remove
until instructed to do so) ..........................2
18 Pitman Arm Assembly ..................................1
19 Shoe Holder..................................................2
20 Carriage Bolt, 5/16"–18 x 1" ..........................4
21 Shoe..............................................................2
22 U-Bolt, 5/16" x 18..........................................2
23 Flat Washer, 5/16".........................................5
24 Weed Diverter ...............................................1
25 Upper Hook ..................................................1
26 Doubler Plate ................................................1
27 Flange Nut 1/4"– 20.......................................2
28 Hex Head Screw, 1/4"–20 x 1-1/4" ...............1
29 Battery Charger (optional - not shown).........1
30 Key (optional - not shown) ...........................1
11
12
13
14
16
18*
19*
20
22
23
25
27
28
24*
26*
21*
15*
