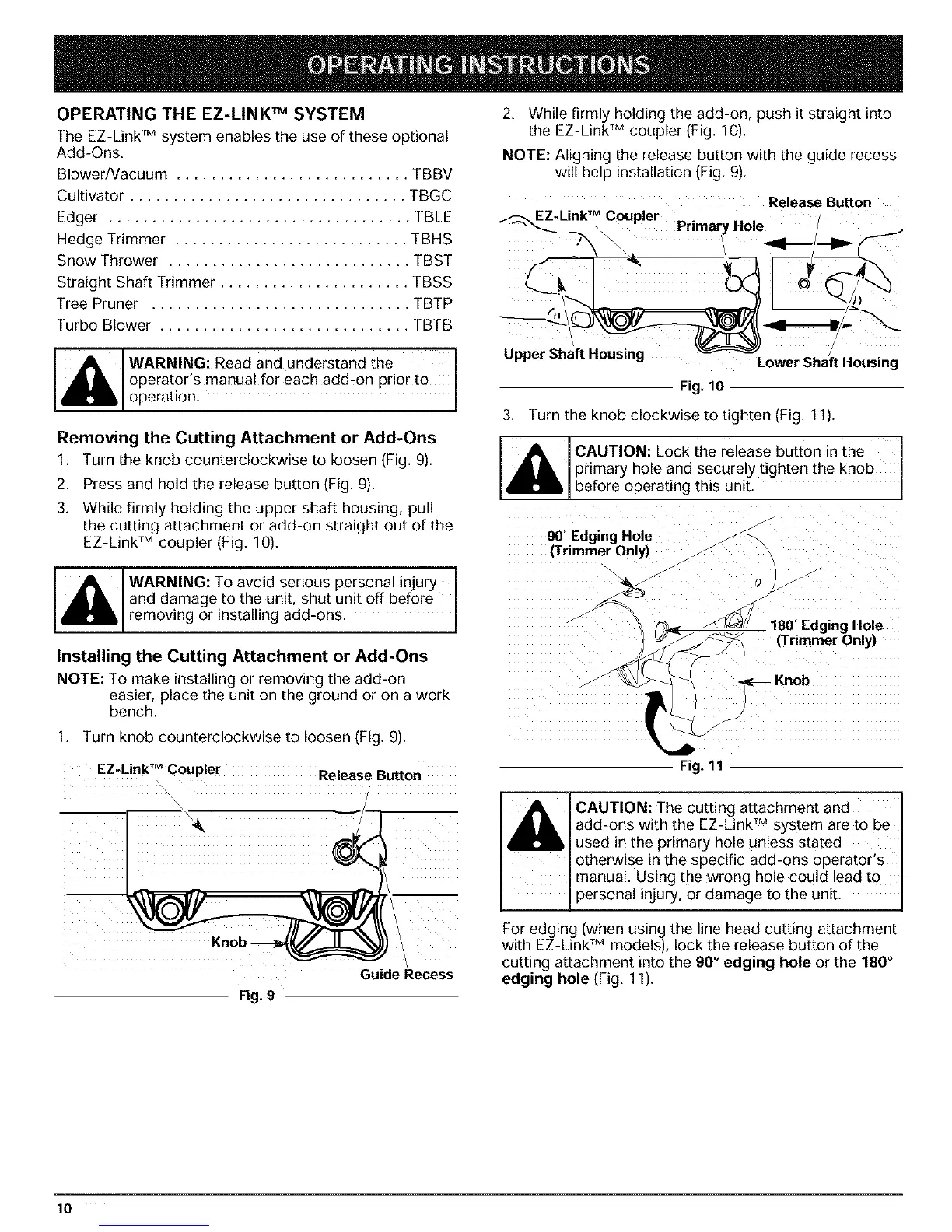

OPERATING THE EZ-LINW M SYSTEM
The EZ-Link TM system enables the use of these optional
Add-Ons.
Blower/Vacuum ........................... TBBV
Cultivator ................................ TBGC
Edger ................................... TBLE
Hedge Trimmer ........................... TBHS
Snow Thrower ............................ TBST
Straight Shaft Trimmer ...................... TBSS
Tree Pruner .............................. TBTP
Turbo Blower ............................. TBTB
_[WARNING: Read and understand the
operator s manual for each add-on prior to
operation.
Removing the Cutting Attachment or Add-Ons
1. Turn the knob counterclockwise to loosen (Fig. 9).
2. Press and hold the release button (Fig. 9).
3. While firmly holding the upper shaft housing, pull
the cutting attachment or add-on straight out of the
EZ-Link TM coupler (Fig. 10).
I_IWARNING: To avoid serious personal injury I
and damage to the unit, shut unit off be[ore
remov ng or nsta ng add-ons.
Installing the Cutting Attachment or Add-Ons
NOTE: To make installing or removing the add-on
easier, place the unit on the ground or on a work
bench.
1. Turn knob counterclockwise to loosen (Fig. 9).
EZ:LinkTM coupler Release Button
2. While firmly holding the add-on, push it straight into
the EZ-Link TM coupler (Fig. 10).
NOTE: Aligning the release button with the guide recess
will help installation (Fig. 9).
Release Button
EZ-LinkTM Coupler
Hole
Upper Shaft Housing /
Lower Shaft Housing
Fig. 10
3. Turn the knob clockwise to tighten (Fig. 11).
CAUTION: Lock the release button in the
primary hole and securely tighten the knob
before operat ng th sun t.
90_Edging Hole
(Trimmer Only)
L
Fig. 11
Hole
(Trimmer Only)
Knob
CAUTION: The cutting attachment and
add-ons with the EZ-Link TM system are to be
used in the pnmary hole unless stated
otherwise m the specific add-ons operator's
manual. Using the wrong hole could lead to
personal injury, or damage to the untt
Knob
\
Guide Recess
Fig.9
For edging (when using the line head cutting attachment
with EZ-Link TM models_ ock the release button of the
cutting attachment into the 90 ° edging hole or the 180°
edging hole (Fig 11L
