Chipper / Shredder Servicing
6
5.4. Remove the four hex cap screws securing the
tube support to the frame assembly. See Figure
15.
NOTE: Support the frame after removal of the
support tube.
5.5. Remove all of the hex cap screws securing the
outer flail housing assembly to the inner hous-
ing. Remove the outer housing. See Figure 16.
5.6. The flails can be inspected and replaced by
removing the roll pin retainer clip, roll pin and
clevis pin. See Figure 17.
IMPORTANT: The roll pin should be replaced if it
is removed for any reason.

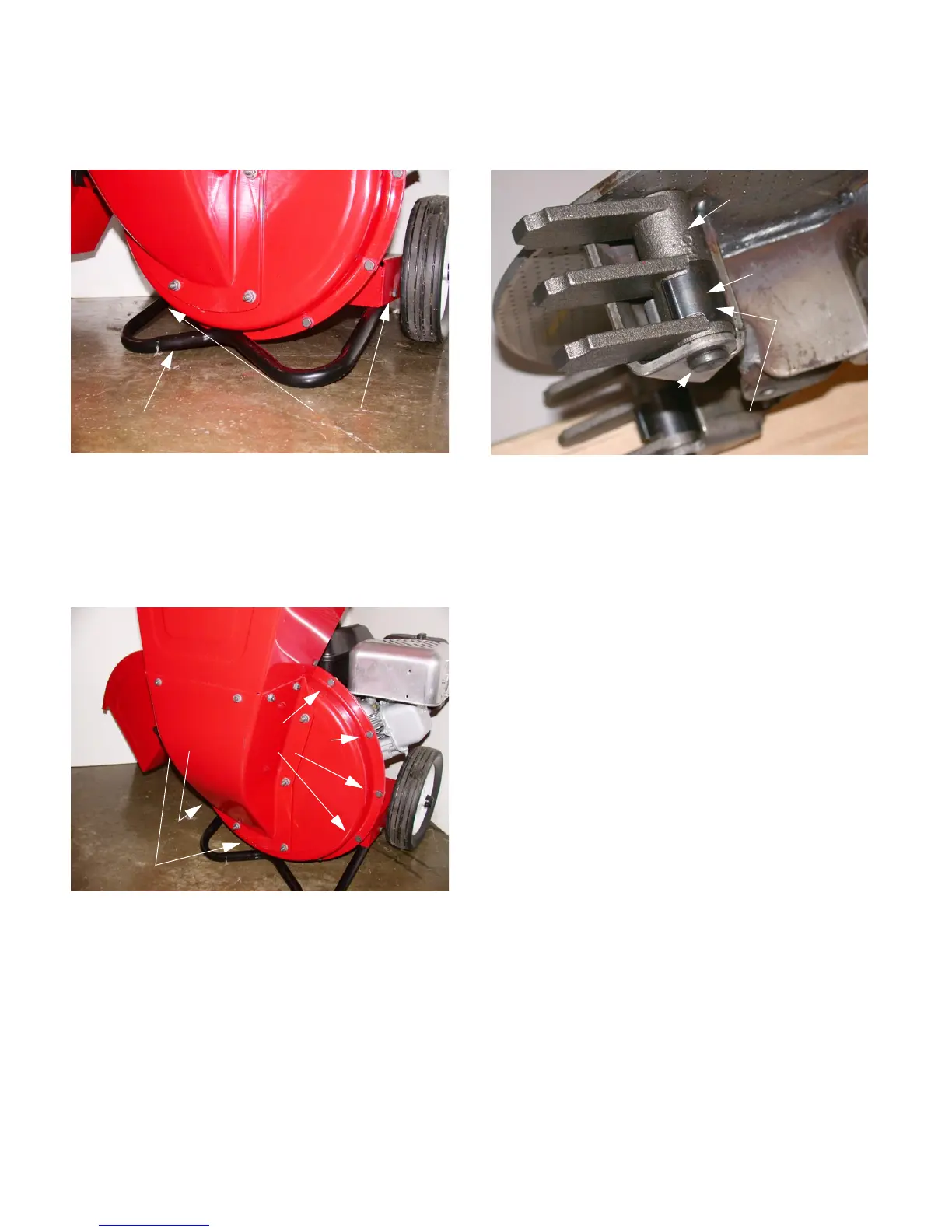

Figure 15
Hex Cap Screws
Tube Support
Figure 16
Perimeter Hex Cap Screws
Figure 17
Flail
Roll Pin Retainer Clip
Roll Pin (Under Retainer)
Clevis Pin
