9se c t i O n 3 — as s e M b l y & se t -up
Adjustments
Nozzle Height
The nozzle can be adjusted to any six positions, ranging from
adjusted according to chipper shredder conditions.
Depress nozzle height adjustment lever towards wheel.
See Fig. 3-7.
Move the height adjustment lever forward or backward to 2.
adjust the nozzle upwards or downwards. Make sure both
levers are in the same position.
Release lever towards deck. See Fig. 3-7.3.
NOTE: In general, raise the nozzle height to vacuum a
thick layer of leaves. Lower the nozzle height for smoother
surfaces.
Set-Up
Gas and Oil Fill-Up
engine information.
Add oil provided before starting unit for the first time out
of the box.
Service the engine with gasoline as instructed in the 2.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
WARNING: Never fill fuel tank indoors with engine
running or until the engine has been allowed to cool
for at least two minutes after running.
Bag
Grasp bag handle with one hand and slide locking rod on
mounting bracket with other hand toward engine. Use
the end of mounting bracket as leverage when sliding the
Slip bag over the rim of the discharge opening and release 2.
locking rod to secure bag in place.
Snap bag clip to the top of the lower handle.3.
NOTE: The bag/chute switch button attached to the
mounting bracket must be fully depressed by the tip of
front tab on bag handle when securing the bag or engine
will not start.

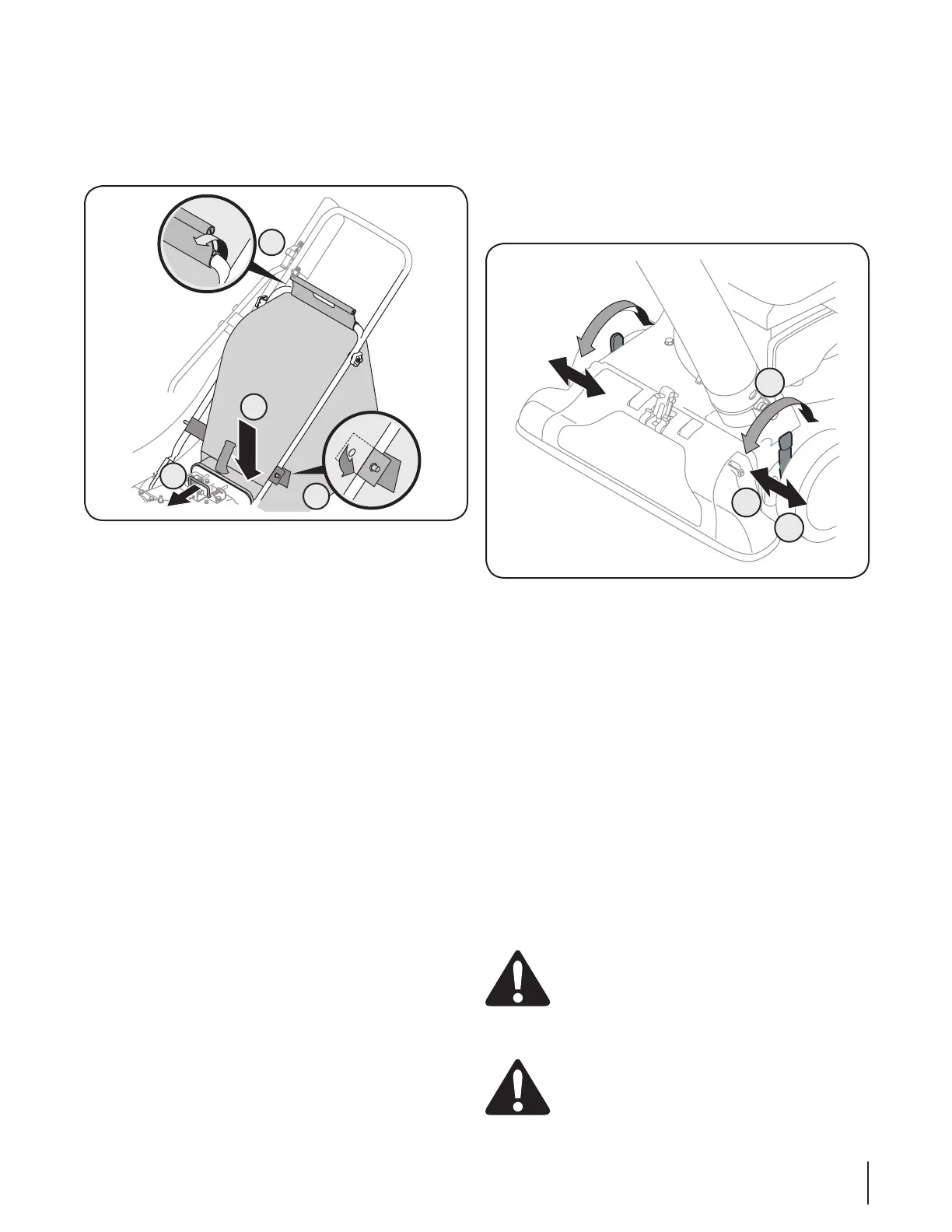

Figure 3-7
Figure 3-6
