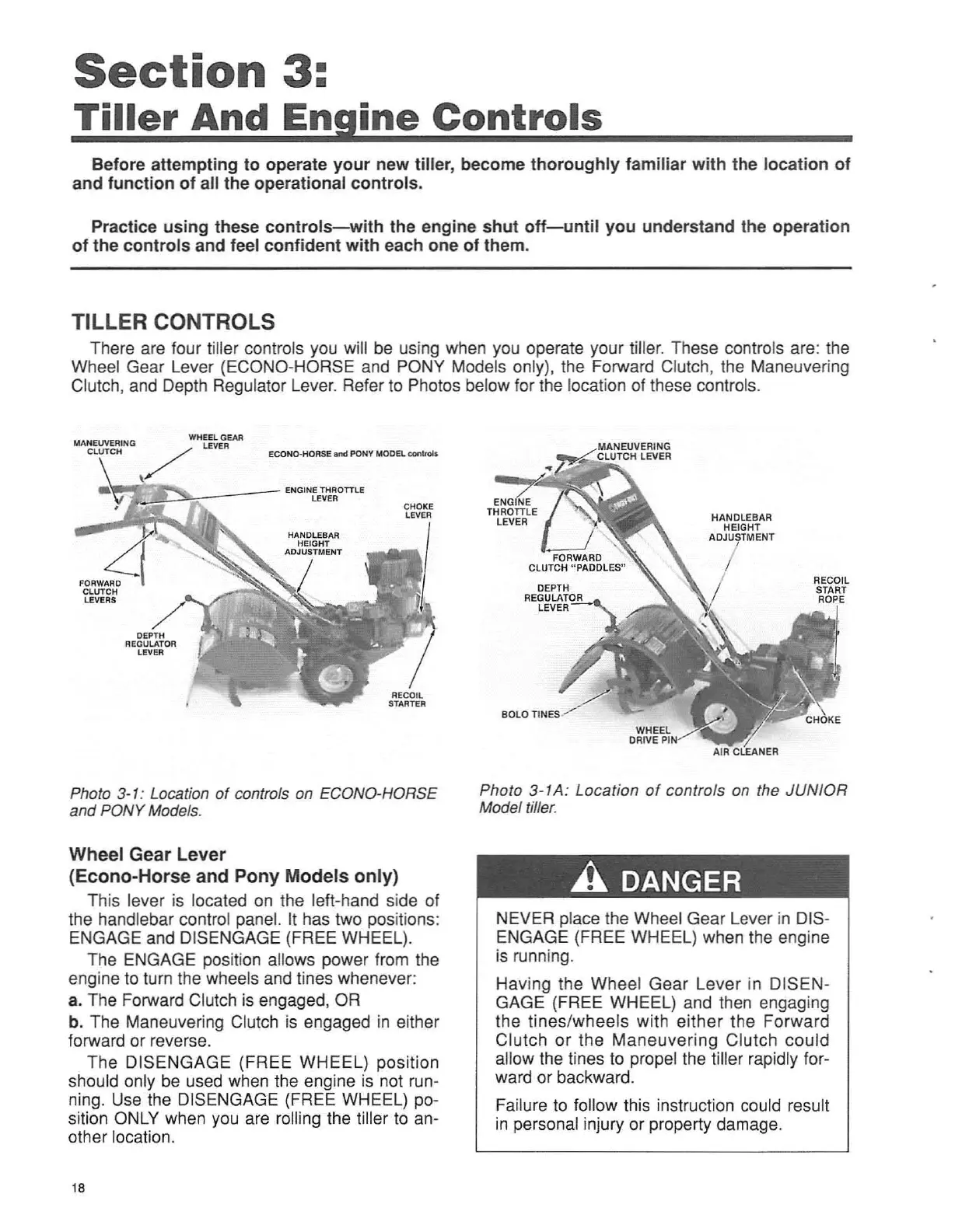

Section 3:
T ill er And Eng ... in ... e ...... C .... o .... n....,t_r ... o....,ls ...... _
Before attempting to operate you r new tiller, become thoroug hly familiar with the location of
and
function of all the operational c ontr ols.
Practice
using the se contr ol s-with the engine shut off-until you unders tand the operation
of the controls and feel conf ident with each one of them.
TILLER CONTROLS
There are four tiller controls you will be using when you operate your tiller. These controls are: the
Wheel Gear Lever (ECONO-HORSE and PONY Models only). the Forward Clutch, the Maneuvering
Clutch, and Depth Regulator Lever. Refer to Photos below for the location of these controls.
ECON O -HOR SE and PONY M ODEL COf'l \lol s
MANEUVERING WHEELGEAR
CLUTCH , / LE VER
.~ ,!: ~~~ ENGINE THROn l E
- ~ LEVER
H AN DLEBAR
HEIGHT
ADJU STMENT
/
DEPTH
RE GULATOR
LEVER
RECOIL
STARTER
DEPTH
REGULATOR
LEVER-
HANDLEBAR
HEIGHT
"D i TMENT
Photo 3-t : Location of controls on ECONO-HORSE
and PONY Models.
Wh eel Gear L ev er
(Ec ono -H or se and P ony Models only)
This lever is located on the left-hand side of
the handlebar control panel. It has two positions:
ENGAGE and DISENGAGE (FREE WHEEL).
The ENGAGE position allows power from the
engine to turn the wheels and tines whenever:
a. The Forward Clutch is engaged. OR
b. The Maneuvering Clutch is engaged in either
forward or reverse.
The DISENG AGE (FREE WHEEL) position
should only be used when the engine is not run-
ning. Use the DISENGAGE (FREE WHEEL) po-
sition ONLY when you are rolling the tiller to an-
other location.
18
AIR ClEANER
Photo 3-t A: Location of controls on the JUN IOR
Model tiller.
.A DANGER
NEVER place the Wheel Gear Lever in DIS-
ENGAGE (FREE WHEEL) when the engine
is running.
Having the Wheel Gear Lever in DISEN-
GAGE (FREE WHEEL) and then engaging
the tines/wheels with either the Forward
Clutch or the Maneuvering Clutch could
allow the tines to propel the tiller rapidly for-
ward or backward.
Failure to follow this instruction could result
in personal injury or property damage.
