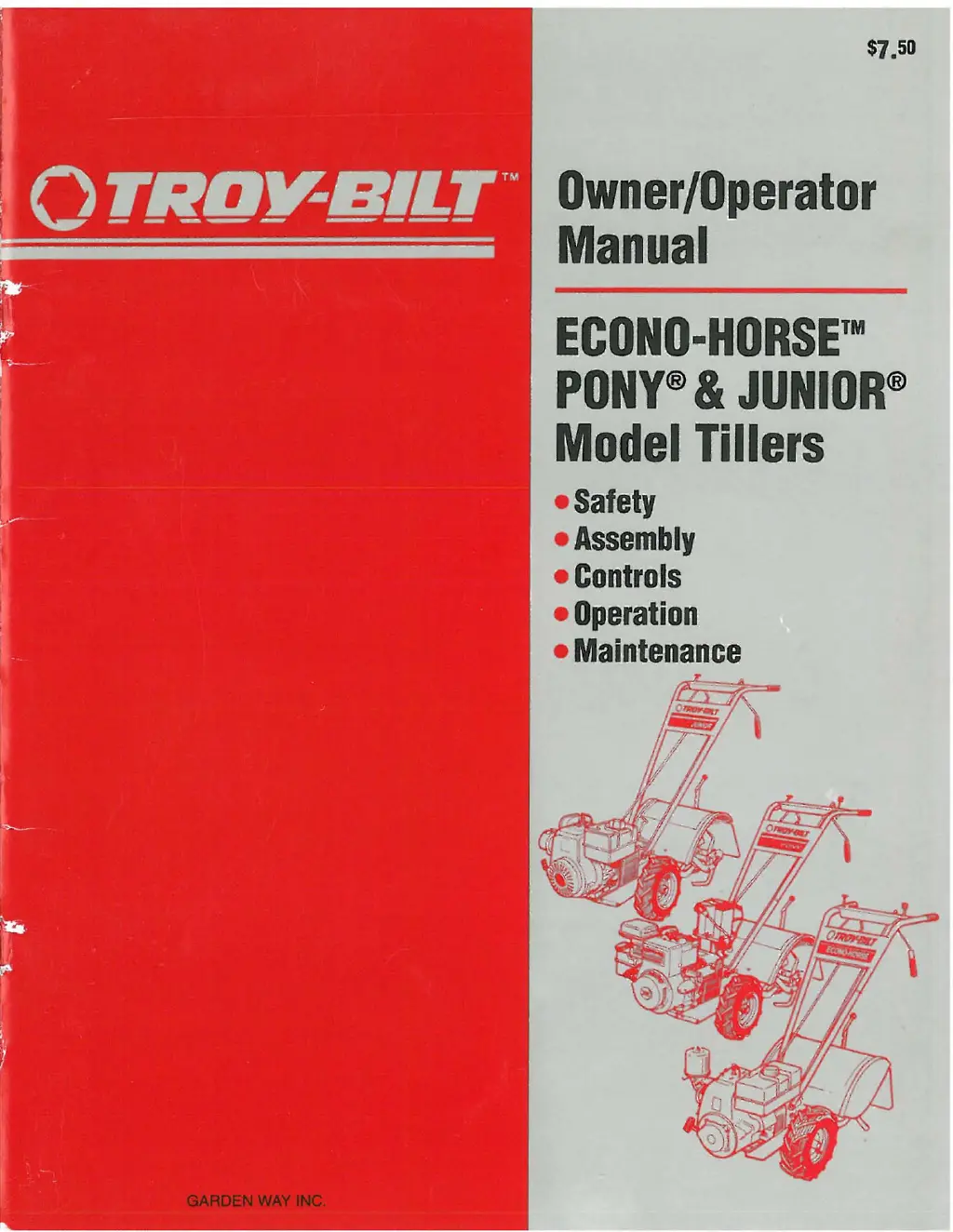

Troy-Bilt JUNIOR - User Manual

Other manuals for Troy-Bilt JUNIOR

Technical Manual24 pages

Questions and Answers

Z
Zachary HollowayAug 16, 2025
Why is oil leaking from the wheel shaft oil seals on my Troy-Bilt JUNIOR?
- L
  Lisa StuartAug 16, 2025
  Oil leakage from the wheel shaft oil seals may occur if an oil seal is worn or damaged. In this case, check for side-to-side and vertical play in the wheel shaft and replace the seal. Also, give new seals time to lap in. Inspect the wheel shaft for minor damage at the oil seal location. Be sure the transmission is filled with SAE 90 or 140 gear oil because a lighter viscosity oil will cause leakage. Ensure that a non-hardening gasket sealer was applied to the outside diameter of the oil seal prior to its installation and that the housing bore has no nicks or scratches that would permit oil to seep out between the seal and the housing.
K
Kimberly GriffinAug 19, 2025
What to do if oil is leaking from the rear of the tiller housing on my Troy-Bilt JUNIOR?
- E
  Erik McdonaldAug 19, 2025
  If oil is leaking from the rear of the tiller housing, make sure the seals have non-hardening gasket sealer around the outside edges and replace the seal if it is worn or damaged. Inspect the tiller tine shaft for minor damage at the oil seal location. Check for sand holes (imperfections in the cast iron) or cracks in the housing. Apply non-hardening gasket sealer to each of the tiller housing cover screws and tighten them. Replace any worn or damaged gaskets. Ensure the housing cover bore and the housing bore have no nicks or scratches that would permit oil to seep out, and check for excessive play in the tiller tine shaft.
K
Kimberly FischerAug 22, 2025
What to do if oil is leaking from the transmission housing cover on my Troy-Bilt JUNIOR Lawn and Garden Equipment?
- J
  Jamie HolderAug 22, 2025
  If oil is leaking from the transmission housing cover, make sure the housing cover bolts are tight. Check if the oil level is too high; if so, drain the oil to the proper level. Also, check to see if the threads on the plastic oil fill plug are stripped and replace a worn or damaged gasket.
L
Lauren WilsonAug 26, 2025
How to fix oil leaking from the oil seal on the input pinion shaft of my Troy-Bilt JUNIOR?
- J
  Jordan CruzAug 26, 2025
  To address oil leaking from the oil seal on the input pinion shaft, first, make sure the leak is at the front oil seal. Check the transmission gear oil level when the unit is cold; if it is overfilled, drain it to the proper level. Replace a worn or damaged oil seal.
G
gweaverAug 28, 2025
How to stop oil from leaking from any pipe plug in the transmission housing of my Troy-Bilt JUNIOR?
- M
  Michael HodgeAug 28, 2025
  To stop oil from leaking from any pipe plug in the transmission housing, check to see if the plug is cross-threaded. You can also remove the pipe plug and apply a layer of non-hardening gasket sealer.
L
lauren03Aug 31, 2025
How to repair oil leaking from the front bearing cap or transmission bore seal on my older/newer model Troy-Bilt JUNIOR Lawn and Garden Equipment?
- R
  Robert MaddenAug 31, 2025
  For units equipped with a front bearing cap: Apply a coating of non-hardening gasket sealer to each of the front bearing cap screws and tighten the screws. Replace a worn or damaged gasket. If oil seeps through the cap, replace the cap. For units equipped with a transmission bore seal, replace the seal.
S
samantha35Sep 3, 2025
How to fix oil leaking from the eccentric shaft on my Troy-Bilt JUNIOR Lawn and Garden Equipment (Econo-Horse and Pony models only)?
- C
  Christopher MathisSep 3, 2025
  To fix oil leaking from the eccentric shaft (Econo-Horse and Pony models only), replace the oil seal and inspect the shaft for corrosion, pitting, or scoring.
C
cranemeganSep 6, 2025
Why won't the wheels and tines turn on my Troy-Bilt JUNIOR Lawn and Garden Equipment?
- J
  Julia RobbinsSep 6, 2025
  If the wheels and tines do not turn, check the tension on the drive belts (see Owner/Operator Manual). Also, make sure the input pinion assembly is in good condition and that all the parts are present. Check the condition of the bronze worm gear on the tiller tine shaft and the worm gear on the wheel shaft; one or both may be damaged.
D
dsmithSep 9, 2025
Why is there noise coming from the rear tiller bearing of my Troy-Bilt JUNIOR Lawn and Garden Equipment?
- M
  Maxwell SmithSep 9, 2025
  If you notice noise from the rear tiller bearing, inspect the drive shaft bearing and bearing race for wear or damage. Also, inspect the tine shaft bearings and the tiller shaft bronze worm gear for wear or damage.
M
Mark MitchellSep 12, 2025
What to do if the wheel shaft moves to one side on my Troy-Bilt Lawn and Garden Equipment?
- B
  barbara17Sep 12, 2025
  If the wheel shaft moves to one side, it may be because one or both snap rings are out of the groove(s). Check for excessive play in the wheel shaft; end play should be .000" to .005".
