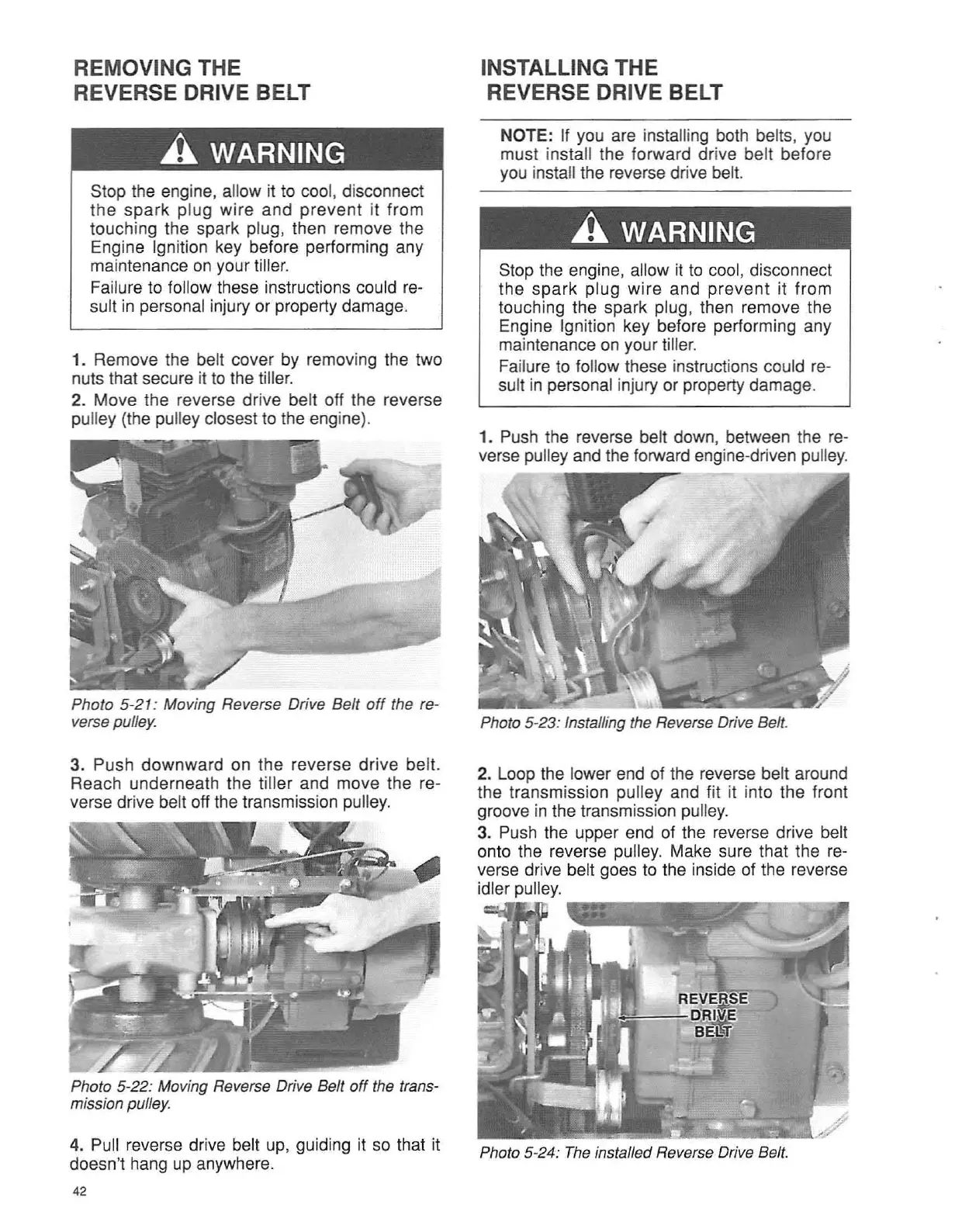

REMOVING THE
REVERSE DRIVE BELT
A WARNING
Stop the engine, allow it to cool, disconnect
the spa rk plug wire and prevent it from
touching the spark plug, then remove the
Engine Ignition key before performing any
maintenance on your tiller.
Failure to follow these instructions could re-
sult in personal injury or property damage.
1. Remove the belt cover by removing the two
nuts that secure it to the tiller.
2. Move the reverse drive belt off the reverse
pulley (the pulley closest to the engine).
Photo 5-21: Moving Reverse Drive Belt
off
the re-
verse pulley
3. Push downward on the reverse drive belt.
Reach underneath the tiller and move the re-
verse drive belt off the transmission pulley.
Photo 5-22: Moving Reverse Drive Belt off the trans-
mission pulley
4. Pull reverse drive belt up, guiding it so that it
doesn't hang up anywhere.
42
INSTALLING THE
REVERSE DRIVE BELT
NOTE: If you are installing both belts, you
must install the forward drive belt before
you install the reverse drive belt.
A WARNING
Stop the engine, allow it to cool, disconnect
the spark plug wire and prevent it from
touching the spark plug, then remove the
Engine Ignition key before performing any
maintenance on your tiller.
Failure to follow these instructions could re-
sult in personal injury or property damage.
1. Push the reverse belt down, between the re-
verse pulley and the forward engine-driven pulley,
Photo 5-23: Installing the Reverse Drive Belt.
2. Loop the lower end of the reverse belt around
the transmission pulley and fit it into the front
groove in the transmission pulley.
3. Push the upper end of the reverse drive belt
onto the reverse pulley. Make sure that the re-
verse drive belt goes to the inside of the reverse
idler pulley.
Photo 5-24: The installed Reverse Drive Belt.
