Troy-Bilt TB20DC - Page 63

E23
PARTS LIST
12
13
10
14
1
7
11
6
5
4
3
Item
Part No. Description
1 753-04234 Throttle Housing Assembly (includes 2-4)
2 791-182405 Switch
3 753-04119 Throttle Trigger
4 791-182690 Throttle Trigger Spring
5 753-04405 Throttle Cable
6 753-04344 Upper Drive Shaft Housing Assembly
7 791-180869 Deluxe D-Handle (includes 8 & 9)
8 753-05009 Deluxe D-Handle Base
9 791-181070 Screw
10 753-1190 Split Boom Coupler (includes 11-14)
11 791-182057 Screw
12 791-181617 Bolt
13 791-181981 Adjustment Knob
14 753-04386 Knob Retaining Nut
15 753-04508 Lower Drive Shaft Housing Assembly
16 753-04282 Guard Mounting Hardware
17 753-04283 Guard Assembly (includes 16 & 18)
18 791-180553 Blade Assembly
19 753-04284 Outer Spool Assembly (includes 20)
20 791-610660 Retainer
21 791-610317B Spring
22 753-1155 Inner Reel
23 791-153066B Bump Head Knob Assembly
Optional Accessories
* 791-153577B Reel and Line Assembly
* Items Not Shown
17
23
19
22
16
18
21
15
1
9
16
20
2
8

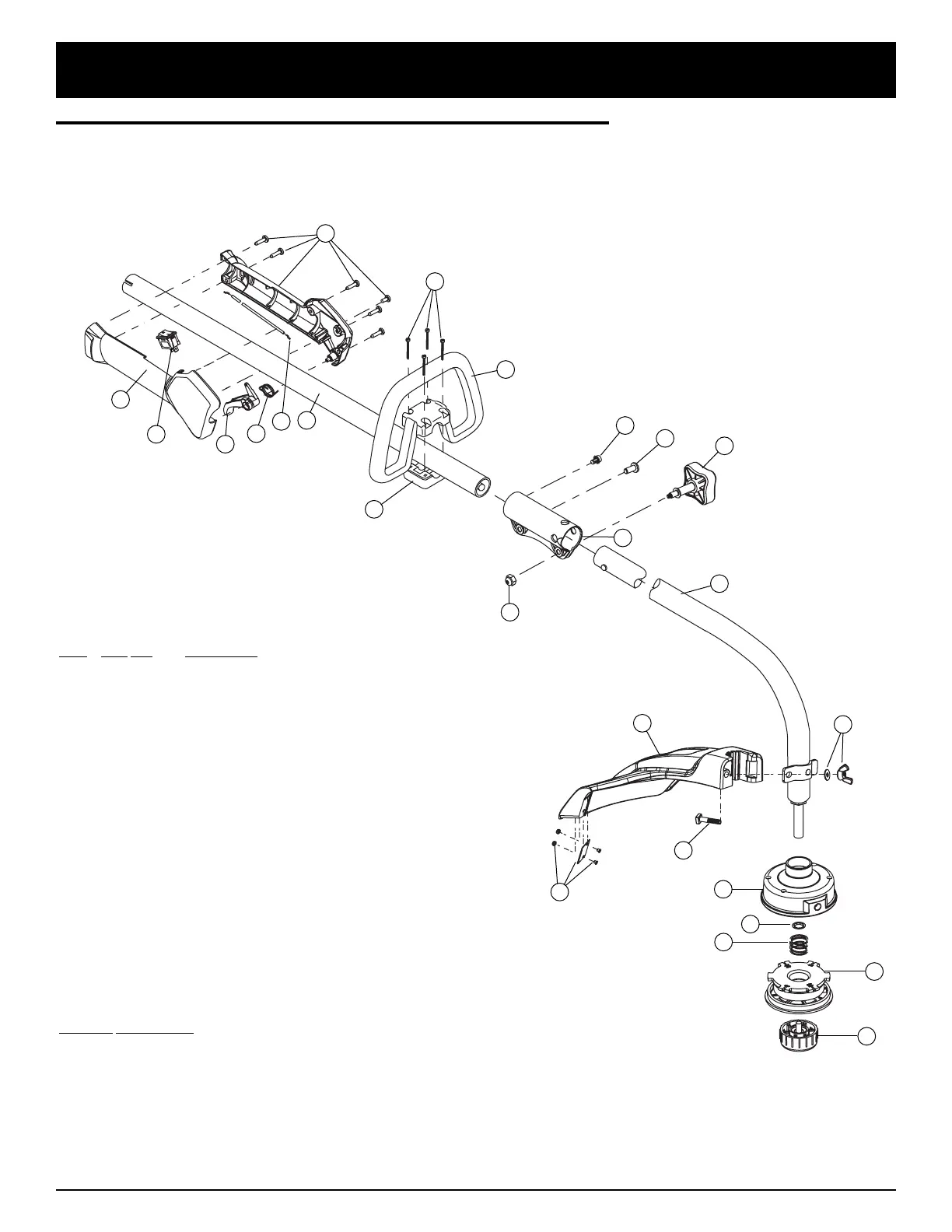

BOOM PARTS - TB20DC
2-CYCLE GAS TRIMMER
