INSTALLING AND REMOVING THE CUTTING HEAD SHIELD
Installing the Cutting Head Shield
1. Place the cutting head shield over the shield mount surface on
the brush blade guard (Fig. 18).
2. Insert the screws (x3) through the screw holes on the cutting
head shield (Fig. 18).
3. Tighten the screws with a Phillips screwdriver.
Removing the Cutting Head Shield
1. Unscrew the screws (x3) on the cutting head shield with a
Phillips screwdriver (Fig. 18).
2. Store the parts for future use.
WARNING: DO NOT install the cutting head shield when
operating the unit as a brushcutter. Remove the cutting
head shield before removing or installing the blade.

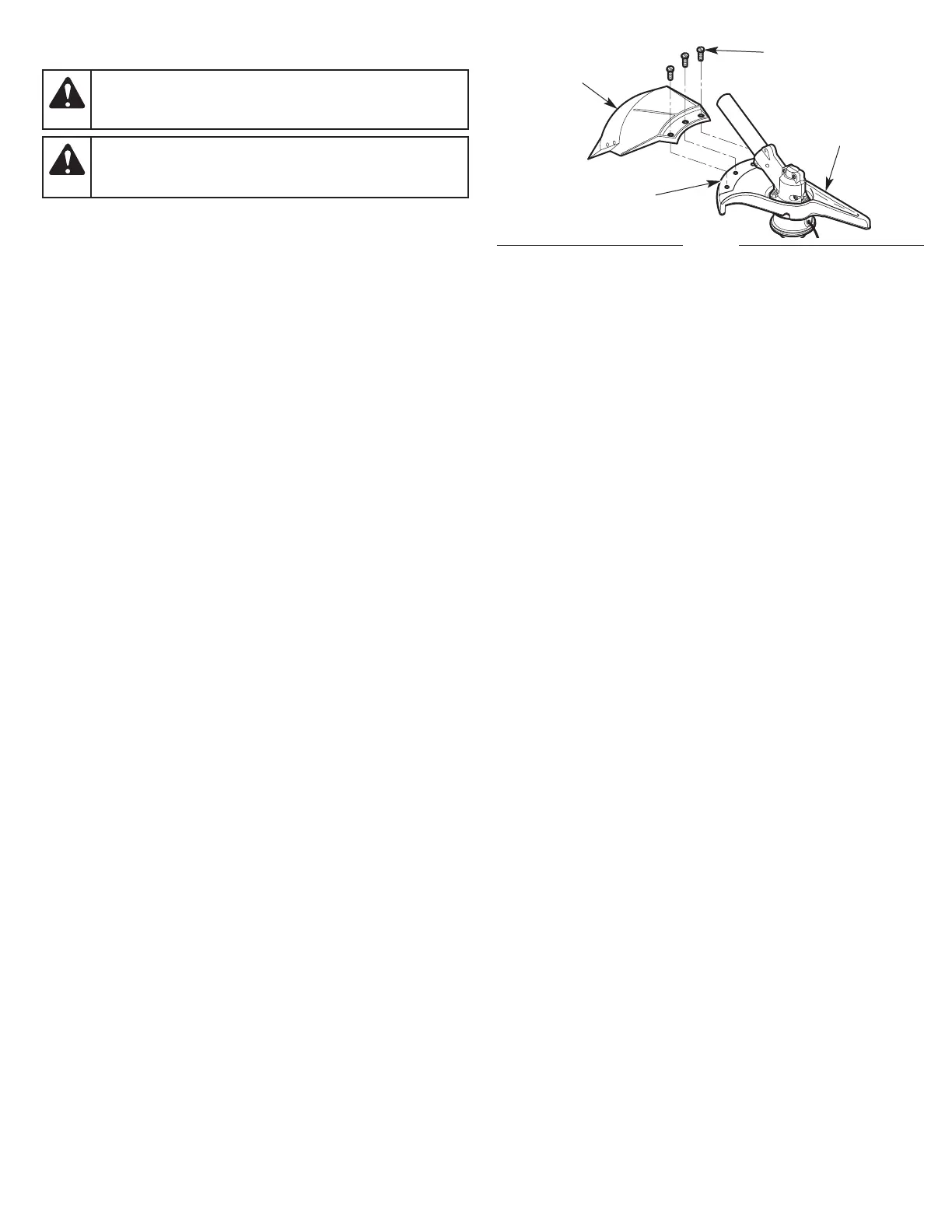

Fig. 18
Brush Blade
Guard
Cutting Head
Shield
Screws (x3)
Shield Mount
WARNING:
To prevent serious personal injury, when
using the unit as a trimmer, never operate the unit without
the cutting head shield in place.
