13
ADJUSTMENTS

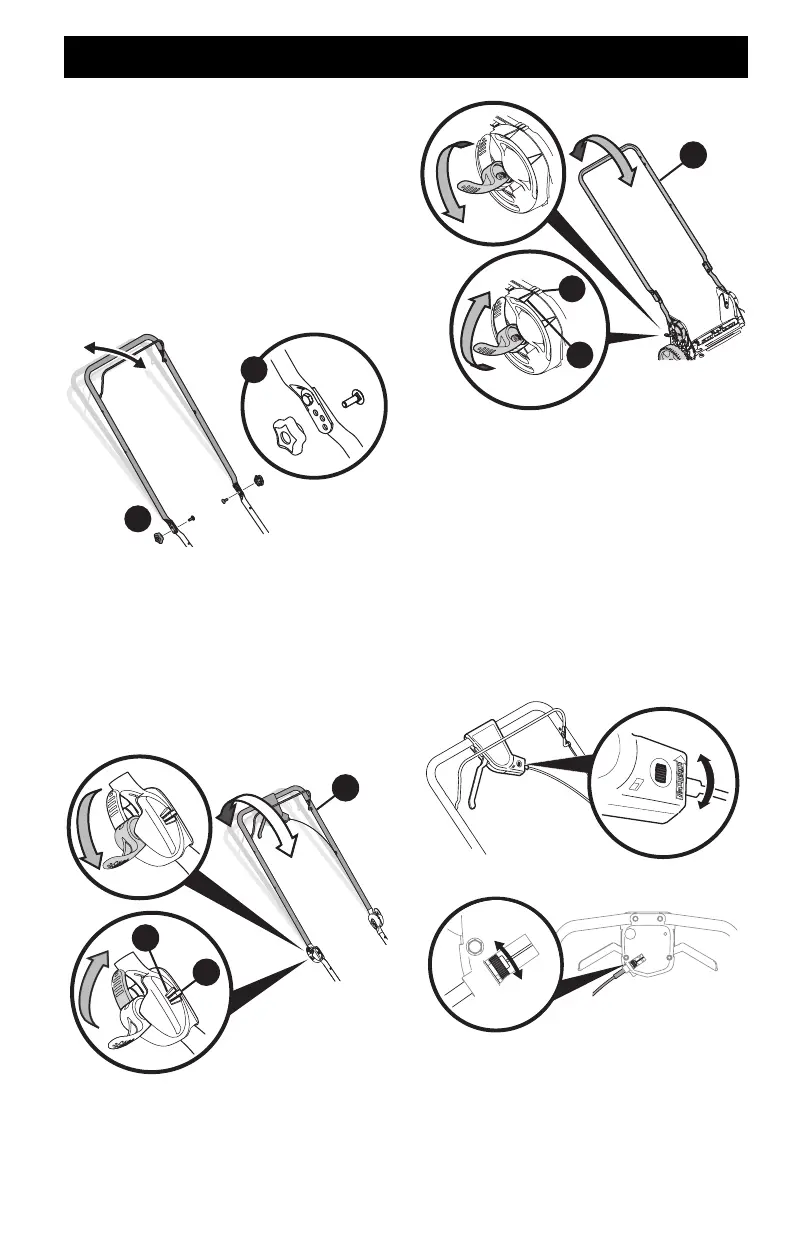

Handle Pitch (If Equipped)
For convenience of operation, you may adjust the pitch of the
handle. Perform one of the following.
PULLOUT AND FOLDING HANDLES
1. Remove wing nuts and carriage bolts from handle
(Figure 25).
2. Position the handle in one of the three positions that is most
comfortable. See Figure 25 inset.
3. Secure into position with wing nuts and carriage bolts
removed in STEP 1.
1
2
Figure 25
EZFOLD OR VERTICAL STORAGE HANDLES
NOTE: For EZ-Fold handles see Figure 26 or for vertical storage
handles see Figure 27.
1. Unlock the two handle release levers. See inset.
2. Move the upper handle (a) to align the position indicator (b)
with the most comfortable of the three handle positions (c).
3. Lock the two handle release levers. See inset.
Unlock
Lock
c
b
a
Figure 26
c
b
Lock
Unlock
a
Figure 27
Drive Control Adjustment
SINGLE LEVER AND DUAL LEVER DRIVE CONTROLS
IF EQUIPPED
If equipped, there is an adjustment wheel located in the drive
control handle housing that is used to tighten or loosen the drive
belt. You will need to adjust the drive control if the mower does
not propel itself with the drive control engaged or if the mower’s
wheels hesitate with the drive control engaged. If either of these
conditions occur, rotate adjustment wheel clockwise to tighten
cable or counterclockwise to loosen the cable. See Figure 28 for
location on Single Lever Drive Control and Figure 29 for Dual
Lever Drive Control.
Tighten
Loosen
Figure 28
Tighten
Loosen
Figure 29
