14
ADJUSTMENTS
PREMIUM DRIVE IF EQUIPPED
The drive system consists of pulleys, a belt , and a cable linking
the transmission to the drive handle. As these components wear,
adjustment may be needed. To adjust the drive linkage perform
the following:

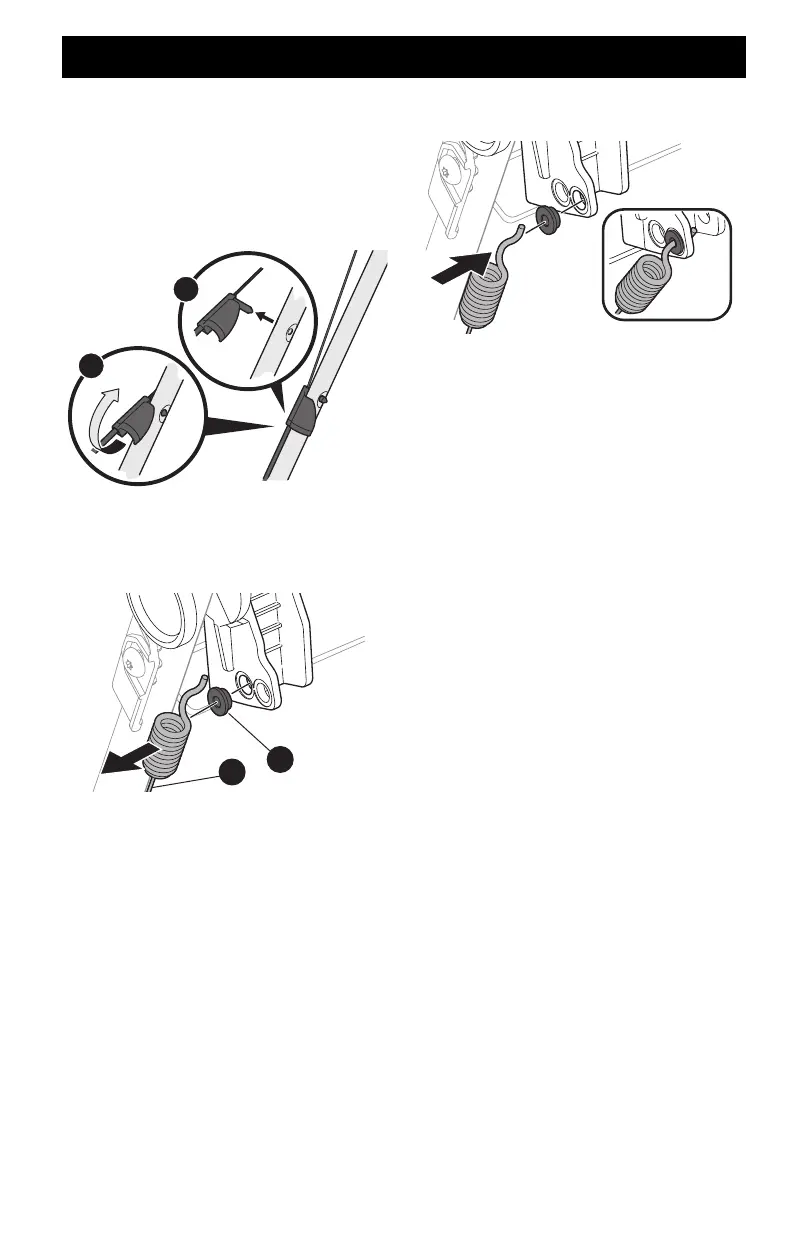

1. Rotate the drive cable fitting located on the left upper handle
upward (Figure 30).
1
2
Figure 30
2. Pull the fitting away from the handle.
3. Unhook the cable (a) and remove the metal bushing (b) from
the plastic drive handle (Figure 31).
a
b
Figure 31
4. Replace bushing in the lower hole and reattach the cable
through the bushing and lower hole in the handle (Figure 32).
Figure 32
5. Reinsert the drive cable fitting into the upper handle and
rotate it downward.
6. Start the mower and check the function of the drive handle.
