Troy-Bilt TB4BV EC - Installing the Vacuum Bag

7

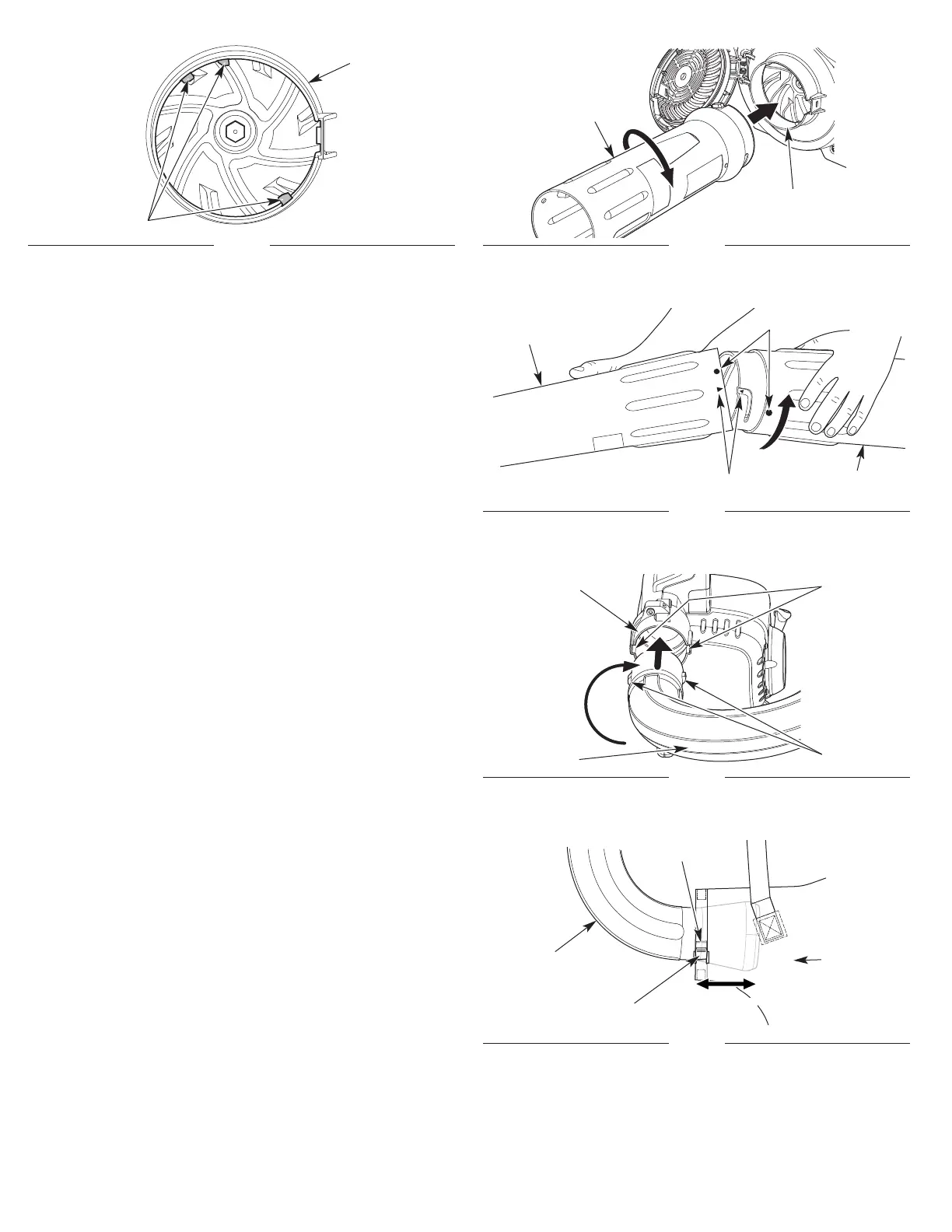

Fig. 5
Tabs
Fig. 6
Impeller Intake
Impeller Intake
Upper
Vacuum Tube
Fig. 7
Upper
Vacuum Tube
Fig. 8
Bumps
Blower Outlet
Slots
Lower
Vacuum Tube
Arrows
Dots
Vacuum
Elbow Tube
Installing the Vacuum Bag
1. Align the bumps on the vacuum elbow tube with the slots on the
blower outlet (Fig. 8). The flared end of the vacuum elbow tube
should point to the right.
2. Insert the vacuum elbow tube into the blower outlet (Fig. 8).
3. Twist the vacuum elbow tube clockwise until it locks into place
(Fig. 8).
4. Insert the flared end of the vacuum elbow tube approximately 4
inches (10 cm) into the vacuum bag (Fig. 9).
5. Pull the cinch strap to tighten the vacuum bag around the
vacuum elbow tube.
NOTE: The cinch strap should be tight enough to prevent the
vacuum elbow tube from slipping out of the vacuum bag, but
loose enough for the vacuum bag to have limited movement
along the vacuum elbow tube.
Fig. 9
Vacuum Bag
4 inches
(10 cm)
Vacuum
Elbow Tube
Cinch Strap
Cinch Buckle
