Troy-Bilt TBPS - Parts List

E15
PARTS LIST

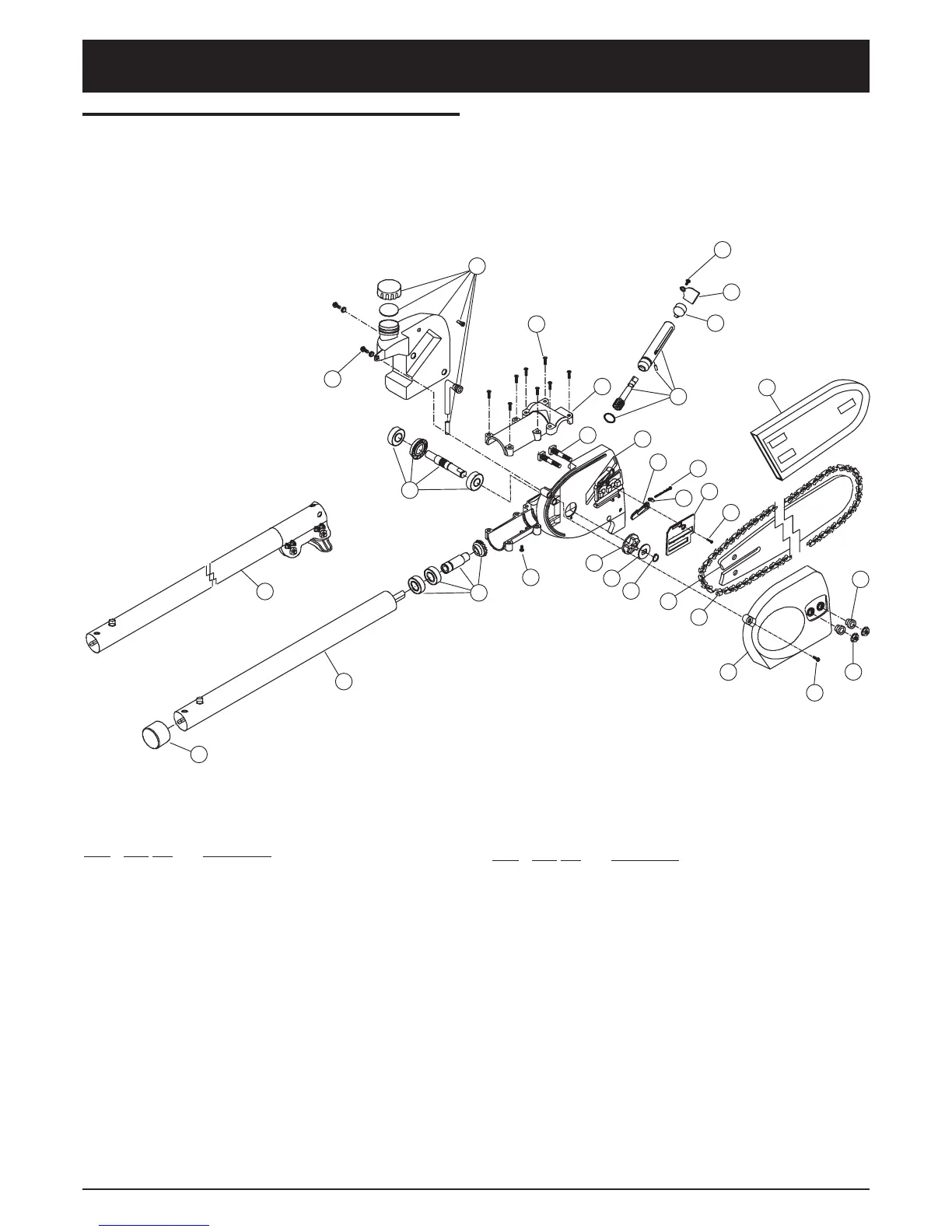

REPLACEMENT PARTS - MODEL TBPS
POLE SAW ADD-ON
Item Part No. Description
1 753-04621 Gearbox
2 753-04622 Screw
3 753-04623 Shaft Assembly
4 753-04624 Spindle Assembly
5 753-04625 Connection Stick Assembly
6 753-04626 Screw
7 753-04627 Case Cover
8 753-04628 Screw
9 753-04629 Sprocket
10 753-04630 Washer
11 753-04631 C Ring
12 753-04632 Oil Pump Assembly
13 753-04633 Rubber Cork
14 753-04634 Fixed Plate
15 753-04635 Screw
Item
Part No. Description
16 753-04636 Oiler Assembly
17 753-04637 Anti-Spillage Pad
18 753-04638 Regulation Screw
19 753-04639 Regulation Cap
20 753-04640 Adjustable Plate
21 753-04641 Screw
22 753-04642 Bar 8”
23 753-04643 Saw Chain
24 753-04644 Guard
25 753-04644 Fixed Ring
26 753-04645 Nut
27 753-04646 Screw
28 753-04647 Covering
29 753-04649 Guard
30 753-04648 Inner Pipe Assembly
1
2
5
28
30
6
8
7
13
14
15
29
25
26
27
24
23
22
21
20
18
19
17
11
10
9
6
3
4
16
12
